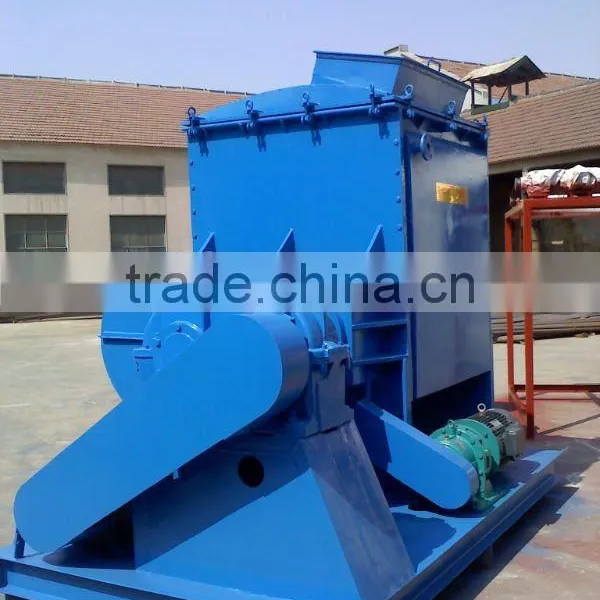

Slurry Sigma Mixer With Z Blade

Slurry Sigma Mixer With Z Blade thumbnail-1
Slurry Sigma Mixer With Z Blade photo-1
US$ 1,800 - 17,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Rubber Kneader
Place of Origin:
Shandong, China
Brand Name:
YD
Contact Supplier Request Quote Chat Now
Laizhou Yuanda Chemical Industry Machinery Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Rubber Kneader
Place of Origin Shandong, China
Brand Name YD
Model Number NH-5-2000

Specifications

slurry sigma mixer with Z blade
sigma mixer
Z blade mixer
screw extruder mixer

slurry sigma mixer with Z bladeslurry sigma mixer with Z bladeslurry sigma mixer with Z bladeslurry sigma mixer with Z bladeslurry sigma mixer with Z bladeslurry sigma mixer with Z blade

:slurry sigma mixer with Z blade We are yuanda chemical machinery factory and specialised in producing chemcial macinery such as the Unsaturated polyester resin equipment SMC SHEET MACHINE kneader machine ,grinding machine,experiencial machine,hot melt glue machines and other chemcial machines and we have dealed with many years in the world market  and enjoy a good reputations in the Eurpopean countries and north America markets and our producing technologys have invited many foreign advanced technologys especially in UK



This is the details of the sigma mixer machine:



this series kneader can knead all kinds of CMC with different viscous and it always used in checmials,plastics,rubbers,ink,carbon element,medicines,food and other areas,and the blade is made by the stainless steel,and it can ensure the purity and the quality of the products.this machine adopts "Z"type dubble mixing,and can help the material react quikly and uniform,

I have make a data excel ,and you can chose it :

Modle Capacity Stirring speed Main motor power Steam heating pressure Electric heating jacket Dimension(mm) Weight
NH-500L 500L 37,21(rpm) 15,/18.5Kw 0.3Mpa 16.2Kw With colling jacket 3000*1000*1500 3000kg
NH-300 300L 37,21(rpm) 7.5, /11KW 0.3Mpa 6Kw With colling jacket 1800*800*1400 1600kg
NH-100 100L 35,22(rpm) 4/ 5.5 0.3Mpaa 4Kw With colling jacket 1645*775*1540 1250kg
NH-40 40L 45,23(rpm) 2.2 0.3Mpa 4Kw With colling jacket 1170*1100*480 560kg
NH-1000 1000L 35,25(rpm) 20/30/37/45 0.3Mpa 25Kw With colling jacket 3450*1300*1600 4500kg
NH-1500 1500L 30,16(rpm) 22/30/37 0.3Mpa 32.4Kw With colling jacket 3600*1420*14800 5800kg
2000L 2000L 45,30(rpm) 45Kw 0.3Mpa Use steam heating With colling jacket 3900*1600*2100 6500kg
NH-5 5L 33,23(rpm) 0.75Kw 03Mpa 1Kw With colling jacket 650*400*705 300kg




If you need this kind of the machine you can contact me ,and i will give you the suitable price for you

Thanks for your kindly inquiry



Ms Anna Miller



Mobile: 0086 15092424957
