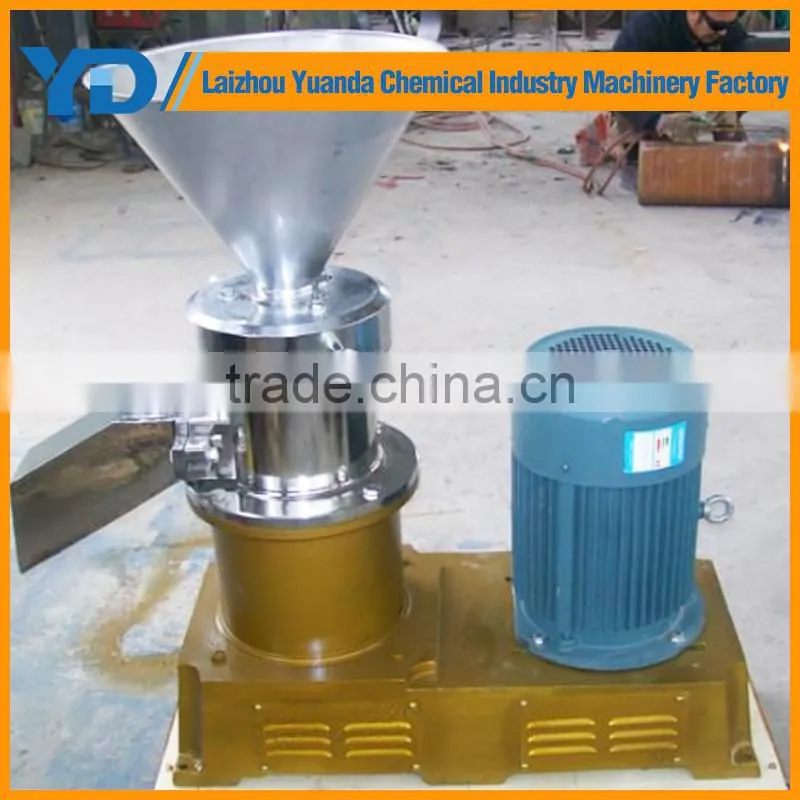

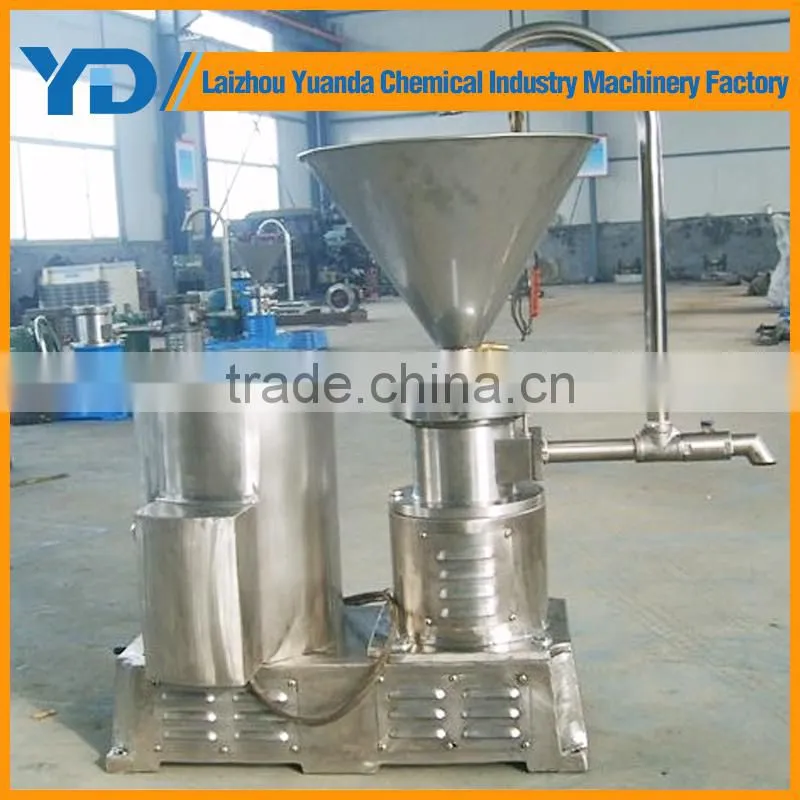

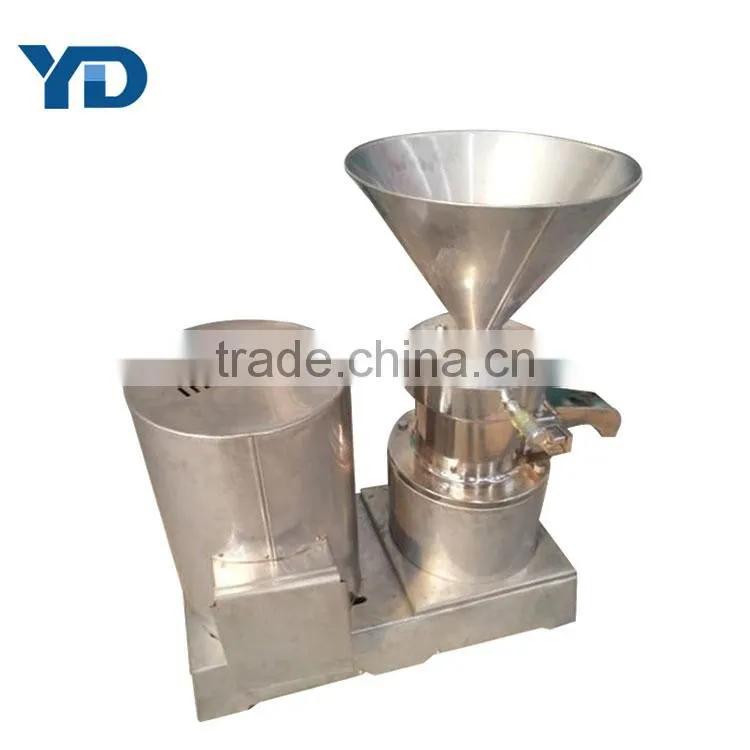

Latest Style food chilli grinding machine
Through the high speed operation relative motion between different shape rotor and stator ,the processed material under the self-weight, pressure and centrifugal force, through the strong shear force, friction, collision force, high frequency, vibration, the material is effective dispersed, crushed, emulsified, and mixed, then can get the ideal product.
Features:
1.With adjustable scale ruler to ensure precise production and for ideal fineness.
2.Special water cooling system to help cooling and protect the high speed rotating rotor and stator.
| Model | JM50 | JM-85 | JM-130 | JM-210 | JM240 | ||||
| Material processing fineness(um) | 2-70 | ||||||||
| Electric power(Kw) | 0.75 | 5.5 &7.5 | 7.5& 11 | 22 | 30 | ||||
| flow rate t/h | 0.5-1 | 1--3 | 1--5 | 3-8 | |||||
| Output kg/h | 50-100 | 100—200 | 200—500 | 500-1000 | 800-1500 | ||||
| Depends on different materials | |||||||||
| Unloaded speed | 3000±100 r/min | ||||||||
| Wight Kg | 85 | 150 | 180 | 500 | 650 | ||||
| Material | ntact part be SUS304 or SUS316L, other part be carbon steel | ||||||||
| 2. All made by SUS304 or SUS316L | |||||||||
| Outlet type | 1.square outlet: fit to make semi-fluid products(peanut paste, tahini etc.) | ||||||||
| 2.Cycle grinding outlet:fit fluid materials:paint, soy milk etc. | |||||||||
| Note | 1.Equipped with cooling system | ||||||||
2.Can make peanut butter production line with our roaster, peeling machine and filling machine. | |||||||||
About Delivery time
Q-----What’s the delivery term for making business with us?
A-----Usually we send tne shipments in FOB term.However, the terms of CIF are acceptable which depend on the preference of clients.
About Lead Time
Q------What’s the lead time after placing thr order?
A------Usually it takes about 25~30 days after we received your confirmation.
However, it would depend on our production line schedule(the timing clients place order)and the complication of the item.
About Payment Term
Q------What’s the Payment Term?
A------By T/T in Advance, or Irrevocable L/C as Sight.
