95mm Steel Wire Armoured Power Cable

95mm Steel Wire Armoured Power Cable photo-1

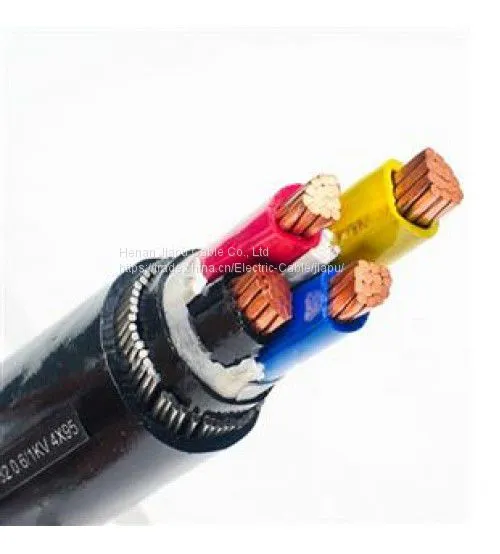

95mm Steel Wire Armoured Power Cable photo-2

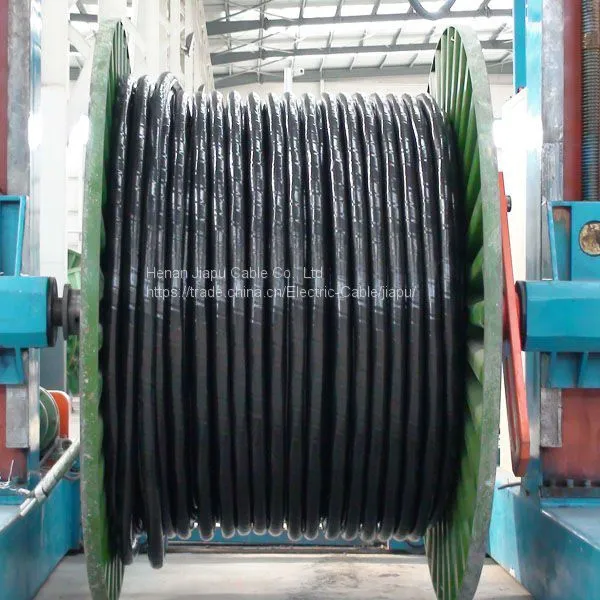

95mm Steel Wire Armoured Power Cable photo-3

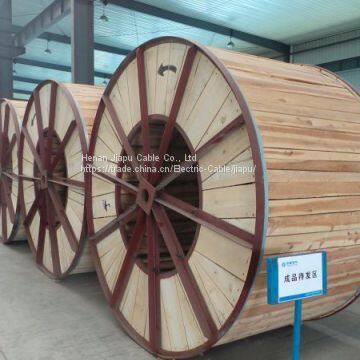

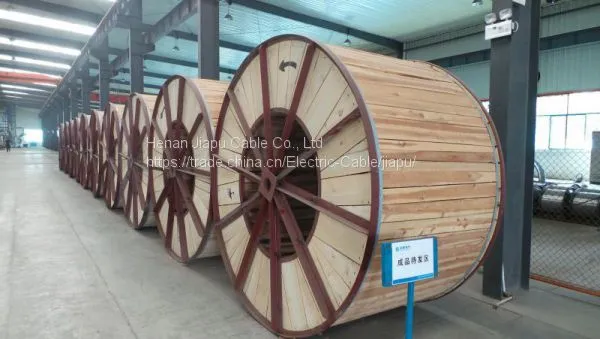

95mm Steel Wire Armoured Power Cable photo-4
Negotiable MOQ: 1 Kilometer (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Jiapu
Place of Origin:
China
Type:
Medium Voltage
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
15 days
Brand Name Jiapu
Place of Origin China
Type Medium Voltage
Application Industrial
Insulation Material XLPE
Jacket PVC
Conductor Material Copper

Steel Wire Armoured Power Cable 95mm 600/1000V

We manufacture kinds of non-armored and armored PVC and XLPE power cables for electricity transmission and distribution. A variety of international standards are available, for example, BS 5467 standards for armored low voltage power cables. We provide a high standard of quality control and manufacturing with our main markets all over the world. Please feel free to send us inquiries for latest prices.


1. Conductor Material: Copper, Aluminum, Aluminum Alloy

2. Conductor Counts (Cores): 1, 2, 3, 4, 5, 3+1, 4+1, 3+2

3. Nominal Sectional Area (mm2 / sq mm): 1.5, 2.5, 4, 6, 10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400, 500, 630, 800

4. Insulation: PVC(Polyvinyl Chloride), XLPE(Cross-Linked Polyethylene), PE (Polyethylene), etc.

5. Sheath: PVC, PE, etc.

6. Armoring: Non-Armored, Galvanized Steel Wire Armored (BS 5467 Standards), Steel Tape Armored, etc.

7. Rated Voltage (KV): 0.6/1, 1/1, 1.8/3, 3/3, 3.6/6, 6/6, 6/10, 8.7/10, 8.7/15, 12/15, 12/20, 18/20, 18/30, 21/35, 26/35

8. Maximum Working Temperature: 70°C / 90°C / 105°C, etc.

9. Features: Flexible, Fire-Resistant, Heat-Resistant, Low Smoke and Fume, Low Smoke Zero Halogen, High Temperature, etc.

10. Insulation Colors: Red, Blue, Brown, White, Black, Yellow, Two Colors, etc.

11. Sheath Color: Black

12. Application: Power Transmission and Distribution. Directly Buried or Laid in Conduit.

Product Tags: 95mm Steel Wire Armoured Power Cable , Steel Wire Armoured Power Cable , 95mm Armoured Power Cable
