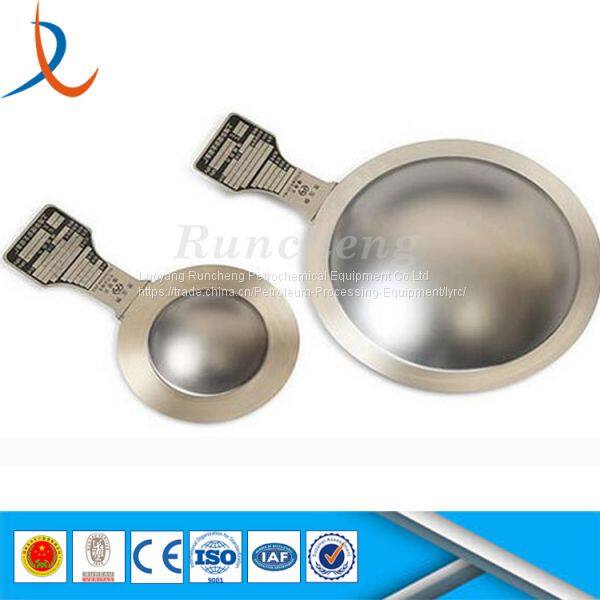

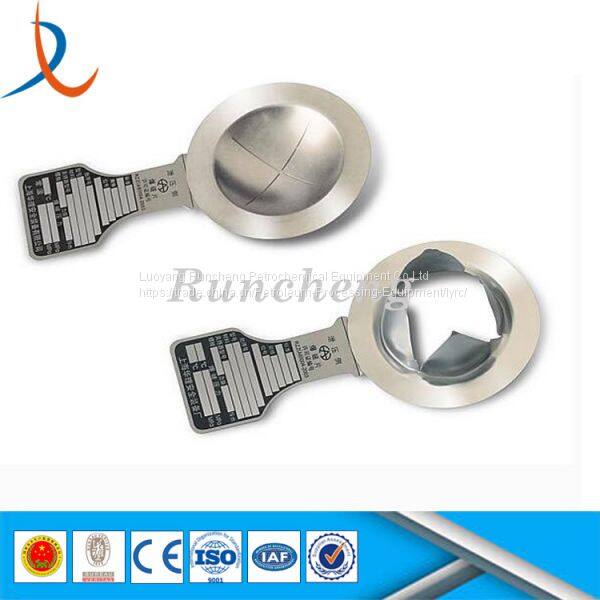

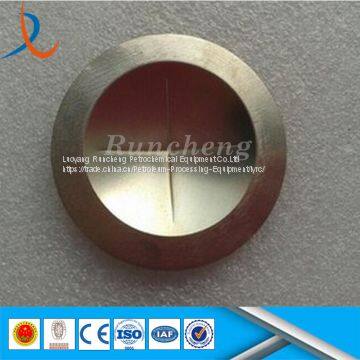

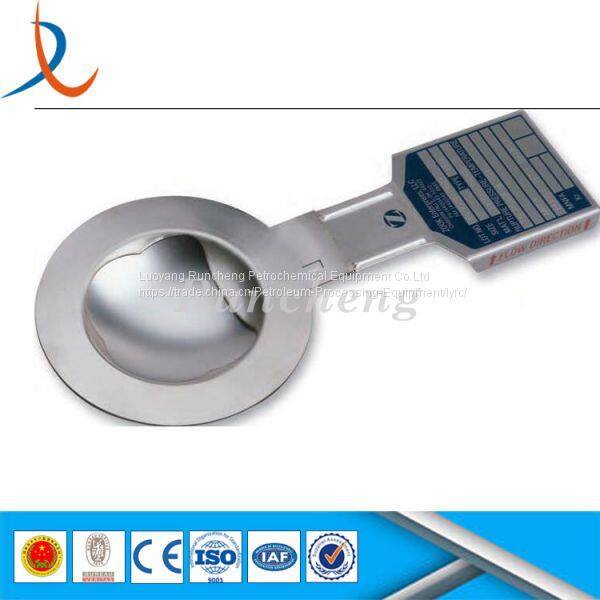

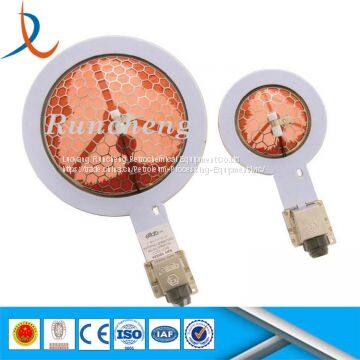

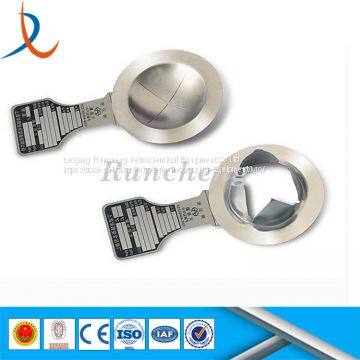

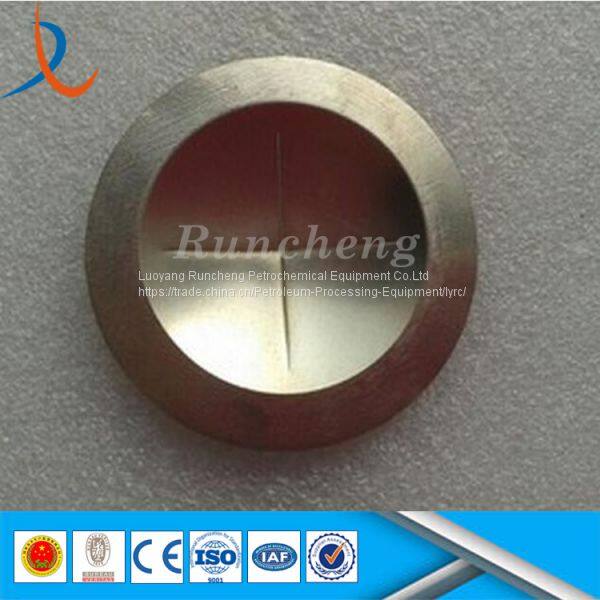

Pressure vessel protection solution burst disc / forward acting disk / advanced rupture disk technology
Rupture disk is a high-precision component commonly used as a protection device from overpressurization. It consists of a thin, circular membrane usually made of metal, plastic, or graphite that is firmly clamped in a disk holder.
The technical parameters about burst disc / forward acting disk / advanced rupture disk :
Specified burst rating psig(bar) |
Manufacturing Range(psi) |
Burst Tolerance |
|
Minus |
Plus |
||
2.5 (0.17)to below 4 (0.28) |
1 |
1 |
* |
4 (0.28) to below 7 (0.28) |
1 |
2 |
|
7 (0.48) to below 11 (0.76) |
1.5 |
2.5 |
|
11 (0.76) to below 15 (1.03) |
2 |
3 |
|
15 (1.03) to below 17 (1.17) |
2 |
3 |
|
17 (1.17) to below 26 (1.79) |
2 |
4 |
±2psi |
26 (1.79) to below 40 (2.76) |
23 |
5 |
(0.14bar) |
40 (2.76) to below 66 (4.55) |
4 |
6 |
|
66 (4.55) to below 101 (6.97) |
5 |
9 |
±5% |
101(6.97) to below 151 (10.41) |
6 |
12 |
|
151(10.41)to below 201 (13.86) |
9 |
16 |
|
201(13.86)to below 351 (24.21) |
12 |
23 |
|
351(24.21)to below 500 (34.48) |
15 |
30 |
|
over 500(34.48) |
3% |
6% |
|
Main features of our forward acting disk / advanced rupture disk technology as below:
1.Forward-acting,tension-loaded design
2.Standard Material:SS/FEP/SS,Seal material have other option
3.Fragment resistant design
4.Operating pressures to 80% of the Disc's marked burst pressure
5.Sizes 15mm thru 1100mm diameters
6.Burst ratings 0.1 to 2000 barg
7.Suitable for liquid, gas or 2-phase flow
8.3-dimensional stainless steel tag is standard
Any question or interest about our pressure vessel protection solution burst disc / forward acting disk / advanced rupture disk technology, please don't hesitate to contact with us. It's our honor to help and support your business.
