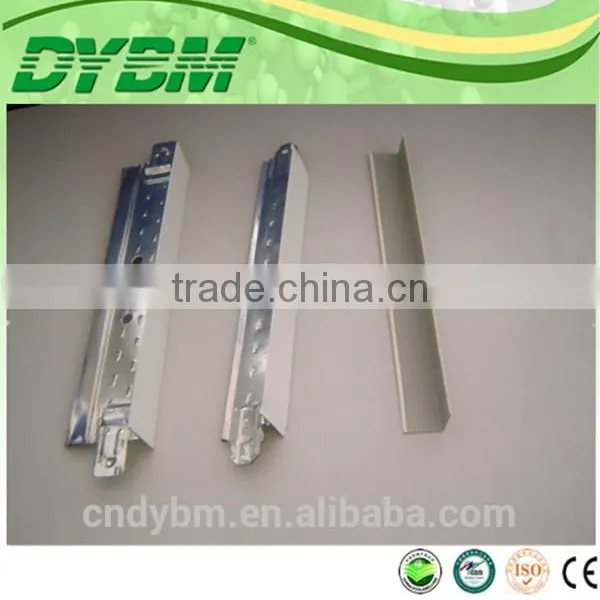

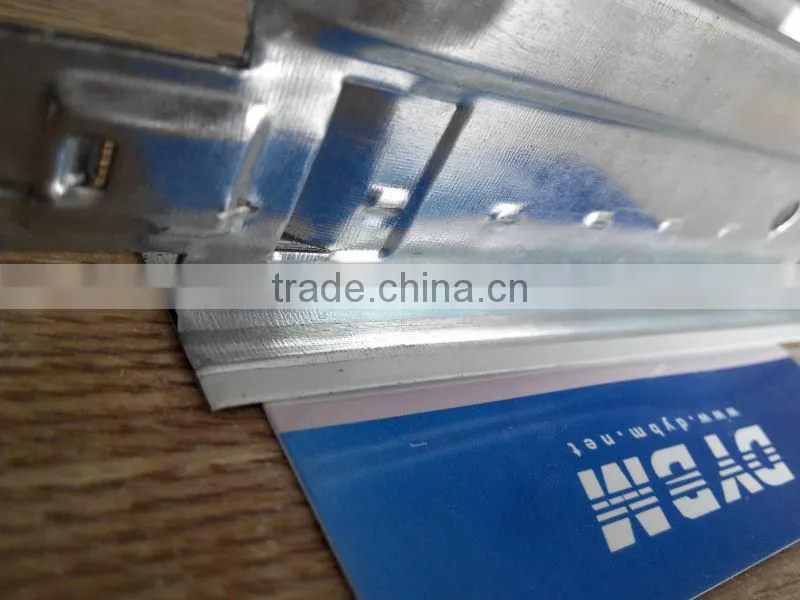

t bar ceiling panels
t bar ceiling features:
1. Includes main tee,cross tee and wall angle.
2. Rotary-stitched, for torsion strength and stability.
3. Unique connection design for easier installation.
4. Accurate grid size for best installation effect.
t bar ceiling size :
Description |
Length(mm) |
width(mm) |
height(mm) |
thickness(mm) |
|
Main tee |
32H |
3600/3660/3750 |
24 |
32 |
0.23-0.32 |
Mid Cross tee |
1200/1220/1250 |
24 |
32 |
0.23-0.32 |
|
Short Cross tee |
600/610/625 |
24 |
32 |
0.23-0.32 |
|
Wall angle |
3000 or 3600 |
22-30 |
22-30 |
0.23-0.51 |
|

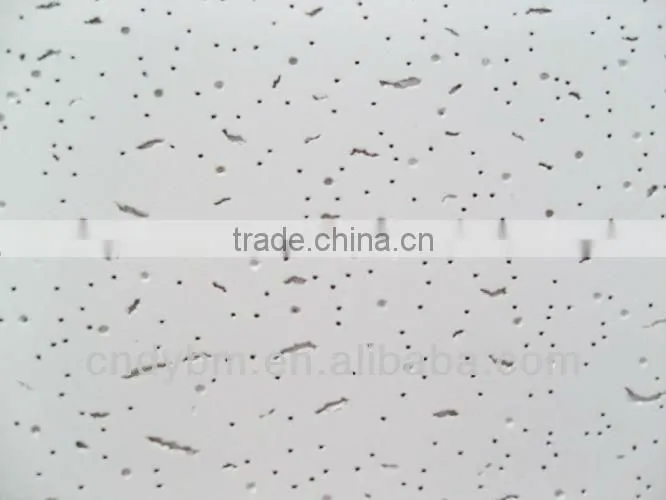

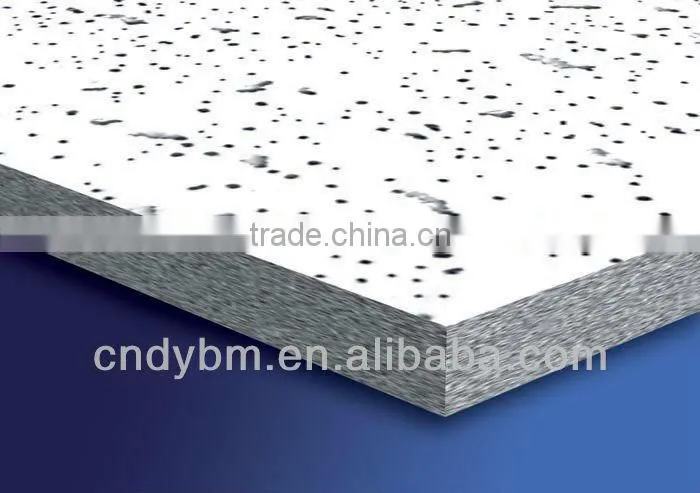

ceiling panels
Ceiling panels material |
Wet Formed mineral fiber |
Ceiling panels surface |
Factory Applied Vinyl Latex Paint |
Noise reduction coefficient |
NRC 0.55 |
Humidity Resistance(RH) |
>=80% |
Light reflectivity |
>=85% |
Fire Performance |
non-combustible,reach class A according to GB8624-1997 |
Moisture resistant |
standard board quality (12mm,14mm) according to JC/T670-2005 |
Environmental protection |
no asbestos,formaldehyde content<0.1mg/L |
Acoustical performance |
comply with the requirements of JC/T670-2005 |
Ceiling panels colour |
white |
Ceiling tiles density |
280-320kgs/m3 |
Ceiling panels size |
300x600mm, 300 x 1200mm, 600x600mm,600x1200mm etc |
Ceiling tiles edge finish |
square edge, tegular edge, adhesive and nails edge, concealed edge, shiplap edge, and liner shiplap edge. |
Ceiling panels thickness |
9mm ,10mm,11mm,12mm, 14mm, 15mm, 16mm,18mm, 20mm etc. |
Ceiling panels feature |
Sound absorbing,Resistance to fire, warm-keeping, energy-saving, heat-insulating |
Ceiling panels pattern |
Pine holes,Little-Stars,LovelyWorms,Sand Surface and other special designs, Also according to your requirement |
