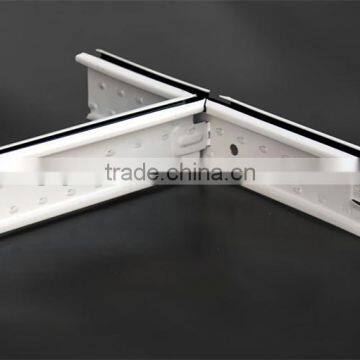

ceiling t bar grid suspension system

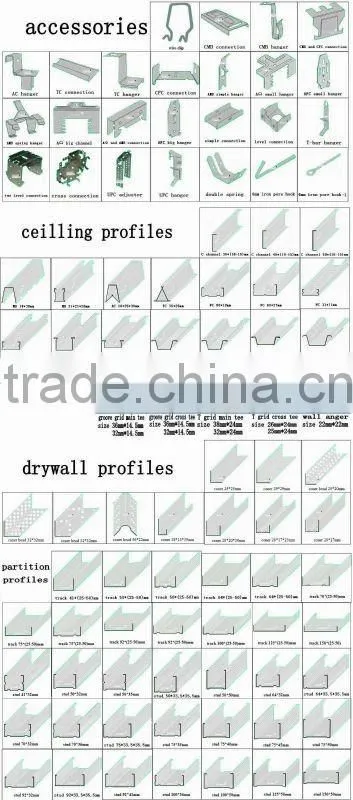

Our major products coverage:
1,STUD & TRACK IN DRYWALL PARTITION AND ITS PARTS/CORNER BEADS & WALL
ANGLE,

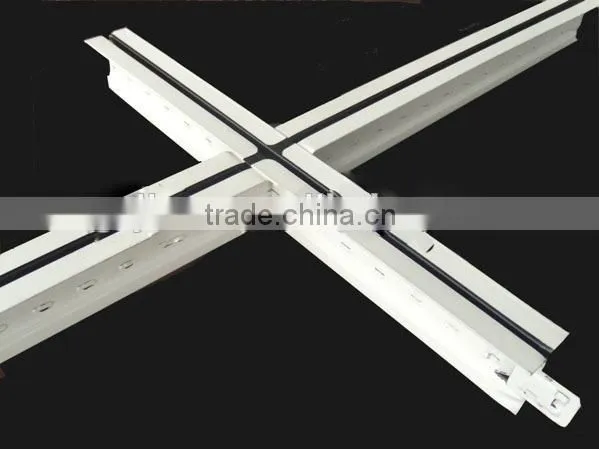

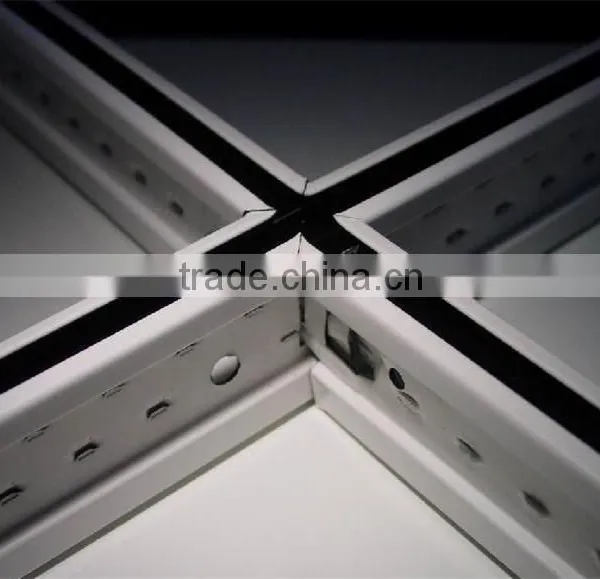

2,CONCEALED T-GRID SYSTEMS:MAIN CHANNEL & FURRING CHANNEL,EXPOSED T-GRID SYSTEM.MAIN TEE & CROSS TEE,ANGLE
3,GYPSUM BOARD,CALCIUM SILICATE BOARD,FIBER CEMENT BOARD,MINERAL WOOL BOARD OR ACOUSTIC BOARDHANGERS,PAPER TAPE,SCREW,ALL THE OTHER ACCESSORIES FOR INTERIOR DECORATION METAL FRAME
4,GALVANIZED STEEL COILS/STRIP COILS
SUSPENSION CEILING SYSTEMS:
Specification
All Australia products wil be made by G550 galvanized sheet with zinc coating 275g/m2
Roof and Ceiling
| Component name | Specification (mm) | Thickness (mm) | Length (mm) |
| Main channel | 25x21 | 0.75 | 3600,4800,6000 |
| Furring channel | 51x38x28 | 0.5 |
2700,3000,3600, 4800,6000 |
| 51x38x16 | |||
| C channel | 36x16 | 0.45 | 3000,3600 |
| Wall angle | 35x16x13 | 0.5 | 3000 |
| 35x28x20 | |||
| Batten | 94x42x40 | 0.55/0.75 | 4800,6000 |
Roof and Ceiling
| Component name | Specificaion (mm) | Thickness (mm) | Length (mm) |
| C section | 75*34*36 | 0.7--1 | 3660--5800 |
| 100*50 | |||
| Batten | 58*35*23 | 0.5--0.8 | 3660-5800 |
| 65*32*26 | |||
| 84*30*32 | |||
| Furring Channel | 30*9 | 0.25-0.3 | 3660 |
| 34*11 |
Ceiling
| Component name | Specification (mm) | Thickness (mm) | Length (mm) |
| Main channel | 38*12 | 0.4--0.8 | 3660 or any other length |
| 37*20 | |||
| Furring channel | 58*34*16 | ||
| 64*32*22 | |||
| 47*17 | |||
| 52*25*15 |
Ceiling
| Component name | Spceification (mm) | Thickness (mm) | Length (mm) |
| Main channel | 38*10--12 | 0.38--0.5 | 3000 |
| Furring channel | 64*32*22 | ||
| 70*35*22 | |||
| 80*48*22 | 0.7 | 4000 |
Ceiling
| Component name | Specification (mm) | Thickness (mm) | Length (mm) |
| Furring channel | 60*27 | 0.5--0.7 | 3000 |
| Wall angle / Track | 28*27 | 0.5--0.7 | 3000 |
Roof and Ceiling
| Component name | Specification (mm) | Thickness (mm) | Length (mm) |
| C sectionC section | 75x34x36 | 0.7--1.5 | 5800 |
| 100x50x50 | |||
| BattenBatten | 64x24x24 | 0.4--0.6 | 5800 |
| 65x32x26 | |||
| Furring channel / C-line | 35x12 |
0.3--0.5 | 3960 |
| Main channel | 18x28 | 0.5--0.8 | 3050 |
| Furring channel | 50x17 | 0.4-0.5 |
Roof and Ceiling
| Component name | Specification (mm) | Thickness (mm) | Length (mm) |
| C section | 75x34x36 | 0.7-1.5 | 6000 |
| 100x50x50 | |||
| Batten | 65x25x26.5 | 0.4-0.6 | |
| 65x32x26 | |||
| Furring channel / C-line | 35x12 | 0.3-0.5 | 4000 |
Roof and Ceiling
| Component name | Specification (mm) | Thickness (mm) | Length (mm) |
| C section | 100*50 | 0.7--1.5 | 3000 |
| 150*50 | |||
| Main channel | 38*12 | 0.5--0.8 | 3000 |
| Furring channel | 50*19 | 0.4--0.5 | 3000 |
GOODS LOADING:
CERTIFICATE:
Guangzhou Jianli Newtype Partition Co., Ltd.
TEL: +86-20-8746-8918
FAX: +86-20-8746-9339
B402-B403, 8 Kesheng Road, Guangzhou Civilian Science& Technology Park, 1633 Beitai Rd., Baiyun Dist., Guangzhou, Guangdong, China (Mainland)
Website:
Contact :william shawn
whats app:+86 159 1866 5997
