Anko Industrial Mixing Making Commercial Mini Spring Roll Machine
- 100 Set / Sets per Month
- Taiwan
- T/T
You May Like
-
Anko Industrial Frozen Spring Roll Wrapper Making Machine
-
Anko Commercial Big Scale Hot Sale Spring Roll Sheet Making Machine
-
Anko Scale Mixing Making Commercial Automatic Spring Roll Making Machine
-
Frozen processor making filling forming food machine
-
Anko Industrial Mixing Making Commercial Vietnamese Spring Roll Machine
-
Anko Industrial Mixing Making Commercial Frozen Vegetable Spring Roll Maker
Product Details
| Condition | New | Type | Other, Spring roll | |
| Production Capacity | 2400 pcs/hr | Place of Origin | Taiwan, China | |
| Brand Name | ANKO | Model Number | SR-24 | |
| Voltage | 220/380/415/440V | Power(W) | 220/380/415/440V,50/60Hz 3Phase, 38kw | |
| Dimension(L*W*H) | 7500 X 1300 X 2200 mm | Weight | 1550 kg | |
| Certification | CE | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
*Main frame with baking drum, batter transferring system (Gear pump) and cooling system*Cooling conveyor
*Rotary cutter

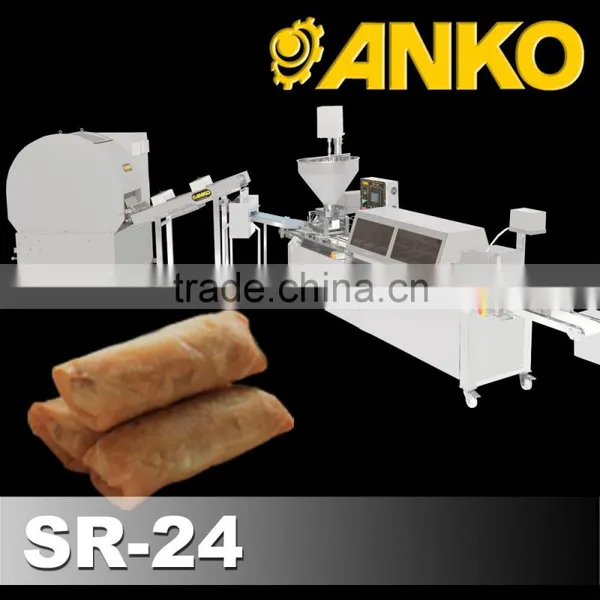

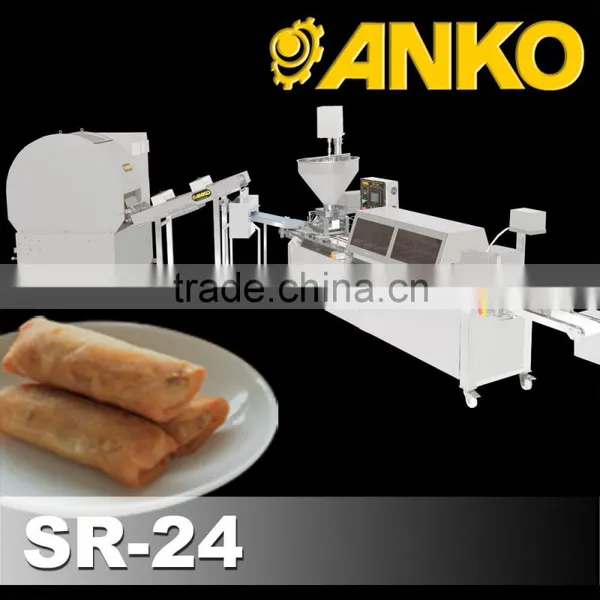

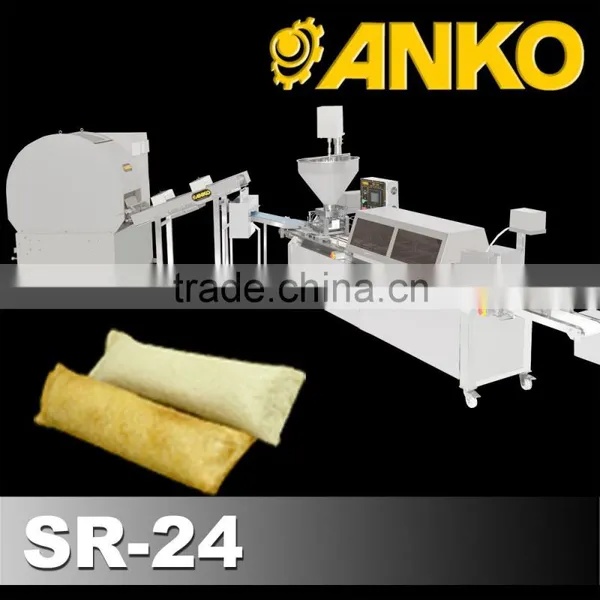

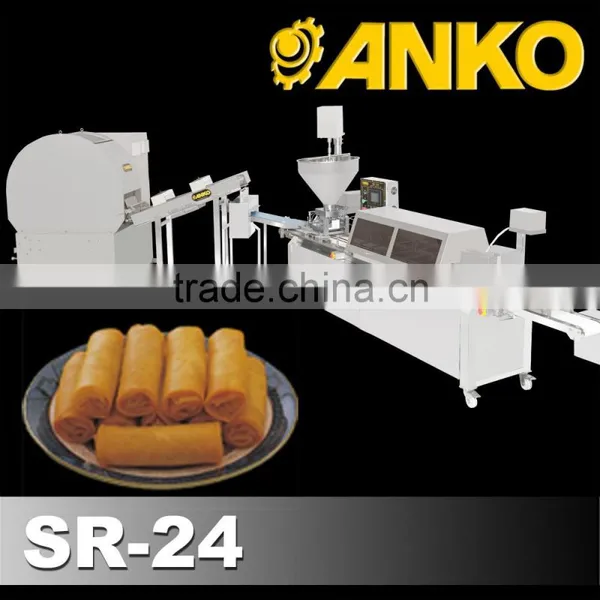

Anko Industrial Mixing Making Commercial Mini Spring Roll Machine
SR-24 is equipped with special folding & rolling device, to produce spring roll like handmade. SR-24 provides high production capacity and adapts to your needs.
- Unique imitation of manually wrapping process gives fulfilled firm body to every spring roll.
- After frying, the crispy spring roll will not carry much oil residue on its both ends.
New special depositing device can apply with different fillings as below:
- Pure vegetable filling—after cutting, processing and cooking, the max size of leaf vegetable can be up
to20X20mm , while root vegetable can be up to 5-8mm cube. Simply pour the vegetable into the depositor,
there’s no need for extra dehydration process, our special depositor has a unique filter device which can
extract excessive liquid in filling. The vegetable fiber texture bite will be majorly kept through our new
depositing design. - Filling of mixed vegetable and meat—the max size of diced meat can be up to 10mm cube, while the max
meat to vegetable ratio is1(meat):2(vegetable). - Pure meat filling—diced meat can be up to 10mm cube, the popular stir fried loose beef filling in Gulf
countries can be deposited and wrapped hassle free. - Filling of mixing bean sprout, meat and vegetable,while the max ratio is 2(bean sprout):1(beef).
This type of filling is especially popular in Holland.
- Pure vegetable filling—after cutting, processing and cooking, the max size of leaf vegetable can be up
Specifications
| Length | 7500 mm |
| Width | 1300 mm |
| Height | 2200 mm |
| Electricity | 220/380/415/440V,50/60Hz 3Phase, 38kw |
| Capacity | 2400pcs/hr |
| Size of Spring roll | Length:100mm Diameter:25~30mm, weight of spring roll:40~50g |
Pneumatic Air Consumption | 400L/min(@6kg/cm3) |
| Country | Patent no. |
| Taiwan | No.I391097 |
| Taiwan | No.M457429 |
| US Patent | No.8,550,228 |
| US Patent | No.8,505,445 |
| US Patent | No.7,963,216 |
| China Patent | No. ZL200620148890.1 |
