Features:
Automatic MAP tray sealer is suitable for modified atmosphere packaging of all kinds of foods such as cold fresh products, cooked products, moon-cake, pastry, melon and fruit, fast food and vegetables.
The machine can help keep the food fresh for longer time, substitute the air inside the tray with oxygen, carbon dioxide and nitrogen, selled in supermarket.

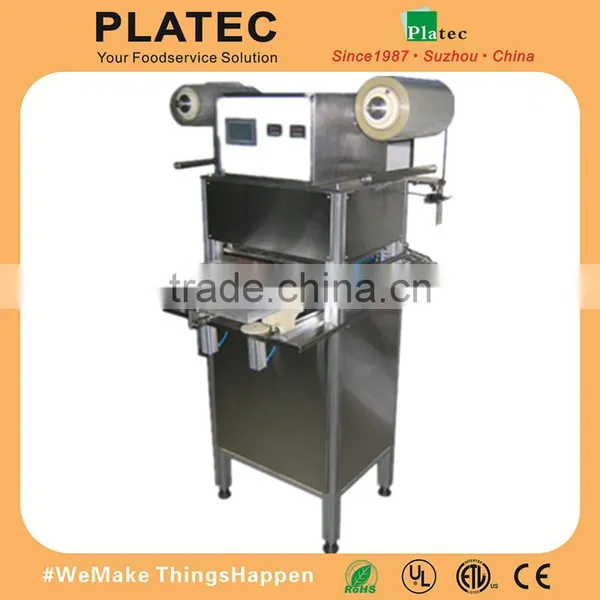

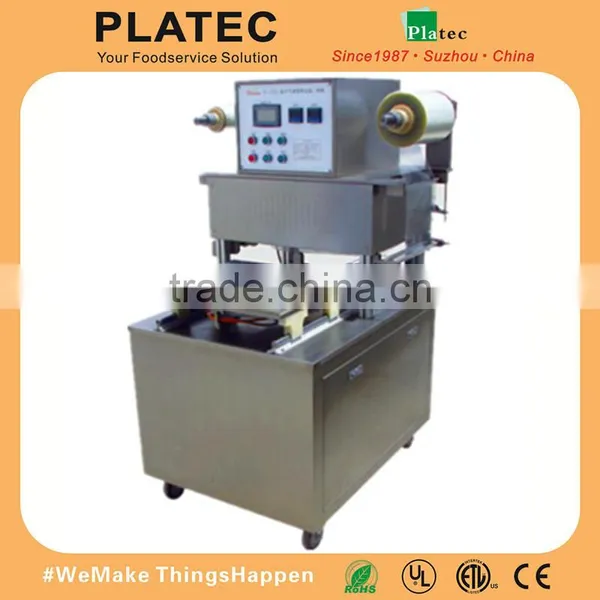

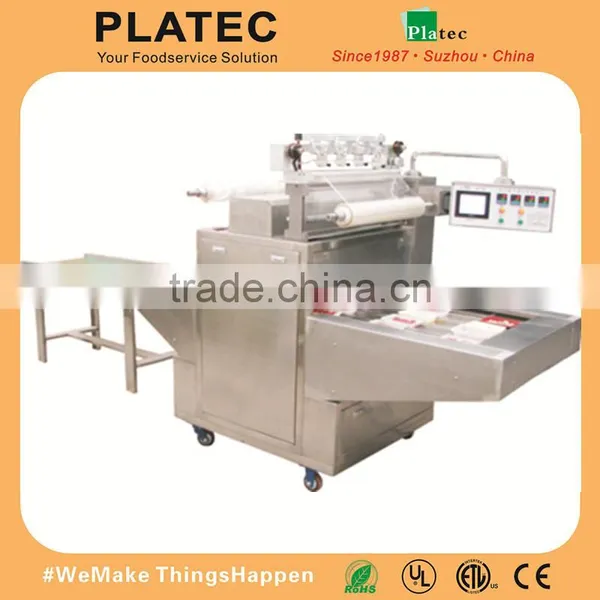

We supply serious of MAP tray sealer machine, including MV-280/350/380/550/680/750, MV 280 and MV-350 are semi-automatic, while MV-380/550/680/750 are full-automatic.
working Principle
1.Using electric, gas, machine control, the programmable logic controller with touch screen to realize manmachine interface dialogue, each part of the action and control parameters can be set, modified. Control is convenient and reliable, low failure rate.
2.Will have to fill in the packaging of goods into the next mold cavity after the packaging process is automatically completed: vacuum, inflatable - hot press sealing - cutting - packaging products.
3.The main components of the frame are made of stainless steel, in line with food hygiene requirements.
4.Compact structure, small area, easy to operate.
5.The shape of the mold can be selected by the user to configure the box shaped.
Technical specification of tray sealing machine:
Model | MAV-380 | MAV-550 | MDS-580 | MAV-680 | MAV-750 |
Mould specification | 380×320×60 | 550×320×60 | 580×320×60 | 680×320×100 | 750×320×100 |
Packing speed (boxes/h) | 800~1200 | 1200~1800 | 2000~3000 | ||
Rate of gas exchanger | ≥99.5% | ≥99.5% | ≥99.5% | ≥99.5% | |
Number of gas mixing | 3 | 3 | 3 | 3 | |
Work pressure(Mpa) | 0.7~0.8 | 0.7~0.8 | 0.7~0.8 | 0.7~0.8 | |
Power(kw) | 1.5 | 2 | 2.5 | 3 | |
Power source | AC220/50Hz | ||||
Machine dimension(mm) | 1760×860×1800 | 1760×1020×1800 | 2200×1180×1800 | 2200x1280x1800 | |
Machine weight(kg) | 500 | 600 | 960 | 970 | |
Main configuration of the equipments:
No | Name | Brand |
1 | Programme control | PLC, Human-machine Interface(HMI), Japan Panasonic |
2 | Pneumatic parts | Taiwan AIRTC |
3 | photoelectric tracking | Japan, Omron |
4 | Outer | SUS304 |
5 | Mould | Stainless steel and Hard Alloy |
6 | Motor | Stepper motor |
All the machines have CE certificates

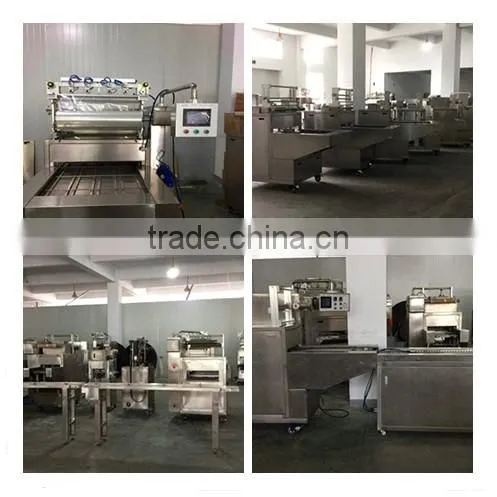

pictures of our machines in stock

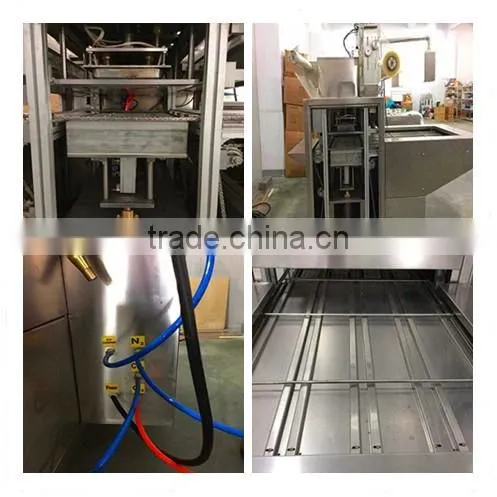

pictures of the details of the machine
Tray samples:
for more discussion and communication, please feel free to contact Emily
Emily
phone: +86 13913127719
Skype: emily.zhao0706
