Help CenterFull Automatic Plastic Bowl Sealing Machine With MAP Function
Related Products
Features OF plastic bowl sealing machine :
MAV-680 bowl sealing machine is suitable for modified atmosphere packaging of all kinds of foods such as cold fresh products, cooked products, moon-cake, pastry, melon and fruit, fast food and vegetables.
Technical parameter plastic bowl sealing machine :
Model | MAV-680 |
Mould specification | 680 x 320 x 100 mm |
Packing speed (boxes/h) | 2000-3000 boxes/h |
Rate of gas exchanger | ≥99.5% |
Number of gas mixing | ≤3 |
Work pressure(Mpa) | 0.6~0.8 |
Power(kw) | 2 |
Power source | AC220/50Hz |
Machine dimension(mm) | 2200 x 1180 x1800 mm |
Machine weight(kg) | 960kg |
Working Principle
1.Using electric, gas, machine control, the programmable logic controller with touch screen to realize man-machine interface dialogue, each part of the action and control parameters can be set, modified. Control is convenient and reliable, low failure rate.
2.will have to fill in the packaging of goods into the next mold cavity after the packaging process is automatically completed: vacuum, inflatable - hot press sealing - cutting - packaging products.
3.the main components of the frame are made of stainless steel, in line with food hygiene requirements.
pact structure, small area, easy to operate.
5. the shape of the mold can be selected by the user to configure the box shaped
Main configuration of the equipments:
No | Name | Brand |
1 | Programme control | PLC, Human-machine Interface(HMI), Japan Panasonic |
2 | Pneumatic parts | Taiwan AIRTC |
3 | photoelectric tracking | Japan, Omron |
4 | Outer | SUS304 |
5 | Mould | Stainless steel and Hard Alloy |
6 | Motor | Stepper motor |
Remark: All the machines have CE certificate.

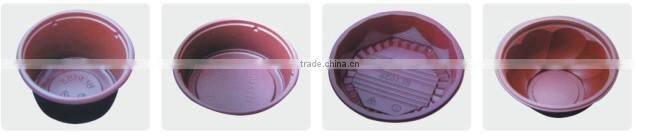

Packing samples BY plastic bowl sealing machine :
