Specifications
bubble gum production line from mixer to packing machine ,can ensure the large output and high quality.
HTL-D808 bubble gum production line
Pictures for every machine:

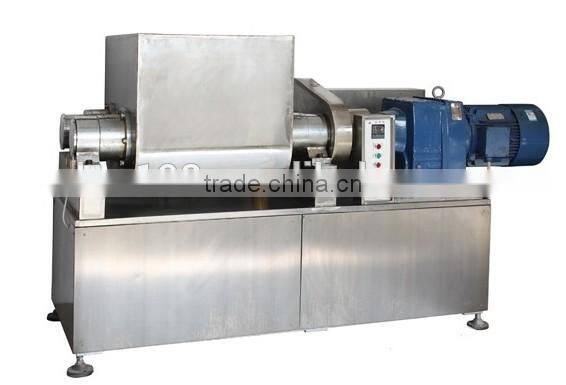

1.bubble gum mixer
Function:
The equipment is used for mixing the raw materials, the parts that contact candy is made of stainless steel. The frame is made of normal steel and angle iron, rectangle tube with painting.
Technical parameter:
| Capacity | 200 L |
| Blending steam pressure | 0.3 MPa |
| Heating power | 10 KW |
| Fast slurry speeding | :42RPM |
| Slow slurry speeding | 27RPM |
| Main motor powder | 18.2KW |
| Mixing power | 1.5KW |
| Weight | 1000KG |
| Dimension | 2350×880×1200mm |

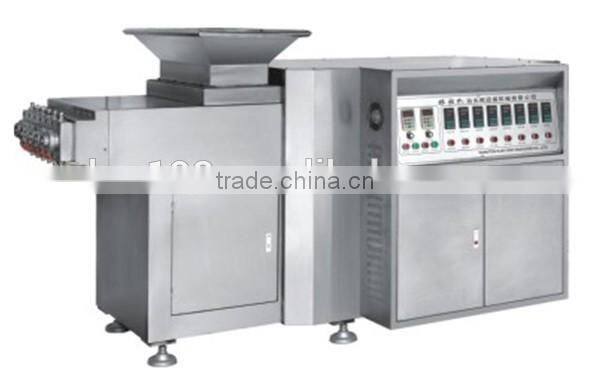

2.extruder
Characteristics:
Extruder with multiple different shapes, it can make double colors, combining forms and filling jam candy .etc.
Application:
This extruder is suit for producing bubble gum, chewing gum, milk candy, sugus candy and so on.
Technical parameter:
| Capacity | 250~300 kg/h |
| Power | 10.5 KW |
| Screw quantity | 2 |
| Screw speed | 0-30 rpm/min |
| Water consumption | 300 L/h |
| Weight | 2500 kg |
| Voltage | 380V ,3 phases, 50Hz |
| Dimension | 2000×1400×1500 mm |

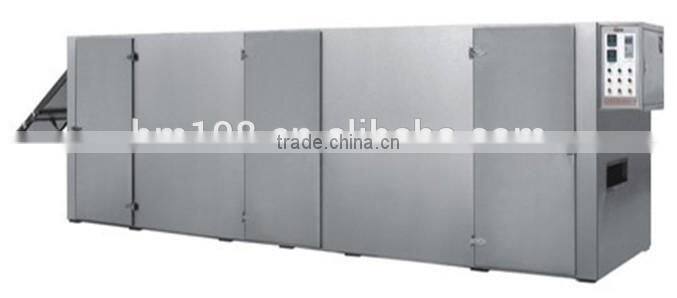

oling tunnel
Technical parameter:
| Overall power | 9.2kw |
| Refrigeration compressor | 10HP(water cooling)(USA Brand Copeland) |
| Standard cooling capacity | 15000Kcal/h |
| Evaporation area | 80 square meter |
| Cooling method | Enclosed circulation by centrifugal fan |
| Stay time in tunnel | 18~54min |
| Tunnel inlet temp | 5oC~15 oC |
| Tunnel outlet temp | 0oC~10 oC |
| Power supply | 415v, 50Hz ,3phase |
| Production capacity | 300kg/h |
| Net weight | 4500kg |
| Outside dimension | 9000*1600*2000mm |

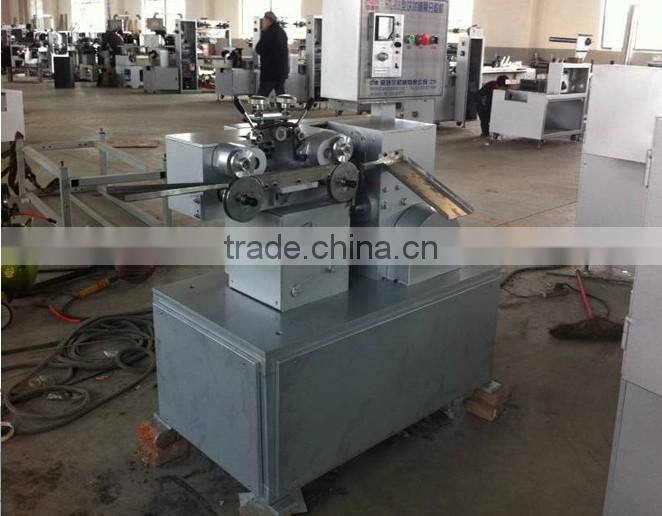

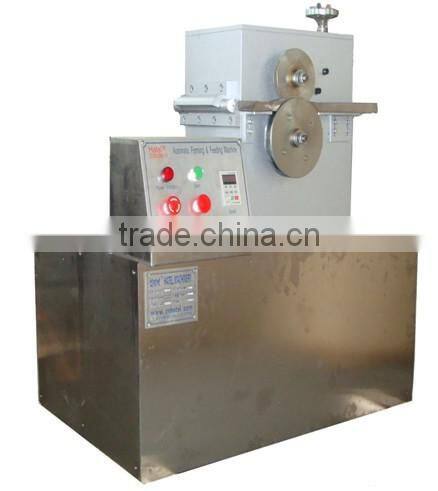

4.shaper
Application:
For transporting the sugar from the cooling tunnel leveling and leveling of the strip, the machine is stainless steel.
| Voltage | 380V |
| Power | 0.75kw |
| Dimensions | 1000*750*1180mm |

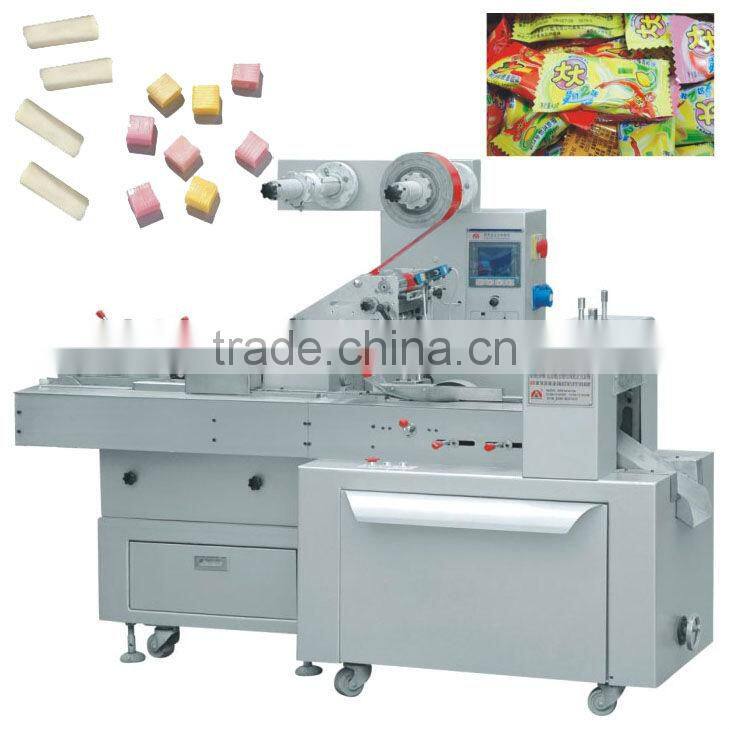

5.D808 cutting and packing machine
Characteristics
1. Automation in production processing, high effciency and sanitation
2. Computer program control, large touch screen, easy parameters setup
3. Servo motor non-stop compensation, one step bag length setting, no rejects, saving in rewind film and time
4. Compact structure desigh, stable in function and running, easy operation
Main technical parameter:
| Packing speed | 200~500 pcs/min |
| Packing shaping | Square ,Rectangular, Cylinder |
| Packing specifications(L*W*H)Length | 20-120mm |
| Width | 12-20(φ8-φ13)mm |
| Heigth | 6-12mm |
Total power |
4.2kw |
Voltage |
380V/50HZ |
Weight |
1080kg |
| Dimenssion(mm) | 2100*950*1500mm |
Pictures for products:
Ξwelcome to visit our factory Ξ
Our company:
Certificate:
Our company has many exhibitions in China and overseas:
Our boss met foreign customers in foreign countries:
Export:
It's our great honor to cooperate with you and offer our best service!!
