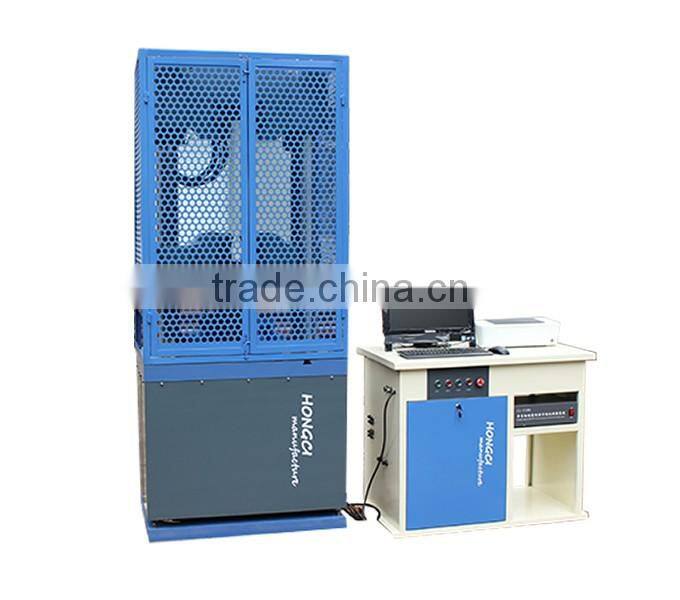

Microcomputer control lab testing equipments, tensile test equipment
Items | Technical index | |||
The biggest test force | 1000KN | 600KN | 300KN | 100KN |
The load error | Plus or minus 1% | |||
Working voltage | 380 v + / - 10% | |||
The maximum distance between tensile jaw | 600mm | 640mm | 480mm | 550mm |
The specimen clamping thickness | 0-40mm | 0-30mm | 0-15mm | 0-12mm |
Sample clamping diameter circle | Φ 20-60 mm | Φ12-40 mm | Φ 10-32mm | Φ 6-20mm |
The oil pump motor power | 1.5kw | |||
This product meets the standard: GB/T228-2002(metallic materials-tensile testing at ambient temperature)
It application to metallic materials tensile test at room temperature, for metal, nonmetal composites tensile, compression, bending, shear test, etc.
Adopts four-column frame design, the structure is more stable, and selects the high precision pressure sensors, high precision measurement data
Software features:
1. Equipped with a Windows XP computer installation, installation V1.0 universal testing machine control system application software
2. The software integrates data acquisition automatic control and data management
3. Can record real-time load time, deformation, displacement time, load elongation, elongation stress, stress and elongation test curve
4. Can switch at any time to observe and adjust size, real-time sampling at a high speed
5. Automatic judgment type, upper and lower yield point and Rp0.2, Rt0.5, such as mechanical performance, automatic record keeping test data and test curve
6. Test data using database management mode, can view real-time database records, test curve drawing, after change the record, to analysis feature points
7. Human-computer interaction interface is concise interface, the results of a complete set of intuitive, stable operation, etc
Similar Products
| | |
Our Catalogue
| Revolving drum | Pelletizer | Lime testing equipment | Drying Equipment |
| Crushing Equipment | Sampling and Sample Preparation Equipment | Sieving Equipment | Iron Ores Performance Testing Equipments |
| Coke, Coal, Carbon Testing Equipment | Steel Product Testing Equipment | Accessories |
If you have any interest in them, please contact us.
click here go to homepage
We have got ISO certificate for our main product to guarantee equipments quality, and we have a total of 34 national patents, including 5 invention patents, 28 utility model patents, 1 design patents
1.Shangyu Hongxing machinery equipment manufacturing Co.,Ltd,with more than 20 years history, we are one of the leading professional manufacturer of coal, coke, iron ore, steel testing equipment in China. We have got ISO certificate for our main product to guarantee equipments quality.
2.Our main products includes: iron ore testing equipment, coke testing equipment, steel testing equipment, drying equipment, crushing equipment , sampling and preparing equipment etc.
3.We have our own r&d team, according to the latest standards, through our own development software, realize the automation of equipment and computer control, to improve test efficiency and reduce human error.
4.Our advantages are providing professional testing process solution, complete set equipments and after-sale service for lab testing.
5.We are the iron ore and direct reduced iron standardization technical committee member units in China. Also, the national coal standardization technology committee member units in China.
6.main market is in Africa, southeast Asia, Asia, Middle East, etc.
We sincerely provide below services:
-Lab project processing consulting
-Do testing for coke, iron ore, steel processing in laboratory
-OEM is acceptable, Products can be customized according to customer requirements
-Help you to solve the problems during the equipment operation.
-Spare parts provided
-Dispatching engineer overseas guidance for equipments installation, testing equipments, training workers.
