Measuring equipment Load Reducibility tester, for Iron Ore measuring instrument
Reducing pipe | It is in the double-layer wall structure; mobile orifice plate is installed in the reducing pipe to bear the specimen and balance the gas; it can resist a high temperature of 1050℃--besides, it is able to resist against oxidization, reduction, corrosion and deformation.
|
Overall dimension | The inner diameter of inner reducing pipe is 125mm±1mm; the orifice plate is 10mm in thickness. |
Load unit | It is able to evenly impose a total static pressure of 50kPa±2kPa on the specimen. |
Surveying unit of gas differential pressure | The resolution is 0.01 kPa.
|
Height surveying unit | The resolution is 0.1mm. |
Heating furnace | It is able to maintain a constant temperature at 1050℃±10℃.
|
Scale | The electronic scale with lower hook is able to continuously weight the quality change of specimen inside the reducing pipe at a precision of 1g; it is displayed in figure and transmitted to the computer through RS-232 serial port. |
Gas supply system | It provides gas and adjusts the gas flow. |
The whole set of instrument is in accordance with the standard GB/T 24530-2009/ISO7992:2007
At a temperature of 1050℃, the static load is imposed on the specimen bed and mixed gas of CO, hydrogen and nitrogen is pumped to reduce the specimen until reducibility reaches 80%; then gas pressure of section and height change in the specimen bed are surveyed—This process is able to measure the load reducibility of iron ore for the blast furnace.

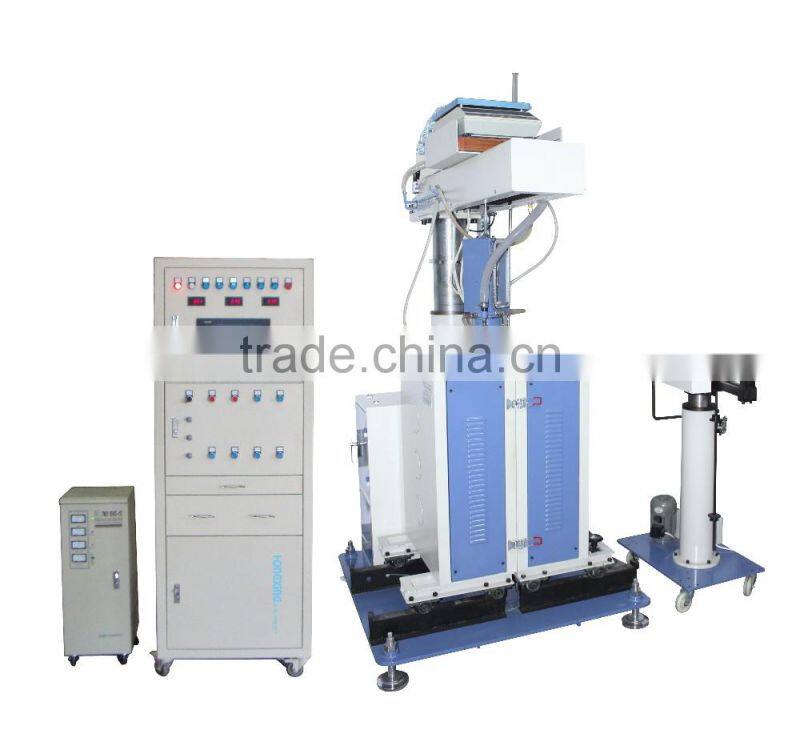

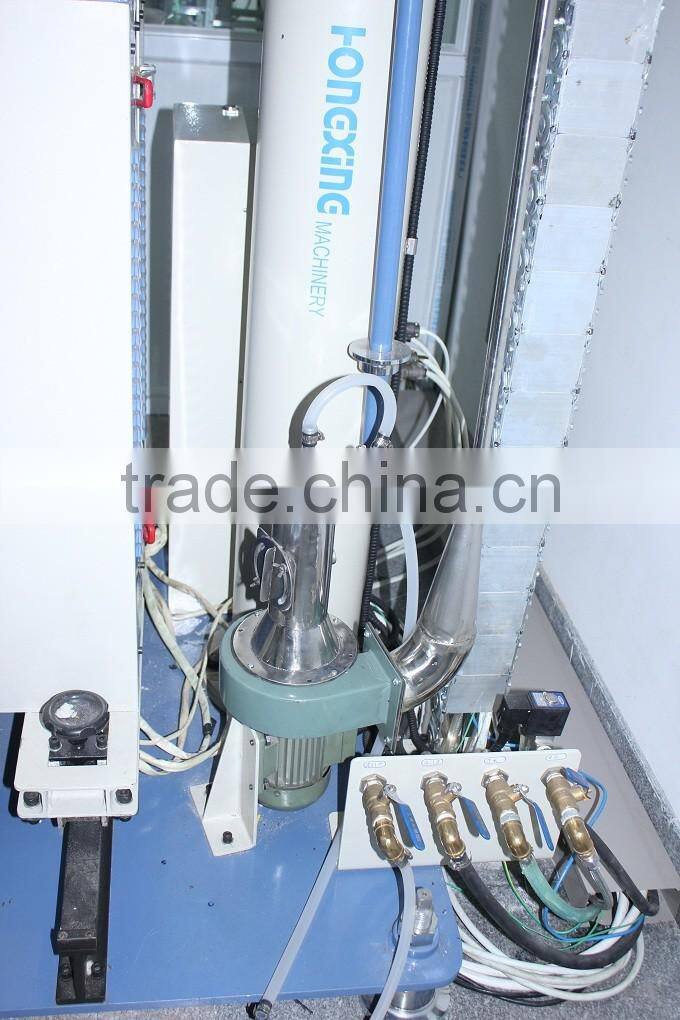

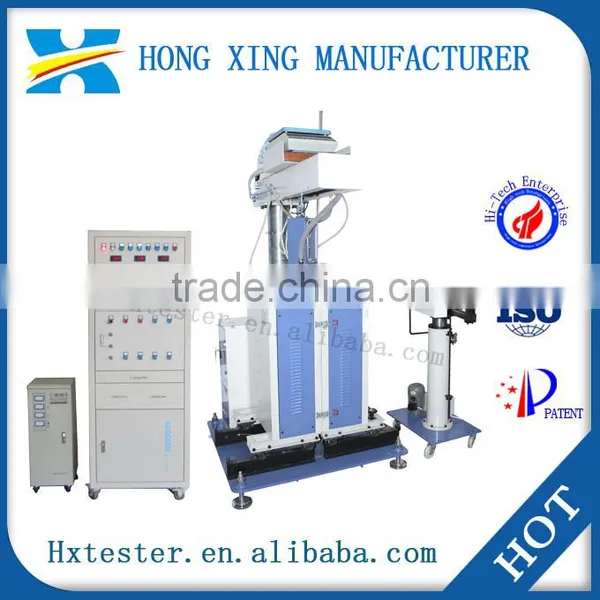

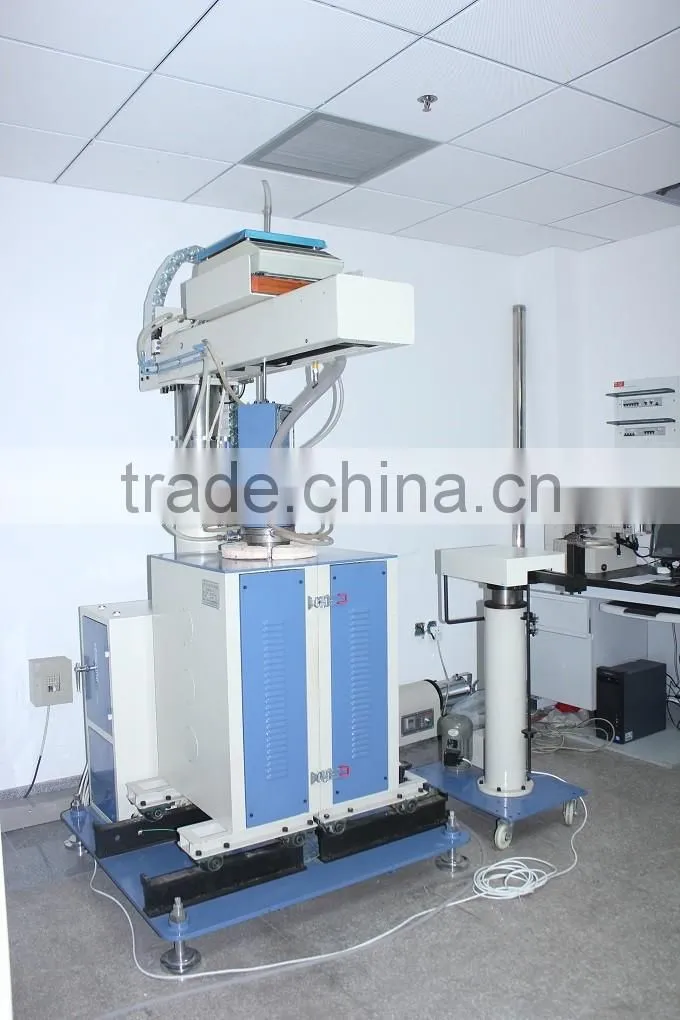

A complete set of equipment controlled by computer system, special high temperature reaction furnace, the temperature control device, safety system, loading device, pressure gauge, height measurement device, gas and fluid flow control system and weighing device, etc.
Main Equipment Unit and Technical Indicators
Reducing pipe | It is in the double-layer wall structure; mobile orifice plate is installed in the reducing pipe to bear the specimen and balance the gas; it can resist a high temperature of 1050℃--besides, it is able to resist against oxidization, reduction, corrosion and deformation.
|
Overall dimension | The inner diameter of inner reducing pipe is 125mm±1mm; the orifice plate is 10mm in thickness. |
Load unit | It is able to evenly impose a total static pressure of 50kPa±2kPa on the specimen. |
Surveying unit of gas differential pressure | The resolution is 0.01 kPa.
|
Height surveying unit | The resolution is 0.1mm. |
Heating furnace | It is able to maintain a constant temperature at 1050℃±10℃.
|
Scale | The electronic scale with lower hook is able to continuously weight the quality change of specimen inside the reducing pipe at a precision of 1g; it is displayed in figure and transmitted to the computer through RS-232 serial port. |
Gas supply system | It provides gas and adjusts the gas flow. |
Main Functional Requirements of Control Software System
1 | It enjoys the software operation and control ability and isolated control function in the hardware.
|
2 | The double-color real-time curve is able to automatically map out the interface; the temperature control and heating change processes are able to realize curve display. |
3 | The real-time curve screen is able to capture figure and save in the form of BMP or save in the form of graphic data; it is able to search and adopt historical curve/graph at any time and apply to contrast analysis. |
4 | It supports all related data statements and is able to print out according to the actual demand. |
5 | All the data is saved in the hard disc forever in the form of exclusive data so long as capacity is enough.
|
6 | It is collocated with PID adjustment interval aimed at large lagging temperature so that temperature adjustment precision enjoys strengths.
|
7 | PID parameters can be set up and saved by themselves.
|
8 | It enjoys intelligent judgment of fault or operation error; it enjoys the protection function to assure the use life of important hardware. |
9 | It enjoys the manual control function of all the hardware; it is able to separately and manually operate according to the operator’s habits.
|
10 | It enjoys the automatic and manual transfer functions of both hardware and software; it is applied flexibly according to the actual demand.
|
11 | The control instrument is collocated with the automatic air cooling system to make an intelligent judgment of temperature; it enjoys rather low noise in the normal operation. |
Similar Products
| | |
Our Catalogue
| Revolving drum | Pelletizer | Lime testing equipment | Drying Equipment |
| Crushing Equipment | Sampling and Sample Preparation Equipment | Sieving Equipment | Iron Ores Performance Testing Equipments |
| Coke, Coal, Carbon Testing Equipment | Steel Product Testing Equipment | Accessories |
If you have any interest in them, please contact us.
click here go to homepage
Patent: ZL201020682253.9; ZL201020682460.4
We have got ISO certificate for our main product to guarantee equipments quality, and we have a total of 34 national patents, including 5 invention patents, 28 utility model patents, 1 design patents
1.Shangyu Hongxing machinery equipment manufacturing Co.,Ltd,with more than 20 years history, we are one of the leading professional manufacturer of coal, coke, iron ore, steel testing equipment in China. We have got ISO certificate for our main product to guarantee equipments quality.
2.Our main products includes: iron ore testing equipment, coke testing equipment, steel testing equipment, drying equipment, crushing equipment , sampling and preparing equipment etc.
3.We have our own r&d team, according to the latest standards, through our own development software, realize the automation of equipment and computer control, to improve test efficiency and reduce human error.
4.Our advantages are providing professional testing process solution, complete set equipments and after-sale service for lab testing.
5.We are the iron ore and direct reduced iron standardization technical committee member units in China. Also, the national coal standardization technology committee member units in China.
6.main market is in Africa, southeast Asia, Asia, Middle East, etc.
Q1.what is the test principle and the reactivity?
Test principle: firstly, hydrate a certain amount of lime and at the same time, with a certain concentration of hydrochloric acid neutralize calcium hydroxide which produced during the lime hydration process. From the beginning to the end, always in a state of agitation speed, the water temperature is keep 40+-1℃ and keep in the process of neutralization equivalent points. Accurate records the consumption of hydrochloric acid when at 10minutes
The reactivity: the number recorded is called lime reactivity.
Q2.What is the importance of lime reactivity?
Lime quality had a great influence on steelmaking process, and its performance is good or bad, directly related to the smelting time, smelting speed, the quality of the steel, steel scrap ratio and heat energy utilization coefficient and other indexes. In the metallurgical industry, refers to the activity of lime degrees it reactions with other substances in the slag. With lime in the slag melting rate. Thus test the characteristics of quick lime is one of the important projects of metallurgical experiments.
Q3.What the advantages of this product compare to manual measurement ?
The manual measurement widely used at present domestic lime activity, the standardization, including of human factors is more, lead to the determination results is not accurate, efficiency is low. And contact with acid fog, there will be a certain risk, this product can be a very good one to solve the above problems.
Q4.What is the practical significance of the lime reactivity ?
Steelmaking practice shows that active lime can improve 80% efficiency of dephosphorization and desulphurization, shortening time of smelting and at the same time within 3-5 min can completely reaction with acid in the liquid steel, and general lime reaction time must be at least 6-10 min. Also, furnace life can be extent by more than 40%, moreover, furnace burden of consumption also reduce 5-8 kg/t steel, with 10 million t calculate, save $15 million a year, the production efficiency is improved significantly.
We sincerely provide below services:
-Lab project processing consulting
-Do testing for coke, iron ore, steel processing in laboratory
-OEM is acceptable, Products can be customized according to customer requirements
-Help you to solve the problems during the equipment operation.
-Spare parts provided
-Dispatching engineer overseas guidance for equipments installation, testing equipments, training workers.
