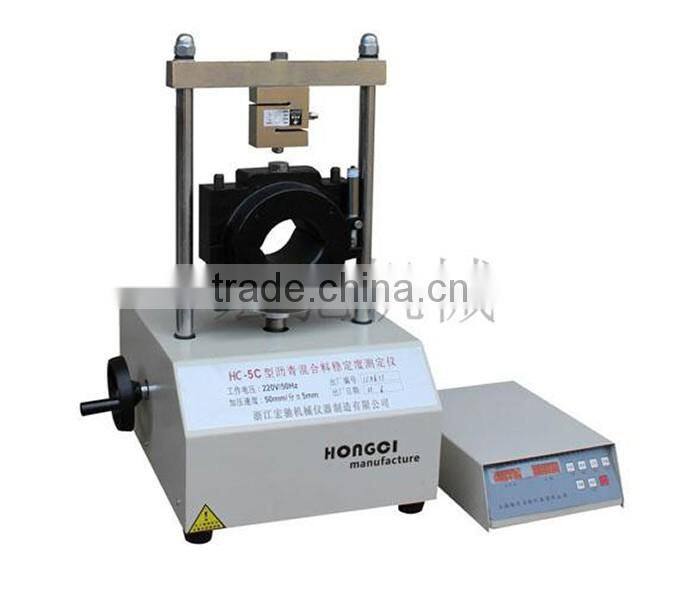

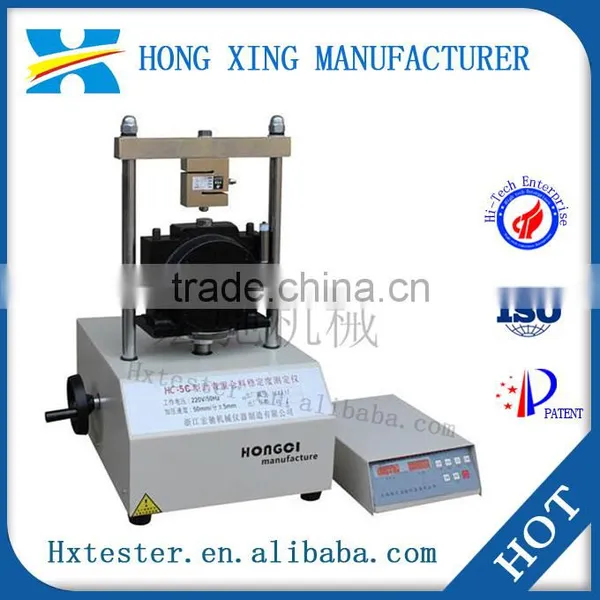

Asphalt mixture stability tester 0-30KN
Feature
The instrument is a dual purpose type, which can be used to test the stability of the standard Marshall stability test piece and the large Marshall stability test piece by fixture replacement (with a diameter of 101.6 and 152.4, respectively). Equipped with pressure and displacement sensor, the test process is completed by the instrument automatic measurement and control, no one is the error, so that the test data is more accurate and so on. According to customer requirements can be equipped with a printer, can be printed at the end of a single test, to provide the stability of the whole process of compression deformation of the entire process of graphics and data.
Equipment model | HC-5C | ||
| The pressure force | 0-30KN(50KN) | Display unit | 0.01KN |
| Flow value | 0-15mm | Display unit | 0.1mm |
| Display accuracy | 0.01mm | ||
| Speed of data acquisition | 4500 times per second | ||
| Voltage | 220V,50HZ | ||
| Power | Electronic part 550W, mechanical part 15W | ||
| Working temperature | 5℃-35℃, Recommended at room temperature for 10℃-30℃ | ||
