Wireless Automatic Data Transfer 0-9 Bar Car Tire Pressure Monitoring System

Wireless Automatic Data Transfer 0-9 Bar Car Tire Pressure Monitoring System thumbnail-1
Wireless Automatic Data Transfer 0-9 Bar Car Tire Pressure Monitoring System photo-1
Negotiable MOQ: 200 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Max Pressure:
< 100 Psi
Type:
Digital
Certification:
CE
Contact Supplier Request Quote Chat Now
Shenzhen A.T.R. Industry Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Digital
Certification CE
Voltage 12 +/- 3V
Place of Origin Guangdong, China
Brand Name A.T.R
Model Number 97143T
Warranty 1 Years

Wireless automatic data transfer 0-9 bar car tire pressure monitoring system

Product Description

Product Details

  • Automatic connection from sensor to display.
  • Warning when the tyre pressure is too high or too low.
  • 1-Minute Plug & Play ,easy installation.
  • Additional USB port is provided on dispay.
  • Fit for 99% of 4-wheel car on the market.
  • Accurate data display on LCD screen.
  • Wireless automatic data transfer.
  • Protect your tyre and prolong its lifetime.
  • Safe lock; sensor will not loose during driving.
  • Japanese battery can use for 2-3 years.

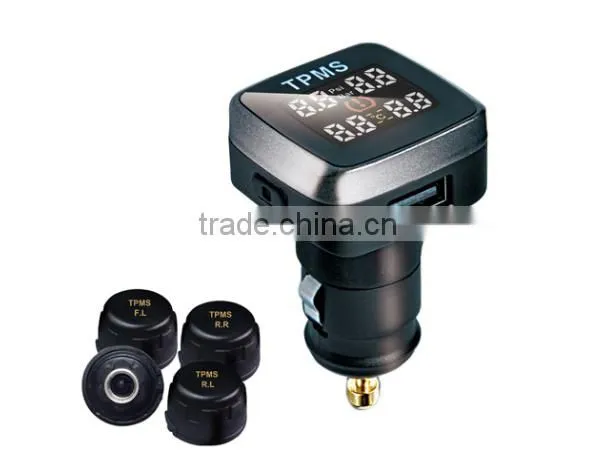

Product Picture:

Wireless automatic data transfer 0-9 bar car tire pressure monitoring system

Internal Sensor Technical Parameter

Working temperature -40℃ to +125℃
Working humidity 5-98%
Weight 43g (not include the valve 24g)
Dimension 60.5*30*20 MM
Battery life 6 years above
Pressure detecting range 0-9Bar(0-131Psi)
Temperature detecting range -40℃-90℃
RF frequency FSK 433.92Mhz

External Sensor Technical Parameter

Sensor weight < 10g
Tire pressure range  0-9Bar(0-131Psi)
Battery model CR1632
Battery life more than 3 year
Static current < 0.7 uA
Working current < 12mA
Working temperature -40℃ - + 125℃
Tire pressure tolerance ± 0.1 / ± 1Psi
Temperature tolerance ± 2℃
Working temperature 5-90℃

Display Technical Parameter

Input voltage 12 +/- 3V
Static Current < 25mA
Operating Temperature -40℃ ~ +85℃
Operating Humidity 5-98%
