FSK 433.92Mhz Wireless Digital Car Tire Pressure Monitoring Systems
Negotiable
MOQ: 200 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Max Pressure:
< 100 Psi
Type:
Digital
Certification:
CE
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Fashional Wireless Automatic Data Transfer Car Tire Pressure Monitoring SystemNegotiableMOQ: 200 Pieces -
Accurate Data Display on Lcd Screen Cars Tire Pressure Monitoring SystemNegotiableMOQ: 200 Pieces
-
DIY Installation Truck Tire Pressure Monitoring System With HD LCD DisplayNegotiableMOQ: 200 Pieces
-
Spanish Talking Tire Pressure Gauge With LCD Digital DisplayNegotiableMOQ: 3000 Pieces
-
Multi-function Tire Gauge With LCD Digital DisplayNegotiableMOQ: 200 Pieces
Type
Digital
Certification
CE
Voltage
12 +/- 3V
Place of Origin
Guangdong, China
Brand Name
A.T.R
Model Number
97143T
Warranty
1 Years
FSK 433.92Mhz wireless digital car tire pressure monitoring systems
Product Description
Product Details
- Automatic connection from sensor to display.
- Warning when the tyre pressure is too high or too low.
- 1-Minute Plug & Play ,easy installation.
- Additional USB port is provided on dispay.
- Fit for 99% of 4-wheel car on the market.
- Accurate data display on LCD screen.
- Wireless automatic data transfer.
- Protect your tyre and prolong its lifetime.
- Safe lock; sensor will not loose during driving.
- Japanese battery can use for 2-3 years.
FSK 433.92Mhz wireless digital car tire pressure monitoring systems

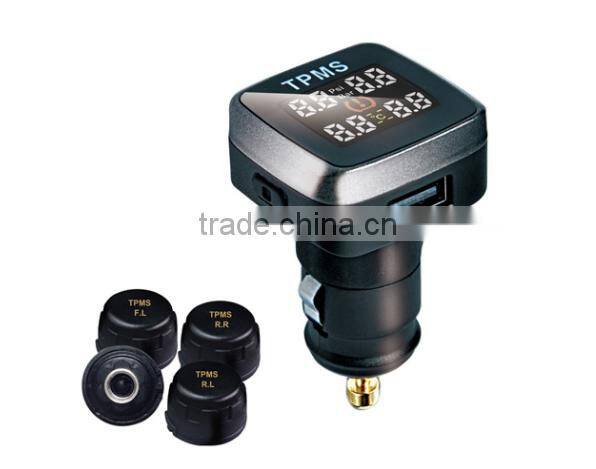

Product Picture:
Internal Sensor Technical Parameter
| Working temperature | -40℃ to +125℃ |
| Working humidity | 5-98% |
| Weight | 43g (not include the valve 24g) |
| Dimension | 60.5*30*20 MM |
| Battery life | 6 years above |
| Pressure detecting range | 0-9Bar(0-131Psi) |
| Temperature detecting range | -40℃-90℃ |
| RF frequency | FSK 433.92Mhz |
FSK 433.92Mhz wireless digital car tire pressure monitoring systems
External Sensor Technical Parameter
| Sensor weight | < 10g |
| Tire pressure range | 0-9Bar(0-131Psi) |
| Battery model | CR1632 |
| Battery life | more than 3 year |
| Static current | < 0.7 uA |
| Working current | < 12mA |
| Working temperature | -40℃ - + 125℃ |
| Tire pressure tolerance | ± 0.1 / ± 1Psi |
| Temperature tolerance | ± 2℃ |
| Working temperature | 5-90℃ |
Display Technical Parameter
| Input voltage | 12 +/- 3V |
| Static Current | < 25mA |
| Operating Temperature | -40℃ ~ +85℃ |
| Operating Humidity | 5-98% |
