Fish Scale 5 Tabs Colorful Fiberglass Asphalt Shingle Roof Tile

Fish Scale 5 Tabs Colorful Fiberglass Asphalt Shingle Roof Tile photo-1

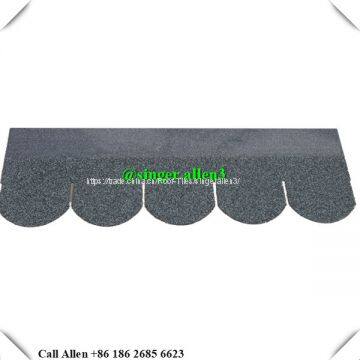

Fish Scale 5 Tabs Colorful Fiberglass Asphalt Shingle Roof Tile photo-2

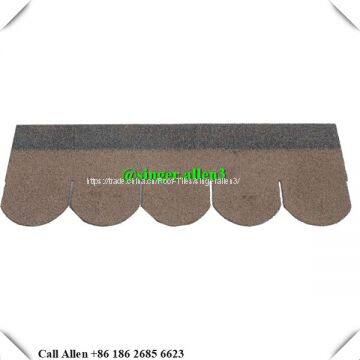

Fish Scale 5 Tabs Colorful Fiberglass Asphalt Shingle Roof Tile photo-3

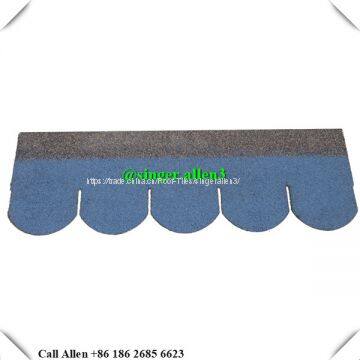

Fish Scale 5 Tabs Colorful Fiberglass Asphalt Shingle Roof Tile photo-4
Fish Scale 5 Tabs Colorful Fiberglass Asphalt Shingle Roof Tile photo-5
US$ 3.5 - 5 MOQ: 1 Twenty-Foot Container
Key Specifications
Get Latest Price
Brand Name:
SGB
Place of Origin:
China
Model Number:
RF01
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
7 days
Brand Name SGB
Place of Origin China
Model Number RF01
Material Other, Bitumen, Fiberglass Mat, Color Granules
Type Plain Roof Tiles

Fish scale 5 tabs Colorful Fiberglass  asphalt shingle roof tile

Product Description
Product Description

Colorful Fiberglass asphalt shingle roof tile
Product name: Asphalt Shingle
Material Asphalt,fiber glass felt,Mineral granules
Length 1000mm(±3.0mm)
Width 333mm(±3.0mm)
Thickness 5.2mm
Weight 28kg/bundle,25000kgs/20gp
Tensile strength(longitudinal)(N/50mm) >=530
Tensile strength(transversal)(N/50mm >=550
Heat Resistance No flow, slide, drippage and bubble(90°C)
Flexibility No crack being bent for 10°C
Nail Resistance 78N
Resist To Tearing >100N
Weather Explosure 145mm
Wind Resistance 98km/h
Average Life Time 30 -50years
Packing 2.32sqm/bundle,16pcs/bundle, packing with PE film bag and fumigation pallet
Performance

1. Asphalt shingles are inexpensive and versatile

2. They work well with various roof types and pitches

3. They are relatively easy to cut to size, fit together and attach to the roof

4. There is no need for any custom accessories for the roof edges, vents or chimney flashing.

5 Fiberglass shingles are thinner, more lightweight and have better fire ratings.

6. They have no pollution, and with heat, wind and humidity resistance

Detailed Images
Detailed Images
America standard laminated asphalt india roofing shingles priceasphalt shingle 5 types (1).jpg



asphalt shingle 5 types (2).jpg



asphalt shingle 5 types (3).jpg

asphalt shingle 5 types (4).jpg

asphalt shingle 5 types (5).jpg

Available Profile of Asphalt  Roofing Shingles


SGB1  3 Tab Shingle
Length:  1000mm(±3.0mm)
Width: 333mm(±3.0mm)
Thickness:2.6mm
Weight: 28kg/bundle,25000kgs/20gp
SGB2  Laminated Shingle
 Length 1000mm(±3.0mm)
Width: 333mm(±3.0mm)
Thickness:5.2mm
Weight: 28kg/bundle,25000kgs/20gp
SGB3  Mosaic Shingle
 Length 1000mm(±3.0mm)
Width: 333mm(±3.0mm)
Thickness:2.6mm
Weight: 22kg/bundle,25000kgs/20gp
SGB4  Goethe Shingle
Length 1000mm(±3.0mm)
Width: 333mm(±3.0mm)
Thickness:2.6mm
Weight: 22kg/bundle,25000kgs/20gp
SGB5  Fish Scale Shingle
Length 1000mm(±3.0mm)
Width: 333mm(±3.0mm)
Thickness:2.6mm
Weight: 27kg/bundle,25000kgs/20gp

Production Process


If you have any interest in them, please feel free to contact us.
