Specifications

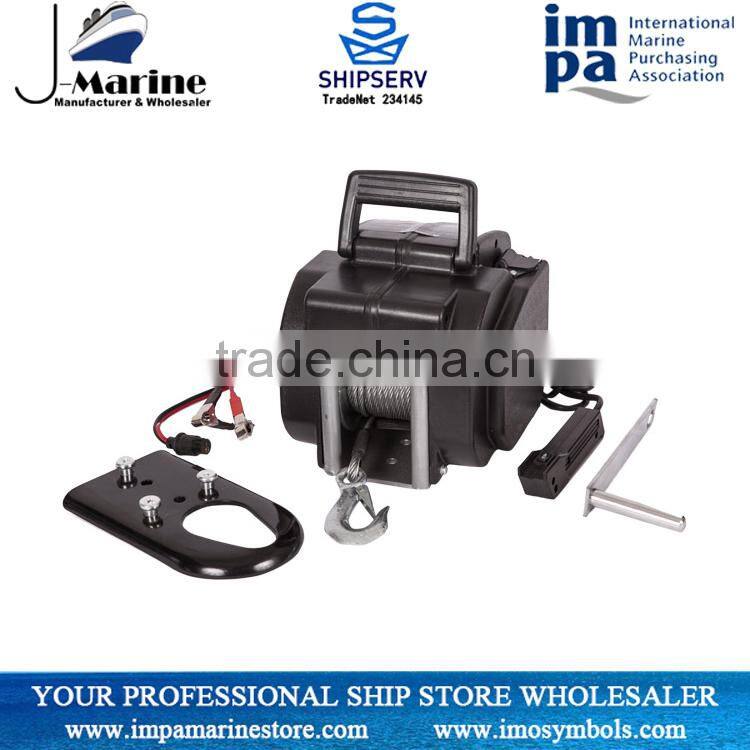

Electric Winch For Marine Use 3500-B
Electrical Requirements: 12Volt DC Input
Load Capacitied: 11000lbs (Rolling)
9900Lbs(Marine)
3500Lbs(Pulling)
Pull ,Speed,Ampress,Volts(First Layer)
| Line Pull (lbs./kg) | Line Speed FPM(m/min) | Motor(Amps) |
| 0 | 19.6ft(6.0m) | 5 |
| 500(227) | 16.3ft(5.0m) | 10 |
| 1000(454) | 14.7ft(4.5m) | 20 |
| 2000(907) | 13.0ft(4.0m) | 23 |
| 3000(1361) | 12.0ft(3.7m) | 26 |
| 3500(1591) | 19.6ft(6.0m) | 30 |
Power In and Out Capability Yes
Wire Rope:5.5mmX9mm
Battery Cable Lengthes:25Ft
Remote Cable Lengtth:10Ft
Main Hook Sizev:5/8" Opening x4-1/4" long
| Line Pull Rope Capacity In Layer | ||
| layer | Rated Line Pull(lbs./kgs) | Tatal Rope On Drum(ft/m) |
| 1 | 3500(1585) | 4.9(1.5) |
| 2 | 3095(1400) | 11.4(3.5) |
| 3 | 2445(1100) | 19.6(6.0) |
| 4 | 2140(970) | 29.4(9.0) |
Packing: 1 set/ carton box or 1set/ wooden box, also can be packed as your requirements.
Delivery and Payment
Shipment | fedex,DHL,EMS,UPS |
Shipping Port | Ningbo/Shanghai |
Delivery | A Send by Courier Express—Swift delivery ( 4-7working days) |
| B Send by Air: Arrive at destination Airport ( need you to pick it up ) |
| C Ship by Sea : Low shipping cost and slow delivery ( Around 15- 30 days) |
Payment Terms | T/T,Western Union,L/C |
J-Marine established in 2010, with office located in Hongxing Road NO.2, building 16, Jiangbei District,Ningbo city, Zhejiang Province, China. Commits to the business of marine store wholesale. Have been and always will be loyal to the customers who are service ship- chandler, located near port of Ningbo, hence provides us to deliver your order more effectively. Professional production: IMO symbols, safety & training poster, navigation equipment, recording paper, Merchant flag.
