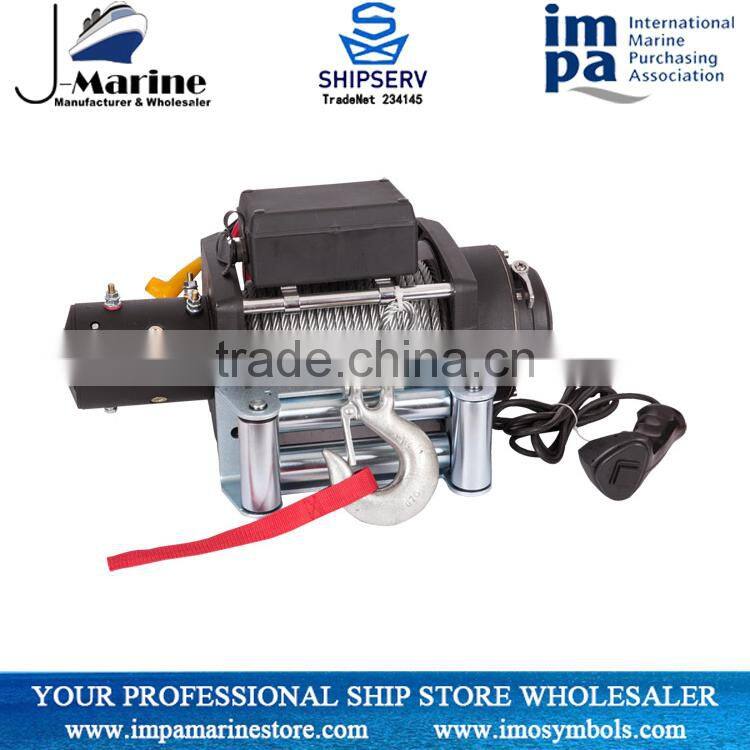

Home > Manufacturing & Processing Machinery > Lifting Equipment > Winch > Heavy Duty 15000LBS Remote AWD Winch With 3 Stage Planetary
Negotiable
MOQ: 20 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
OEM orJM
Model Number:
JM15000lbs
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Marine Wholesale Manufauturer High Quality Of 12000 Lbs Winch For Auto Off-roadNegotiableMOQ: 20 Sets -
Auto Application 12v And 24v DC 8000LBS Winch With 4-Way Roller FairleadNegotiableMOQ: 20 Sets
-
Electric Capatan ATV Winch 4000LB With Synthetic RopeNegotiableMOQ: 20 Sets
-
Small 1500lb Electric Capstan Winch for SaleNegotiableMOQ: 50 Sets
-
Electrically Operated Yacht Cable Winch WIith 12V For Marine UseNegotiableMOQ: 50 Sets
Place of Origin
Zhejiang, China
Brand Name
OEM orJM
Model Number
JM15000lbs
Power Source
Electric
Application
Auto
Capacity
15000LBS(6818kg)
Product Description
| Performance Voltage | DC 12V / 24V |
| Rated line pull(single line) | 15000lb(6818kg) |
| Motor | 5.4HP Series Wound |
| Gear Train | 3 Stage Planeary |
| Gear Reduction Ratio | 314:1 |
| Remote Control cable | 3m |
| Clutch | Sliding Ring Gear |
| Breaking Action | Automatic In-The Drum |
| Drum Size | 84mm*233.5mm |
| Steel Wire Rope | ¢11mm*24m |
| Fairlead | 4-way Roller Fairlead |
| Battery Leads | 1.8M |

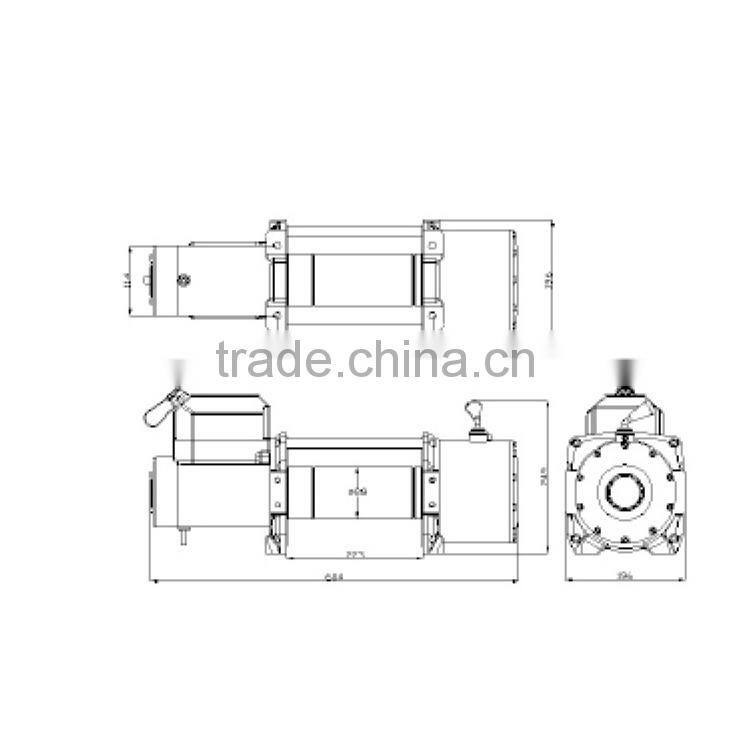

| Overall Dimensions | L*W*H( 530mm*220*mm*217) |
| Mounting BoLt Pattem | (254×115mm) |
| Wireless Remote Control | Optional |
| G. W / N. W | 52/54kgs(1PCS) |
| Shipping Carton Size | 610*350*320mm(1CTN) |
| Line ,Speed,Amperes,Volts(First Layer) | ||
| Line Pull(lbs/kg) | Line Pull(lbs/kg) | Line Pull(lbs/kg) |
| 0 | 22.0ft (6.8m) | 8 |
| 6000(2722) | 9.8ft (3.0m) | 210 |
| 8000(3629) | 8.2ft (2.5m) | 250 |
| 10000(4536) | 6.8ft (2.1m) | 300 |
| 15000(6818) | 5.6ft (1.7m) | 400 |
| Line Pull And Rope Capacity In layer | ||
| Layer | Rated Line Pull (lbs./kgs) | Total Rope On Drum (ft/m ) |
| 1 | 15000(6818) | 17.6(5.4) |
| 2 | 9530(4322) | 37.0(11.4) |
| 3 | 7920(3590) | 63.0(19.4) |
| 4 | 6770(3075) | 88.0(26.8) |
