Help CenterMarine Hydraulic Oil Pressure Gauges Filled With Glycerine
Related Products
-
Brass Case Marine Tank Thermometer With SamplerNegotiableMOQ: 100 Pieces -
Marine Oil Guaging Tape In Stainless SteelUS$ 10 - 25MOQ: 100 Sets
-
Marine Oil Sounding Gauge Of White TapeUS$ 10 - 25MOQ: 100 Sets
-
Professional Marine Oil Dipping Tapes For Measure OilUS$ 10 - 25MOQ: 100 Sets
-
Metric And Inch Vernier CaliperNegotiableMOQ: 100 Pieces
Specification

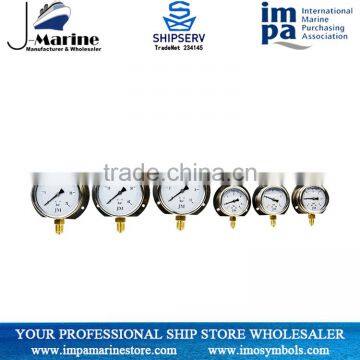

Marine Oil Pressure Gauges With stainless steel Casing
The internal mechanism for the pointer operation is filled with glycerine to protect the accuracy of the gauge from mechanical vibration and to extend the working life of the gauge
HOW TO ODDER
1.type of casing
2.purpose where use
3.type of fitting connection
4. connection size
5.diameter of gauge
ure range
| bottom connection direct mounting | bottom connection with back flage | ||||
| CODE | mersuring range (bar) |
Dial size (mm) |
CODE | mersuring range (bar) |
Dial size (mm) |
| 653101 | -1~1.5 | 63 | 653151 | -1~1.5 | 63 |
| 653102 | 80 | 653152 | 80 | ||
| 653103 | 100 | 653153 | 100 | ||
| 653104 | -1~3 | 63 | 653154 | -1~3 | 63 |
| 653105 | 80 | 653155 | 80 | ||
| 653106 | 100 | 653156 | 100 | ||
| 653107 | -1~5 | 63 | 653157 | -1~5 | 63 |
| 653108 | 80 | 653158 | 80 | ||
| 653109 | 100 | 653159 | 100 | ||
| 653110 | -1~9 | 63 | 653160 | -1~9 | 63 |
| 653111 | 80 | 653161 | 80 | ||
| 653112 | 100 | 653162 | 100 | ||
| 653113 | 0~4 | 63 | 653163 | 0~4 | 63 |
| 653114 | 80 | 653164 | 80 | ||
| 653115 | 100 | 653165 | 100 | ||
| 653116 | 0~6 | 63 | 653166 | 0~6 | 63 |
| 653117 | 80 | 653167 | 80 | ||
| 653118 | 100 | 653168 | 100 | ||
| 653119 | 0~10 | 63 | 653169 | 0~10 | 63 |
| 653120 | 80 | 653170 | 80 | ||
| 653121 | 100 | 653171 | 100 | ||
| 653122 | 0~16 | 63 | 653172 | 0~16 | 63 |
| 653123 | 80 | 653173 | 80 | ||
| 653124 | 100 | 653174 | 100 | ||
| 653125 | 0~25 | 63 | 653175 | 0~25 | 63 |
| 653126 | 80 | 653176 | 80 | ||
| 653127 | 100 | 653177 | 100 | ||
| 653128 | 0~40 | 63 | 653178 | 0~40 | 63 |
| 653129 | 80 | 653179 | 80 | ||
| 653130 | 100 | 653180 | 100 | ||
| 653131 | 0~60 | 63 | 653181 | 0~60 | 63 |
| 653132 | 80 | 653182 | 80 | ||
| 653133 | 100 | 653183 | 100 | ||
| 653134 | 0~100 | 63 | 653184 | 0~100 | 63 |
| 653135 | 80 | 653185 | 80 | ||
| 653136 | 100 | 653186 | 100 | ||
| 653137 | 0~160 | 63 | 653187 | 0~160 | 63 |
| 653138 | 80 | 653188 | 80 | ||
| 653139 | 100 | 653189 | 100 | ||
Packing: 1 set/ carton box or 1set/ wooden box, also can be packed as your requirements.
Delivery and Payment
Shipment |
fedex,DHL,EMS,UPS |
Shipping Port |
Ningbo/Shanghai |
Delivery |
A Send by Courier Express—Swift delivery ( 4-7working days) |
|
B Send by Air: Arrive at destination Airport ( need you to pick it up ) |
|
C Ship by Sea : Low shipping cost and slow delivery ( Around 15- 30 days) |
Payment Terms |
T/T,Western Union,L/C |
WHAT MAKES J-MARINE DIFFERENT THAN ANY OTHER COMPANY?
- 1. High quality products & service
- 2. Loyalty towards customers
- 3. One of the major suppliers in marine industry
CUSTOM ORDER? WE GOT IT!
If you want to discuss custom order, please contact our seller blow. We look forward to establish successful business relationships with new clients around the World.
J-Marine established in 2010, with office located in Hongxing Road NO.2, building 16, Jiangbei District,Ningbo city, Zhejiang Province, China. Commits to the business of marine store wholesale. Have been and always will be loyal to the customers who are service ship- chandler, located near port of Ningbo, hence provides us to deliver your order more effectively. Professional production: IMO symbols, safety & training poster, navigation equipment, recording paper, Merchant flag.
