Marine Wholesale Air Operated Double Diaphragm Pump

Ningbo J-Marine Co., Ltd.
Marine Wholesale Air Operated Double Diaphragm Pump thumbnail-1
Marine Wholesale Air Operated Double Diaphragm Pump thumbnail-2

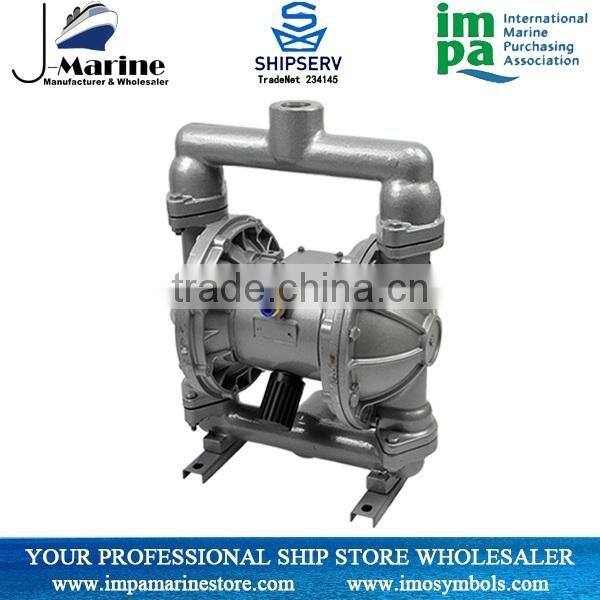

Marine Wholesale Air Operated Double Diaphragm Pump photo-1

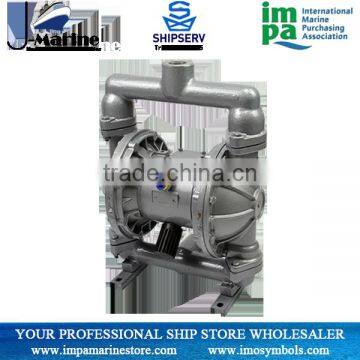

Marine Wholesale Air Operated Double Diaphragm Pump photo-2
Negotiable MOQ: 50 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
J-Marine or OEM
Model Number:
591715-591729
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name J-Marine or OEM
Model Number 591715-591729
Theory Axial Flow Pump
Structure Diaphragm Pump
Usage Air Pump
Power Pneumatic
Standard or Nonstandard Standard
Fuel Gasoline
Pressure High Pressure
Application Maritime

Specifications

We deliver non-stalling, non-icing, lubrication free on/off reliability
Ease of operation,
Variable speed
Variable pressure



Product Description



E1 1" Bolted Metallic Pumps
CODE591715591716591717
Body materialaluminumstainless steelhastelloy c
Flow rate0-35 gpm (0-132 lpm) adjustable
Port sizeInlet1.0" female NPT (BSP)
Discharge1.0" Female NPT (BSP)
Air inlet0.375" NPT
Air exhaust0.50" NPT
Suction Lift15' dry/25 wet (4.57 m/7.62 m)
Max. particle size (diameter)0.125" (3.17mm)
Weight lbs (kgs)31 (14.07)42 (19.05)
Remark: Do not exceed 125 psig (8.5 bars)air supply or liquid pressure.



E4 1-1/4" Clamped Metallic Pumps
CODE591718591719591720591721
Body materialAluminum
Flow rate0-70 gpm (0-265 lpm) adjustable
Port sizeInlet1.50" FNPT (BSP)
Discharge1.25" NPT (BSP)
Body materialAluminumcast ironhestelloy cstainless steel
Air inlet0.50" NPT
Air exhaust0.75" NPT
Suction lift15'dry/25' wet (4.57m/7.62m)
Max. particle Size (diameter) 0.1875" (4.76 mm)
Weight lbs (kgs)41 (18.6)57 (25.85)
Remark: do not exceed 125 psig (8.5 bars)air supply or liquid pressure.



E2" Clamped Metallic Pumps
CODE591722591723591724591725
Body materialAluminumcast ironhastelloy cstainless steel
Flow rate0-155 gpm (0-586 lpm) adjustable
Port sizeInlet2" FNPT (BSP)
Discharge2" NPT (BSP)
Air inlet0.50" NPT
Air exhaust0.75" NPT
Suction Lift20' dry/25' wet (6.10m/7.62m)
Max. particle size (diameter)0.25" (6.35mm)
Weight lbs (kgs)70 (31.75)115 (52.16)



E3.3" Clamped Metallic Pumps
CODE591726591727591728591729
Body materialAluminumcast ironhastelloy cstainless steel
Flow rate0-230 gpm (0-984 lpm) adjustable
Port sizeInlet3" FNPT (BSP)
Discharge3" FNPT (BSP)
Air inlet0.5" NPT
Air exhaust1.0" NPT
Suction Lift20' dry/25' wet (6.10m/7.62m)
Max. particle size (diameter)0.375" (9.52 mm)
Weight lbs (kgs)115 (52.16)210 (95.25)







Detailed Images



 Marine Wholesale Air Operated Double Diaphragm PumpMarine Wholesale Air Operated Double Diaphragm Pump



Packaging & Shipping

Marine Wholesale Air Operated Double Diaphragm Pump



Our Services

Marine Wholesale Air Operated Double Diaphragm Pump



Company Information

Marine Wholesale Air Operated Double Diaphragm Pump
