Self-furred Welded Wire Lath for Stucco and Plaster Reinforcing

Self-furred Welded Wire Lath for Stucco and Plaster Reinforcing photo-1
Self-furred Welded Wire Lath for Stucco and Plaster Reinforcing photo-2
Self-furred Welded Wire Lath for Stucco and Plaster Reinforcing photo-3
Self-furred Welded Wire Lath for Stucco and Plaster Reinforcing photo-4
US$ 500 - 600 MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin China
Welded Wire Lath – Regular, Heavy Duty and Truss Sheet Product

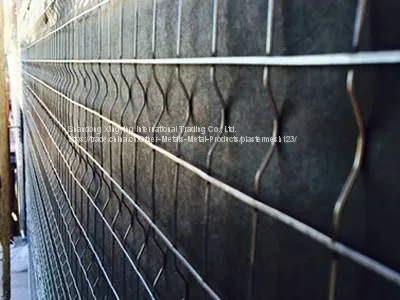

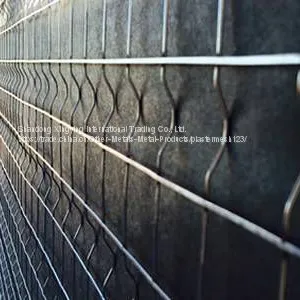

Self-furred welded wire lath, located in mutually perpendicular directions and interconnected by spot welding, is engineered to improve the embedment and reduce cracks of plaster walls in the period of building construction and residential living. It is suitable for exterior and interior walls, ceilings and partitions construction. It could also refurbish the damaged or deteriorated faces of masonry walls.

This self-furred welded wire lath is easier for plaster attachment compared with flat welded wire lath. It is an alternative product for rib metal lath originally. The evaluated tests show that welded wire lath performs an equal or better role as rib metal lath. We supply mainly galvanized steel welded wire lath. Additional coating is available for coastal and higher humidity area places. The welded wire lath in our company could be divided into three types: regular, heavy duty and truss sheet types.

The self-furred welded wire lath is fixed into the black backing paper.

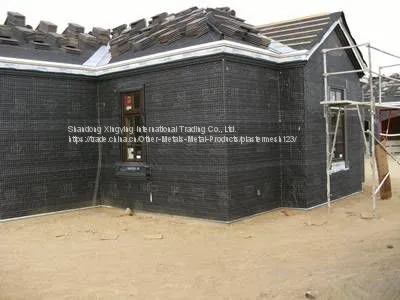

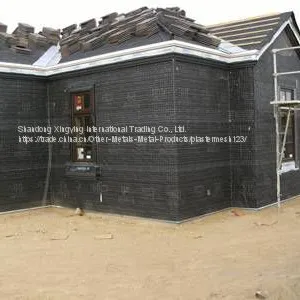

WWA-01: Self-furred welded wire lath is used for stucco and plaster installation upon backing paper.
Many rolls of welded wire lath is enveloped with plastic film.

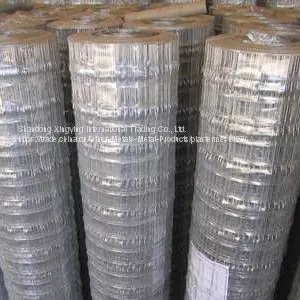

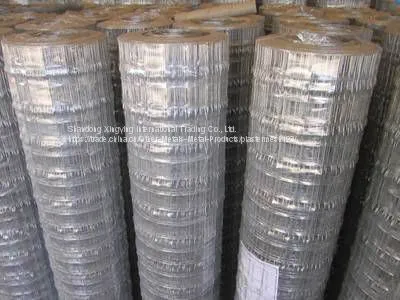

WWA-02: Welded wire lath will be enveloped and labeled before stored in warehouse or delivery into our customer.

Specification:

Regular self-furred welded wire lath

Wire material: galvanized steel wire.

Wire gauge: 17, 16.

Mesh size: 1.5" × 1.5", 2" × 2".

Roll height: 0.8 m, 1.0 m, 1.25 m, 1.5 m, 2.0 m.

Roll length: 15 m, 20 m, 30 m, 50 m.

Additional wires: available, 8 longitudinal wires.

Application: Regular Self-Furred Welded Wire Lath is suit for residential buildings, commercial buildings.

Welded wire lath with a self-furred part in middle and two rows of rectangle opening holes on both sides.

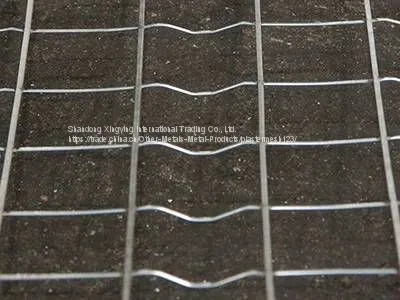

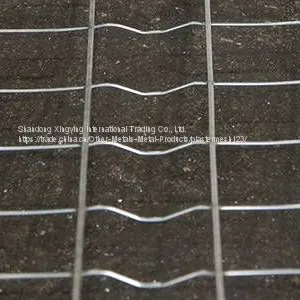

WWA-03: Regular welded wire lath with a row of bend in the middle for easier embedment of plaster and stucco.
Specification of regular welded wire lath, which includes width of furring leg, furring distance, furring height and so on.WWA-04: The detailed specification of regular self-furred welded wire lath.

A: Width of furring leg is 3/8".

B: Furring height from apex to the underside of cross wires is 1/4".

C: Furring rows every 3" on center.

D: Every cross wire is furred.

E: Tabs are aligned with edge wire and extend 1/4" beyond edge wires.

F: Overall width is 38 3/8". Designed for full coverage of 9'-3" normal wall height including code required overlaps.


Product Tags: welded wire lath , metal lath for stucco , plaster wire mesh
