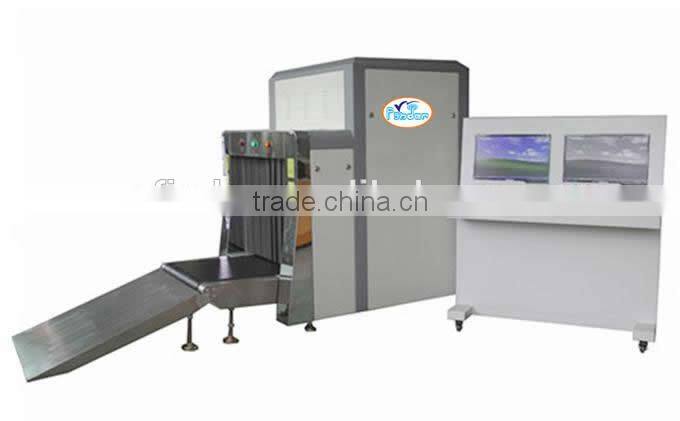

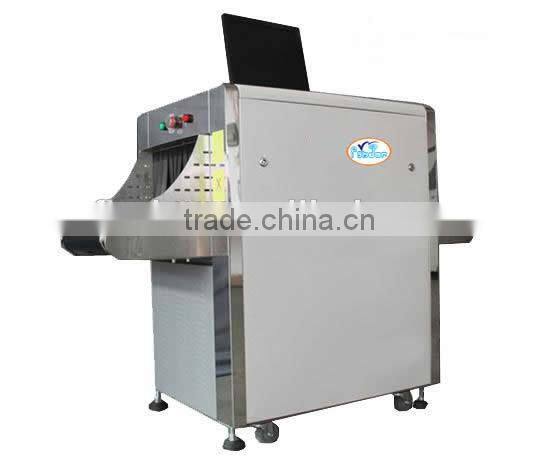

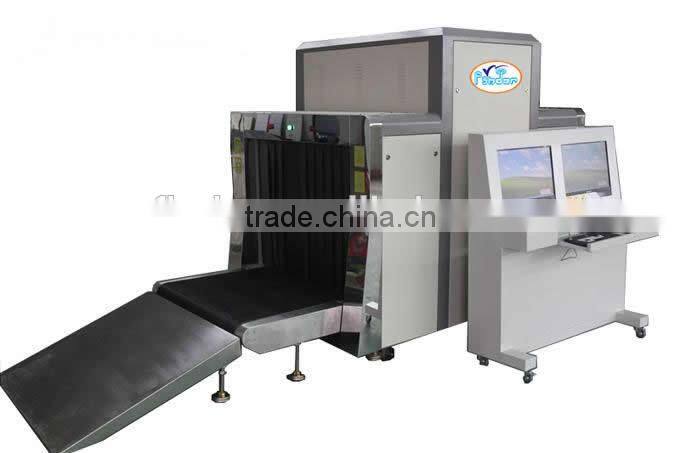

x ray baggage scanner in thailand

Strong wooden case box

 Advantages
1. With equipment to save electricity
2. Famous brand spare parts:
(1). Spellman brand generator from the USA
(2). Hamamatsu brand detector from Japan
(3). Interroll brand Roller from German
3. Protective cover on lead curtain to avoid lead pollution
4. Sound and light alarm
5. Local network supported

Product Certification
 Strict quality internal control , double-check principles of engineering and production
 Safeguard measures for machine parts
 Through the testing by Ministry of public security and police use electronic product quality testing center
 Through the EU CE certification
 Through the ISO9001 quality management system certification
 Through the ISO14001 environmental management system certification
 Through the GB/T28001 occupation health and safety management system certification
 Through thes provincial Environmental Protection Department of radiation safety certification
 Through the provincial occupation health inspection center detection of radiation
 Through the the people's Republic of China State Bureau of copyright of computer software copyright
registration certificate
 Double soft certification

X-ray Generator
Ray Beam direction Bottom-illuminated
Tube current 0.4~0.5mA(adjustable)
Tube voltage 100-160 kV(adjustable)
Ray beam divergence angle 60°
The cooling / work cycle Sealed oil cooling / 100%
Image Processing System
X-ray sensor L-shaped photodiode array detector (C), 24bit depth
Monitor high resolution 19 inch LCD SamSung monitor
Color image display 24-bit true color display
Edge Enhancement the outline of objects will be more clear
Super Image Enhancement the details of the image are more clear
High penetration display improve image contrast in bright areas, so the easy penetrating area will be more clear
Low penetration display improve image contrast in dark areas, so the difficult penetrating area will be more clear
Magnifier local amplification function
Brighten / darken Increase/ decrease image brightness
Image pull back / front pull Show the top 20 images, and the current image can be any image processing
Image Restoration Restored to its original state
Image Storage Real-time save any image, any image can be processed arbitrarily ,continuous work to save
Environmental conditions
Operating temperature / humidity 0℃~45℃/20%~95% (No condensation)
Storage temperature / humidity -20℃~60℃/20%~95% (No condensation)
Operating Voltage 220VAC(±10%) 50±3Hz
Power consumption 1.0KW(maximum)
Noise level <55dB (A)

Technical Standards Technical Parameters
The channel size 500(W)×300(H)mm
Conveyor speed 0.22m/s
Load 20 kg
Resolution 0.0787 mm
Penetration ≥40 mm steel plate
Monitor Samsung 19in LCD Monitor
Storage
500G hard drive to save any image in real time, can store more than 100,000 and
can make any image processing, and continuous work to save.
Noise < 55dB(A)
Operating system windowsXP
Film Safety Safety to the ISO1600
Leaking radiation dose rate
Away from any device outer surface of 5cm, the ray irradiation leak rate should
be < 0.05µGy/H
Dimensions (L) 1750mm (W)750mm(H)1300mm
NW / GW 290 kg / 360 kg
VX6040 X RAY LUGGAGE BAGGAGE LUGGAGE SCANNER
Applications
Customs, port, prosecutors, prisons, railway stations, courts and other security units. Advantages

we takes strong ploywooden case

shipment can takes of By sea

our sales team can give feedback within 12 hours after receive your inquiry
