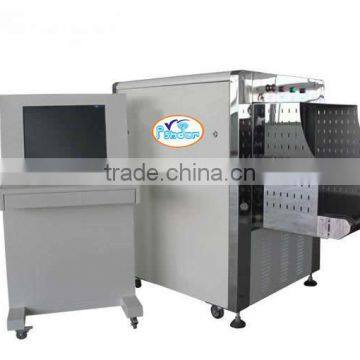

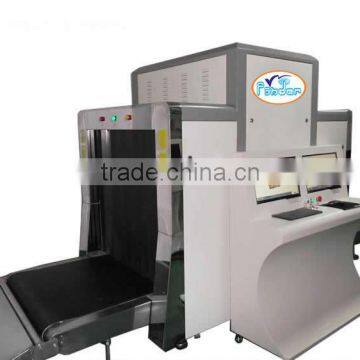

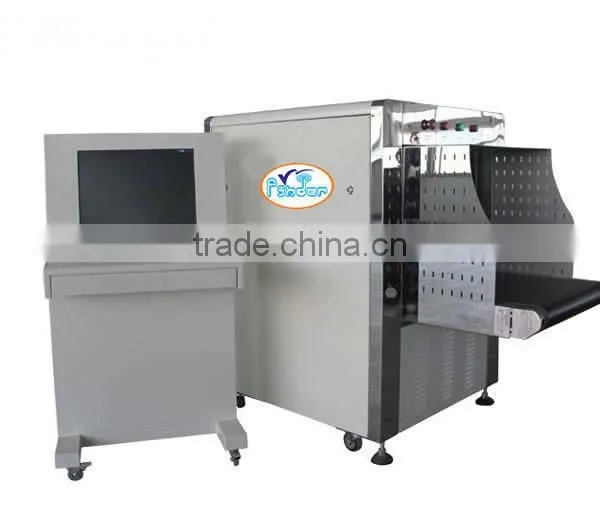

Conveyor Load X Ray baggage Scanning machine for inspection
Applications:
Airports,
Transport terminals,
Buildings,
Factories (to find needle in clothing, shoes, bags),
Courthouses,
Embassies,
Military installations,
Prisons,
Hotels,
Schools ,
Convention centers,
Security checkpoints,
Special events location
Competitive Advantage:
Integrated, cost Effective, Turn-Key Security
Fit for small Baggage and Parcel Security Inspection.
Increased detection capability
Friendly interface for ease-of-use
Reliable performance and uncompromising value
Specifications:
Tunnel Size: |
650(W)*500(H)mm |
Conveyor Speed: |
0.22m/s |
Conveyor Max Load: |
150kgs |
Dose per Inspection: |
<2.9 μGy/h |
Resolution: |
<0.101mm Metal Wire |
Penetration: |
34mm Steel |
Film Safety: |
Guarantee ISO1600 Film |
X-ray Leakage: |
<0.05 μGy/h (at a distance of 5cm From external housing) |
Generate direct: |
Upward |
Generate angle: |
80 degree |
Anode Voltage: |
100-150Kv |
Anode power: |
0.4 to 1.2mA |
Cooling / Duty Cycle: |
Oil Cooling /100% |
X-ray Sensor: |
L-Shaped Photodiode Array (mono-energetic), 12bit Deep |
Monitor: |
High Resolution Color, LCD Accord, 17 inch |
Image Processing: |
Edge enhancement, image strengthening, image lightening, reducing darkening, image returning, image retrieval. |
Image Grey Level: |
4096 |
Image Max Resolution: |
1024 * 1280 pixel |
Image Processing: |
24bit for processing real time |
Image storage: |
Storage 60000 pictures in real time |
Zones & Zoom: |
1-9 Image regions, 2, 4, 8, 16 Times Enlarge, Whole screen continuous observation |
Operation temperature/Humidity: |
0℃-45℃/20%-95%(non-condensing) |
Storage Temperature/Humidity: |
-20℃-60℃/20%-95%(non-condensing) |
Operation Power: |
220VAC(±10%)50±3Hz |
Power Consumption: |
1.1 KW (max), 0.3KW(working) |
Noise: |
<58db |
Strong plywooden case suitable for delivery by sea or by air
Our engineer can go overseas for big project guidance and design
The Warranty can prolong depends on customer requirements
