X-ray baggage inspection machine for large station or subway station

FOB Price

US$ 18,000 - 19,500 / Set

1 Set(Min. Order)

Port shenzhen or Guangzhou
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	Vfinder
Model Number	VX100100

Packaging Details

Strong plywooden case box

Product Description

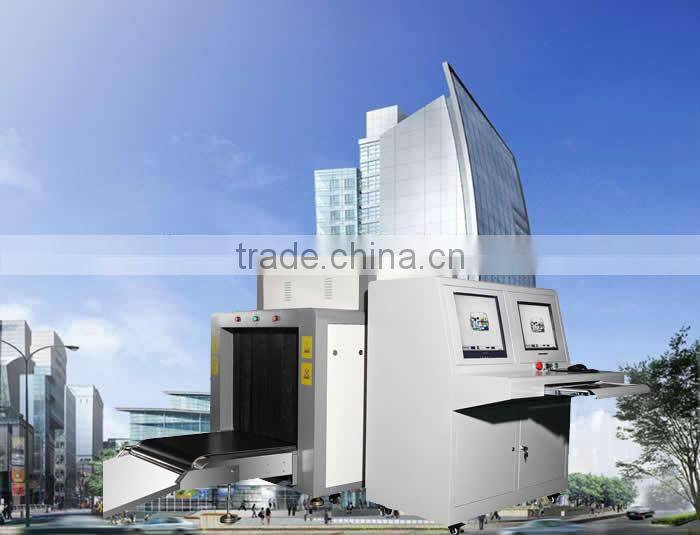

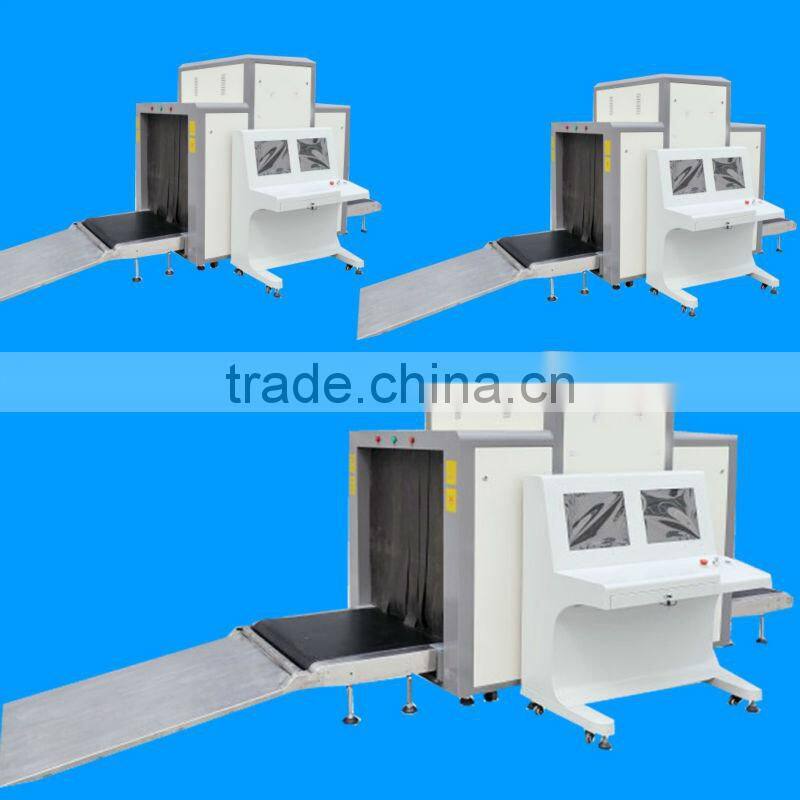

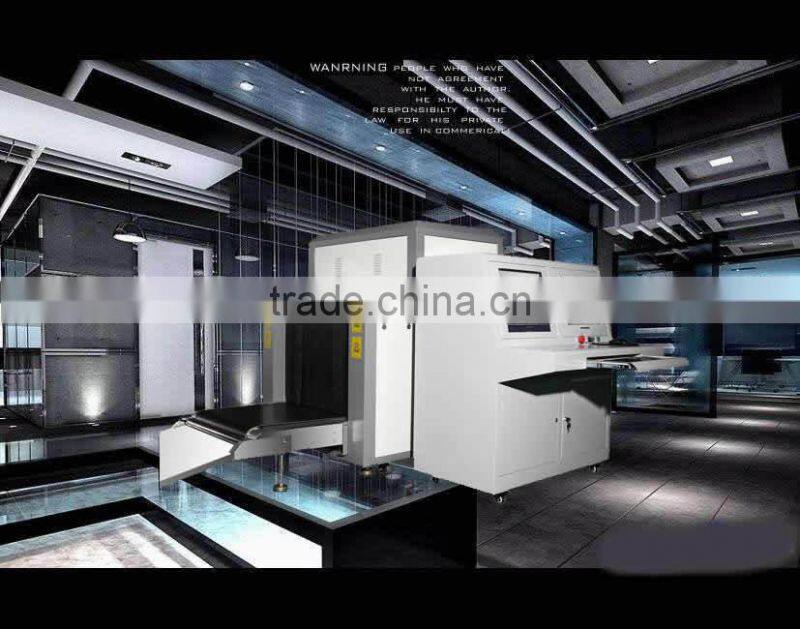

X-ray baggage inspection machine for large station or subway station

Advantages

1. With equipment to save electricity

2. Famous brand spare parts:

(1). Spellman brand generator from the USA

(2). Hamamatsu brand detector from Japan

(3). Interroll brand Roller from German

3. Protective cover on lead curtain to avoid lead pollution

4. Sound and light alarm

5. Local network supported

Feature

♦ Original Hamamatsu detectors, image quality, Omron electrical components.Enhance the overall quality

♦ Global leading parameters: the inspection report issued by the Ministry of Public Security, shows that each parameter is ahead of other products, more details in the inspection report.

♦ Energysaving design: The machine can sense objects automatically,if there is luggage on the machine will be operating, if there is no luggage,it'll be quiet. (Optional)

♦ A key shutdown control: simply rotate the key when clicking shutdown,safe shutdown automaticly ,reduce equipment failure.

♦ Environmental-friendly Design: lead shade with protective film, prevent lead from hand contact, avoid lead pollution.

♦ Dynamic screen switching: when it is stationary screen it can be switched and when it is dynamic it also can switch freely.

Product Certification

♦ Strict quality internal control , double-check principles of engineering and production

♦ Safeguard measures for machine parts

♦ Through the testing by Ministry of public security and police use electronic product quality testing center

♦ Through the EU CE certification

♦ Through the ISO9001 quality management system certification

♦ Through the ISO14001 environmental management system certification

♦ Through the GB/T28001 occupation health and safety management system certification

♦ Through thes provincial Environmental Protection Department of radiation safety certification

♦ Through the provincial occupation health inspection center detection of radiation

♦ Through the the people's Republic of China State Bureau of copyright of computer software copyright registration certificate

♦ Double soft certification

X-ray Generator

Ray Beam direction	Top-illuminated
Tube current	0.4~1.25mA(adjustable)
Anode voltage	100~160 kV(adjustable)
Angle	90°
Generator cooling/working periods	Sealed oil bath with forced air/100%

Image performance system

X-ray sensor	L type photo-diode array detector(Multi-energy), 12-bit
Monitor	high resolution 19 inch LCD SamSung monitor
Color quality	24-bit real-color
Console	full package sealed display, connecting cables can be adjusted according
Edge Enhancement	object contour edge is more distinct
Super Image Enhancement	image detail is more distinct
High-penetrate strength display	increase brightness of dark area in image to display object which is behind high-absorptive mass distinctly
Low-penetrate strength display	increase contrast of low absorptive mass to display it distinctly
Magnifier	function of partial enlargement
Brightening/dimming	increase brightness of image/decrease brightness of image
Image recurrence	display previous twenty images and process any one of them
Image restoration	restore image to initial status at the time of stopping conveyor
Image storing	real-time store more than 100,000 images and process it in operating status
Film safety	for ISO 1600

Multi-energy function

Multi-energy color	orange--organic displays, blue--inorganic displays, green--the mixture
High-energy / low-energy	switching display two energy , high-energy display metals, low-energy displays non-metallic
Drugs explosives Auxiliary	Auxiliary detect drugs ,explosives and other dangerous items
Alarm by sounds and light	alarm by sounds and light when conform to condition

Environment]

Operating temperature / humidity	0℃~45℃/20%~95% (non-condensing)
Storage temperature / humidity	-20℃~60℃/20%~95% (non-condensing)
Voltage	220VAC(±10%) 50±3Hz
Power consumption	1.0KW(max)
Noise level	< 55dB (A)

Technical standards	Technical parameters
Tunnel size	1010(W)×1010(H)mm
Conveyor speed	0.22m/s
Load	200 kg
Resolution	Φ0.0787 mm
Penetration	≥40 mm
Through resolution	0.202mm
Spatial resolution	Horizontal diameter≤1.0mm,Vertical diameter≤1.0mm
Conveyor height from the ground	620mm
Monitor	BenQ 19in LCD Monitor
Storage	500G hard drive to save any image in real time, can store more than 100,000 and can make any image processing, and continuous work to save.
Noise	< 55dB(A)
Operating system	windowsXP
Single check dose	One-time inspection of the X-ray light source irradiation amount ≤ 1.5µGy
Leaking radiation dose rate	Away from any device outer surface of 5cm, the ray irradiation leak rate should be < 0.05µGy/H

Applications

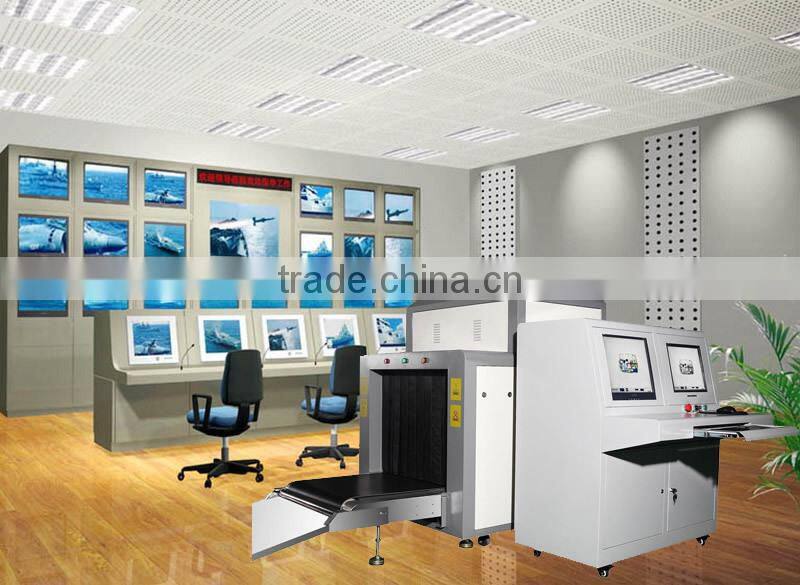

This is a X-ray security product for larger channel size , mainly for large stations, railway stations and other places of security checks, larger parcels ,Baggage ,luggage trunk can be detected, so it is widely used in the detection of bulky items.

Packaging & Shipping

strong plywooden case

shipment can be By sea

Our Services

Our sales team can give feedback within 12 hours after receive your inquiry

Company Profile

Dongguan V Finder Electronic Technology Co., Ltd.

DongGuan V Finder Electronic Technology Co;Ltd is a professional Large Scale manufacture of all types of Industrial metal detector,Security metal detector . Security x ray machine .check weigher integrating development and production together . All of our products concentrate and center on detection measurement technology .Our mainly products includes walk through metal detector.hand held metal detector.food metal detector .industrial metal detector .ground metal detector . Security x-ray baggage luggage scanner . Check weigher .weight detector. Needle inspection and detector and related products .Our company Located in the manufacture of capital "DongGuan City .Between Guangzhou and HongKong. We enjoy convenient Express. Air and Sea transportation Our company employee more than 50 workers. Through the efforts of our entire stuff . Our products already widely used in the international market.We have the customers in USA. Australia .Brazil.Educator.Germany.Greece Russia ,Nigeria .Saudi Arabic ,Ukraine.Bulgaria and other 40 countries . On last and this year our security metal detector and x ray baggage scanner successful finished support 2015 Nigeria President election security Mission. Outstanding finished the GuangDong International Modern furniture Fair and the 2015 Sudirman Cup Security protection . Our company promise : reasonable prices, short production time satisfactory after-sales service Mutual development, mutual benefits Our company can supply :Free logo printing Free model design Free solution adviser Full OEM and ODM We have a improve PMC control .Quality assurance and strictly Quality control Section . From material enter into our basis and before shipping . It will go through a overall strict inspection . We welcome new and old customers contact us for future business relationships and mutual success!
