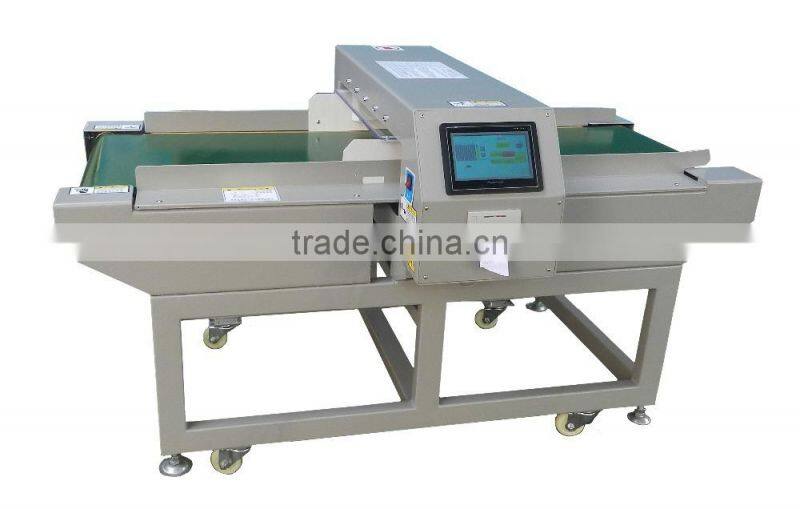

Help CenterIntelligent Needle Metal Detector /metal Detector for Pillow
Related Products
-
Needle Detector Equipment for Garments, VFG Series Detector Machine for Broken NeedleUS$ 1,700 - 2,100MOQ: 1 Set -
Needle Detector Equipment for Toys, China Detector Machine for Broken NeedleUS$ 1,700 - 2,100MOQ: 1 Set
-
VFG-700K Digital Touch Buttons Needle DetectorUS$ 1,800 - 2,100MOQ: 1 Pint
-
VFG-900 Double Sensor Head Conveyor Needle Detector ManufacturerUS$ 3,000 - 3,300MOQ: 1 Set
-
VFG-900 Double Sensor Head Conveyor Needle DetectorUS$ 3,000 - 3,300MOQ: 1 Set
Dong Guan V finder electronic technology co;ltd is a professional needle detector .
metal detector and related industry equipment manufacture .
We produce and customized various kinds of hand held needle detector.table needle detector . Conveyor belt needle detector . Conveyor belt metal detector and so on related
Equipment .
New Function :
Top advanced CPU system inner control. Can process the detect signal aromatically.Then transfer the signal to show on the Touch screen display .CPU according to customer requirement alarm automatically.
Full touch screen display .Clear and accuracy show the detect action and details
Test result print function .Takes of Epson print . The data can keep for a long time.
Takes of High feature strong magnet make sure the detect result stable and accuracy .
General Specifications
Equipped with Vfinder microcomputer chips from USA for digital signal management, it can analyze the different channel signals and improved the detection reliability.
Special inducing design in the detection field, the sensitivity and anti-disturbance ability are greatly improved, and it is not disturbed by the environment.
Unique inducting design of balanced magnetic field to meet the needs of different clients, especially for the detection of garment accessory.
With digital display in Chinese, touching screen of films. It is convenient for operation and management.
The perfect combination of powerful functions and simple operation is also a friendly philosophy of design.
Equipped with the intellectual location displaying system, which can indicate the location of the needle.
The intellectual counter system can calculate the qualified and unqualified objects amount.
Equipped with safe lock only, which can lock the sensitivity, so that it is convenient for management.
Digital sensitivity regulation, the induction strength can show the disturbance and Iron content.
Equipped with light control automatic alarm and automatic power off function.
Short parameter :
MODEL |
VFG-700KT |
||||
Detection method |
Magnetic induction.digital process |
||||
Detection ability |
≥FeΦ0.8 |
≥FeΦ0.8 |
≥FeΦ1.0 |
≥FeΦ1.2 |
≥FeΦ1.5 |
Detection Height |
100mm |
120mm |
150mm |
200mm |
250mm |
Detection width |
Net width 600mm-non-standard sizes(custom) |
||||
Detection adjustment |
Touch screen adjust the level 1-12 |
||||
Alarm method |
Sound/light alarm and return, then restarts again |
||||
Power supply |
Ac220V 50-60Hz |
||||
Pated output |
140W |
||||
Machine Size |
L1820mm×W1050mm×H900mm |
||||
Weight |
280KG |
||||
Use Range :
Garment .Textile.underwear .towel. Sanitary and so on industry .
