Product Description
Special helical spring structure Sorghum suction machine is a new type of agriculture, industrial machinery, through the pneumatic conveying grain material, suitable for food, plastic bulk handling operations, all sorts of small particle materials such as pipe layout can be used to level, tilt, vertical conveying material.
Structure of product
· It has the feature of small volume, large power, convenient to carry.
· The power source can adopt the single phase which is applied for home use.

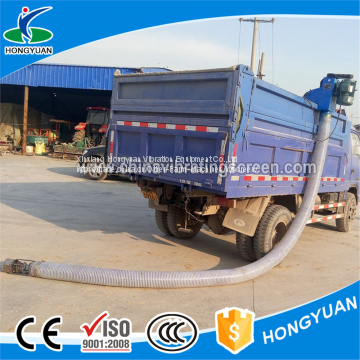

· Man power saving ideal machine for truck loading.
· Large capacity at 10-15 ton/h
· Customized length is supported(6meters,8meters,10meters is available)
· Lifting height is 3 meters
Detailed Images
1. Screw flight: the material of screw flight is manganese steel, it has good wear-resisting and flexible.
2. Wear-resisting pipe: The material of screw pipe is PVC resin, the PVC resin screw pipe is very good wear-resisting pipe, this will prolong the service lift of screw elevating conveyor.
3. Driving device: Motor, belt pulley, transmission belt and safe cover.
4. Inlet device and discharge device.
- Packing
In standard ply wood boxes
| Model No. | Length (Meters) | Pipe diameter | Loading Capacity(t/h) | Motor phase-power(kw) | Installation | Structure | Conveying height |
| XL-100- 6 | 6 | 100mm | 5-8 | Single phase-220V-3kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-100- 8 | 8 | 100mm | 5-8 | Single phase-220V-3kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-100- 10 | 10 | 100mm | 5-8 | Single phase-220V-3kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-100- 12 | 12 | 100mm | 5-8 | Single phase-220V-3kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-160- 6 | 6 | 160mm | 15-20 | Three phase-220V-4kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-160- 8 | 8 | 160mm | 15-20 | Three phase-220V-4kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-160- 10 | 10 | 160mm | 15-20 | Three phase-220V-4kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-160- 12 | 12 | 160mm | 15-20 | Three phase-220V-4kw | Vehicle mounted | Steel screw blade inside | 3-4m |
⊙ When working, check whether the power supply is reliable and reliable, and should be supervised. If abnormal power is cut off immediately, the equipment will be free of damage.
⊙ During the working process, if there is a blocking of the material, the front cover can be opened, and there is a foreign body in the check box. The foreign body can be taken out.
⊙ Check whether the feed mouth has a cloth, plastic cloth and other entangling materials to clean thoroughly, and then remove some grain (about 1 meter) from the inlet pipe and then open it.
Special helical spring structure Sorghum suction machine is suitable for the farm, dock, station, large grain loading, unloading, cover, out of the warehouse, warehouse, pour the crib, and food processing, feed processing and brewing industries in the production process of bulk and bulk transport, bulk unloading mechanical operation.
Xinxiang Hongyuan Vibration Equipment Co., Ltd. is one of the famous enterprises that manufacture and sell equipments for screening, conveying and elevating.The company is specialized in Vibrating Screen ,Grain Screening Machine ,Belt Conveyor ,Bucket Elevator.
The company is located in the Hi-tech Development Zone of Henan Xinxiang, which is the largest manufacturing base of vibrating screen in China.
