welding rods electrodes
- 30 Ton / Tons per Month
- xingang Port China
- T/T Credit Card
Product Details
Place of Origin: | Hebei, China | Brand Name: | Tops | Model Number: | AWS E6013 |
Material: | Steel Alloy | Length: | 300mm,350mm,400mm | Operating Current: | 60-250 |
Welding Current: | 60-250 | Operating Temperature: | common | Diameter: | 2.0mm,2.5mm,3.2mm,4.0mm,5.0mm |
Application: | Suitable for welding important structures made of low alloy steel. |
Product Description
Specification | |
Product name | Welding electrode |
Model | AWS E7018 E6013 |
Wire diameter | 2.0mm,2.5mm,3.2mm,4.0mm,5.0mm |
Length | 300mm-450mm |
Size | 2.0*300,2.5*300,3.2*300,4.0*400,5.0*400 |
Packing | 5 kg/box,4boxes/carton,50cartons/pallet,or as your requirement |
Customizable | Yes |
Application | Suitable for welding important structure made of low alloy steel |
Sample | Free |
MOQ | 5MT |
Delivery time | Shipped in 15 days after receive payment |
Payment term | T/T,L/C,Western Union |

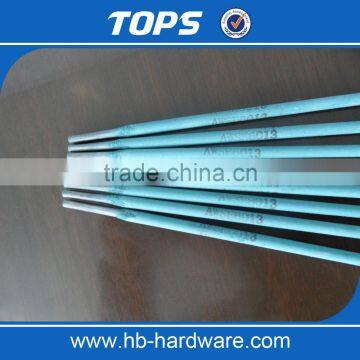

AWS E6013 Welding Electrode
AWS E6013 is a low-carbon steel electrode with a high titaniume coating and can be used on AC. or DC . It has excellent welding technological properties . The arc is stable . The spatter is small. The slag viscosity is moderate.
It can be used freely . The slag is easy to clean. The welded seam is smooth and fine and easy to restrike the arc.
Chemical Composition of Wire(%):
C | Mn | Si | S | P |
≤0.12 | 0.3-0.6 | ≤0.35 | ≤0.035 | ≤0.040 |
Mechanical Properties of Deposited Metal:
Test Item | σb(MPa) | σc(MPa) | δs(%) | AKV(J) |
Guarantee Value | ≥420 | ≥330 | ≥17 | - |
AWS E7018 Welding Electrodes
Description:
AWS E7018 is low-hydrogen potassium coating carbon steel welding rod and can be used on AC. or DC . It has excellent welding technological properties.It can be used various composition . Its evident trait is composed of Fe power and can reduce welding layer.
Chemical Composition of Wire(%):
C | Mn | Si | S | P |
≤0.12 | ≤1.6 | ≤0.75 | ≤0.035 | ≤0.040 |
Mechanical Properties of Deposited Metal:
Test Item | σb(MPa) | σc(MPa) | δs(%) | AKV(J) |
Guarantee Value | ≥490 | ≥400 | ≥22 | ≥27(-30°C) |

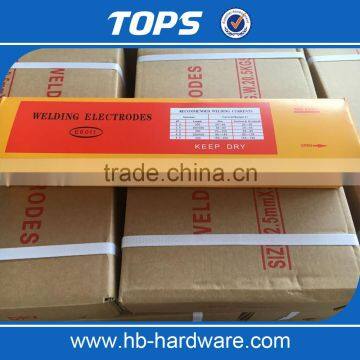

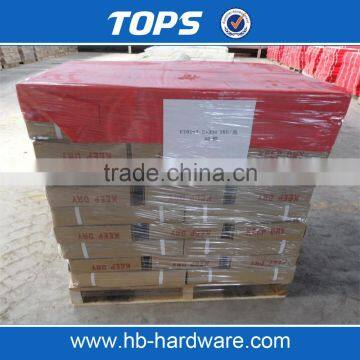

5kg/box,4boxes/carton,or according to customers' requirement
