weighbridge truck scale
1. Weighbridge Platform:
SCS series electronic truck scale is a new generation truck scale which depends on dimastic truck scale advantage.

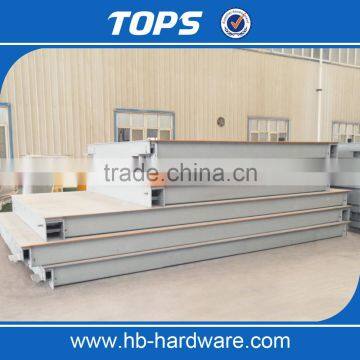

The truch scale is made of U-Shape beams and channel steel,and splices them together into the closed box-type structure,which is a very strong structure.
The welding process adopts advanced welding technology,effectively ensure the flatness and non-deformation of such a large weighing platform,geometrical size and rational distribution of welding stress.
Model Number | Capacity (ton) | Size of Platform (m) | Sections | Value of Scale Division |
SCS-20 | 20 | 3x7 | 4 | 10 |
SCS- (30-60) | 30-60 | 3x7, 3x8 | 4 | 10 |
SCS- (60-80) | 60-80 | 3x9, 3x10, 3x12, 3x14 | 4 | 20 |
SCS- (80-100) | 80-100 | 3x14, 3x16 | 8 | 50 |
SCS- (100-120) | 100-120 | 3x16, 3x18, 3.3x16, 3.3x18 | 10 | 50 |
SCS- (120-150) | 120-150 | 3x18, 3x20, 3.3x18, 3.3x20 | 10 | 50 |
SCS- (150-200) | 150 | 3.3x18, 3.3x20, 3.3x24 | 10 | 50 |
2.Load Cell:
1). Rated load:200MT max
2). Safe overload:125%
3). Transmission baud rate:9600BPS
4). Creep: ±0.02%FS/10°C
5). Protection Class:IP68
6).Recommemded excitation voltate: 10-12VDC
7). Max excitation voltage: 15VDC
8). Operating temperature range:-30~+70 °C
3.Digital Display Indicator
1). Type:D2008FP
2). Communication interface: RS485
3). 0.3'' digital LED display
4). 6 pcs status indications,subtract tare,clear tare automaticallu
5). dynamic test,digital fitering,
6). 24 pcs light touch keyboard.
7). Serial communication interface fixed with standard parallel printing inerface.
Packing: The body of truck scale is nude packed and the accessories part are packed in carton.Install in 20' FCL or 40' FCL .
