Home > Manufacturing & Processing Machinery > Metallurgy Machinery > Steel Wire Nail Making Machine
US$ 3,000 - 8,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
TOPS
Model Number:
Z94
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Port China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Hebei, China
Brand Name TOPS
Model Number Z94
After-sales Service Provided Engineers available to service machinery overseas
Product Description

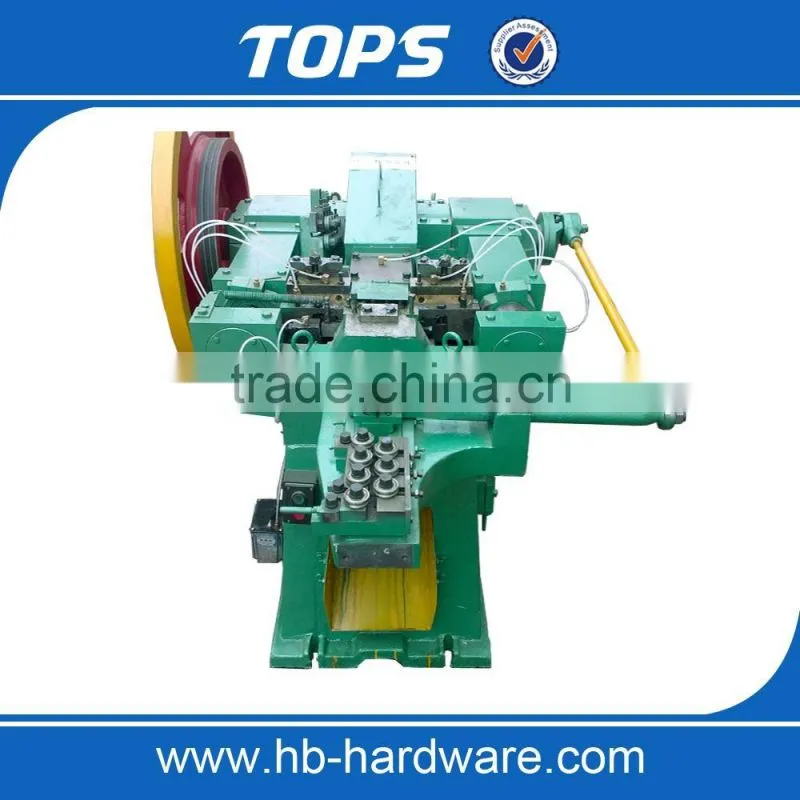

steel wire nail making machine


Features of wire nail making machine
1. This wire nail making machine adopts plunger type structure to ensure the high speed, low noise, less blunt acoustic.It has advanced design, compact structure, beautiful appearance, easy operation, safety and other features.
2. Energy saving, stable and reliable performance. Quality up to standard, the device has small volume, flexible to move, low noise, low consumption, easy installation, etc.


Details Specification:

Detailed Images

Common Wire Nail Making Machine

Type
Z94-1.6C
Z94-2.8C
Z94-3C
Z94-4C
Z94-5C
nail length
10-30mm
20-50 mm
30-75 mm
50-100 mm
70-150 mm
nail diameter
0.9-1.6 mm
1.2-2.8 mm
1.8-3.1 mm
2.8-4.5 mm
4.1-6.0mm
working speed
460 pcs/min.
320 pcs/min.
3000 pcs/min.
280 pcs/min.
220 pcs/min.
Motor Power
1.5KW
2.2KW
3KW
4KW
5.5KW
Weight
1200KG
1450KG
1800KG
2000KG
2000KG
Overall Dimension
(mm)
1500*1300*1200
1550*1000*1065
2000*1400*1400
2200*1600*1650
2496*1512*1205

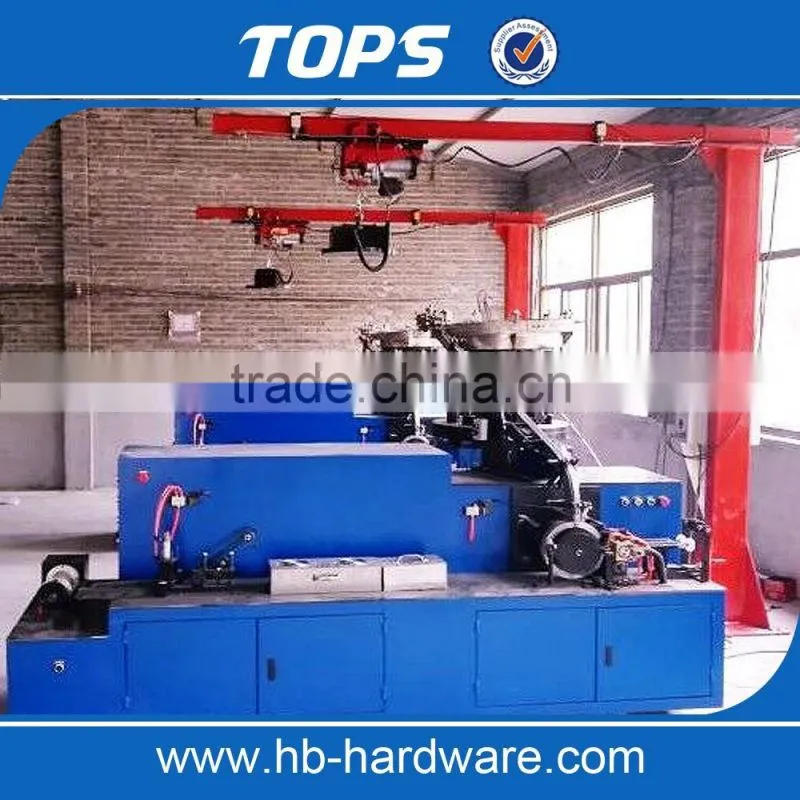

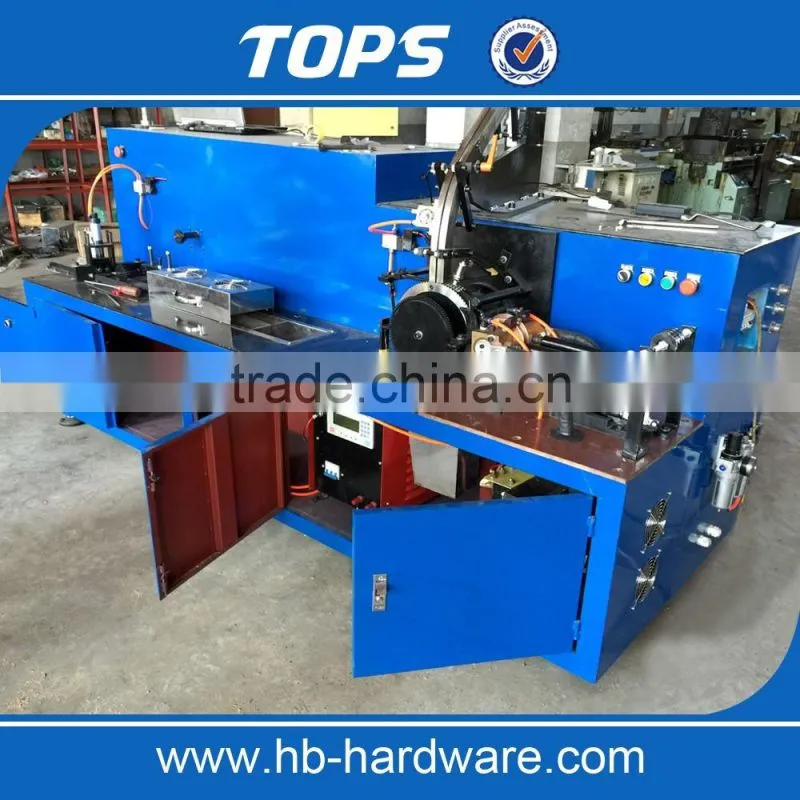

Coil Nail Machine

M/C Type
NCNT 33
Nail Dia.
2.1-4.0mm
Nail Length
25-100mm
Speed/Min
2600 pcs/min
Floor Space
6m×6m×4m
Dimension of Main Frame (mm)
2700×900×1200 (without packing)
Weight of Main Frame
800 KG N.W. / 1100 KG G.W.
Dimension of Vibrate Hopper(mm)
2100×1100×1500 (with packing)
Weight of Vibrate Hopper
200 KG N.W. / 300 KG G.W.
N.W.(Approx)
1400 KG

Auxiliary Equipment

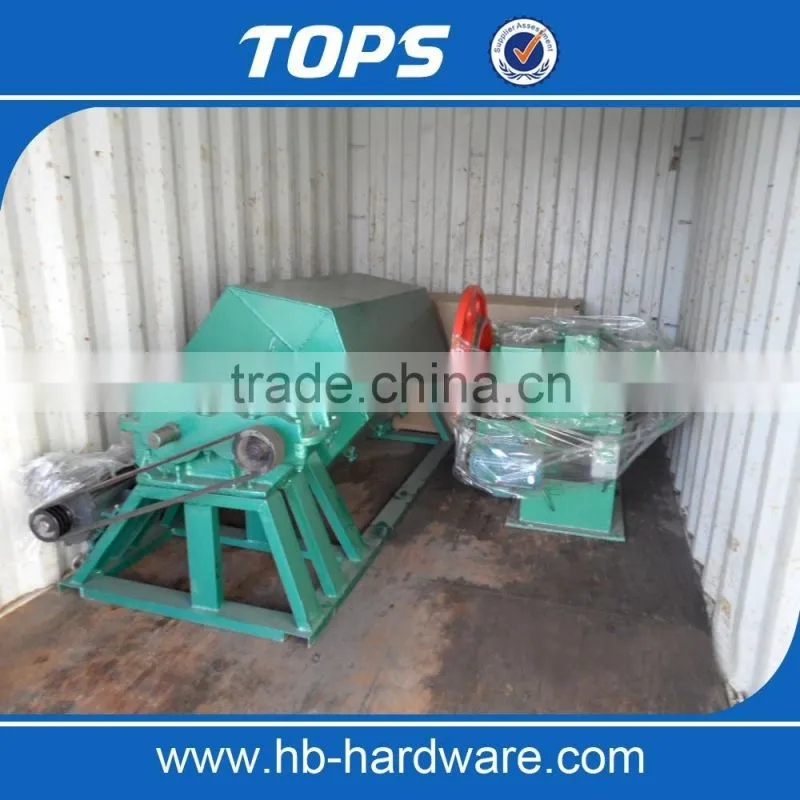

Name:Polishing Machine

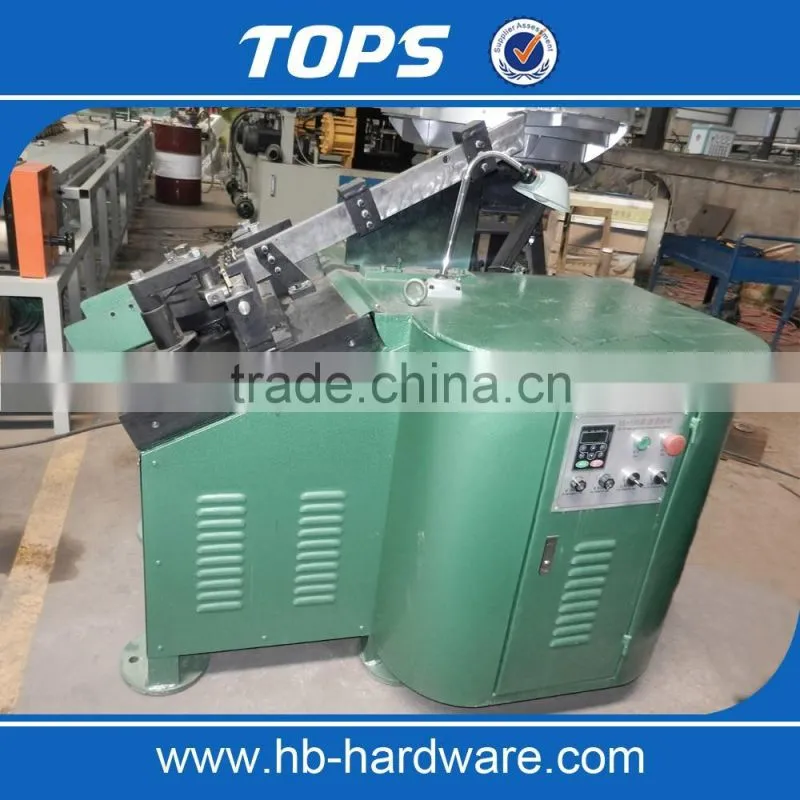

Name: Thread Roller Machine

Name: Knife Grinder

Packing & Delivery

Packing: no packing, loaded into 20'FCL.

Delivery time: 25 days.

Related Products

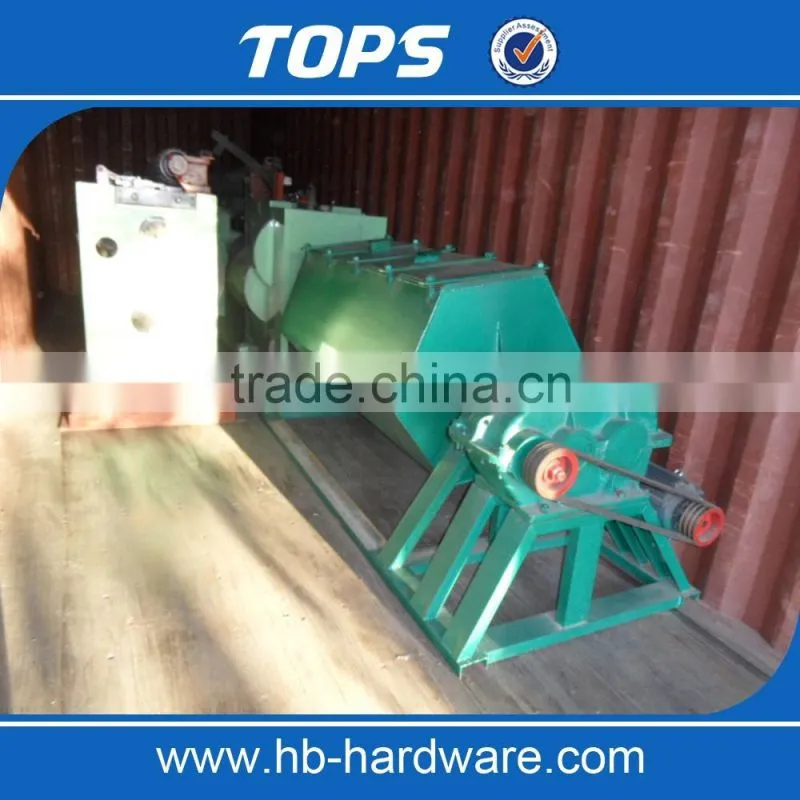

Wire Drawing Machine.

This machine is used for drawing wire rod from 6.5mm/6.0mm to the thin wire which is used for making nails.
