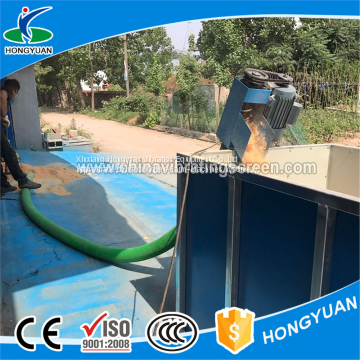

Enough power to support the operation of the feed machine is a new designed for grain suction, entrucking, stack transfer and storage in village.
It has the features of small area, light weight, easy movable, high effeciency and low rate of brokage. the small suction machine is widely used for many places with safty and relibality. such as individual farmer, grain professional farmers and agricultural cooperativies.

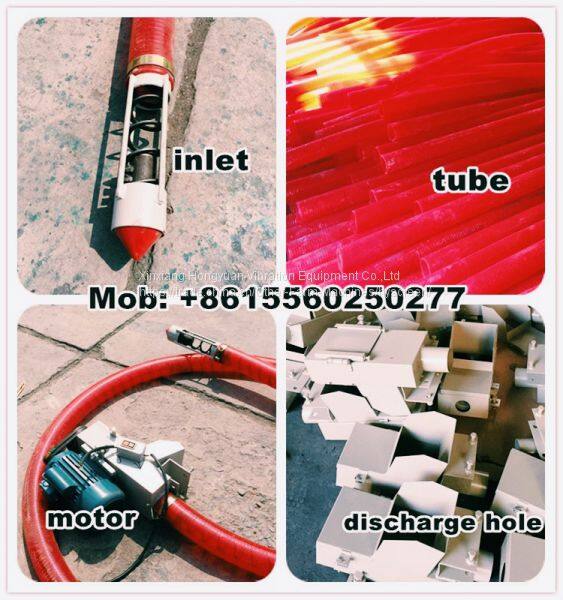

Structure of screw elevating conveyor

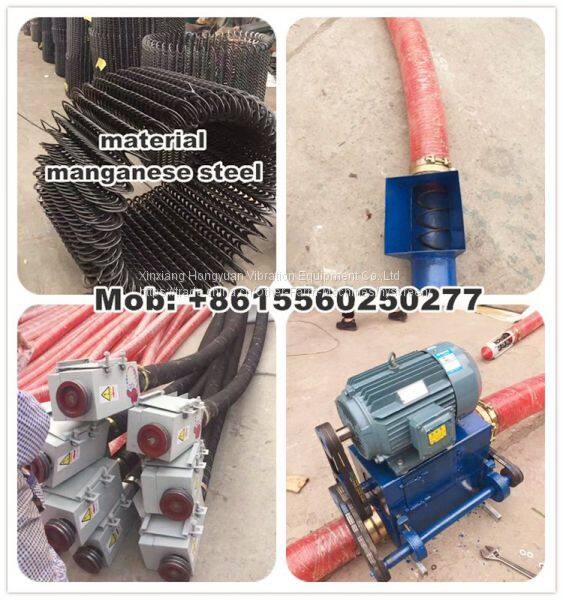

Screw flight: the material of screw flight is manganese steel, it has good wear-resisting and flexible.
Wear-resisting pipe: The material of screw pipe is PVC resin, the PVC resin screw pipe is very good wear-resisting pipe, this will prolong the service lift of screw elevating conveyor.
Driving device: Motor, belt pulley, transmission belt and safe cover.
Inlet device and discharge device.
Enough power to support the operation of the feed machine is easy to carry and operated and is one convenient portable grain inhaling suction equipment.
It has the feature of small volume, large power, convenient to carry.
The power source can adopt the single phase which is applied for home use.

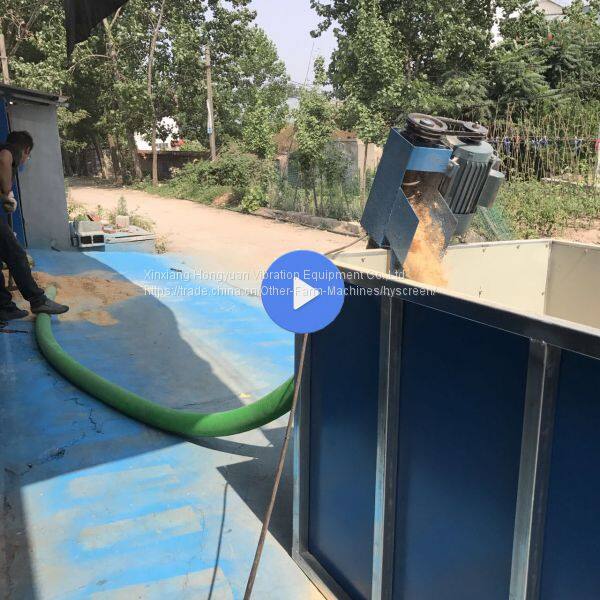

Man power saving ideal machine for truck loading.
Large capacity at 10-15 ton/h
Customized length is supported(6meters,8meters,10meters is available)
Lifting height is 3 meters
| Model No. | Length (Meters) | Pipe diameter | Loading Capacity(t/h) | Motor phase-power(kw) | Installation | Structure | Conveying height |
| XL-100- 6 | 6 | 100mm | 5-8 | Single phase-220V-3kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-100- 8 | 8 | 100mm | 5-8 | Single phase-220V-3kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-100- 10 | 10 | 100mm | 5-8 | Single phase-220V-3kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-100- 12 | 12 | 100mm | 5-8 | Single phase-220V-3kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-160- 6 | 6 | 160mm | 15-20 | Three phase-220V-4kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-160- 8 | 8 | 160mm | 15-20 | Three phase-220V-4kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-160- 10 | 10 | 160mm | 15-20 | Three phase-220V-4kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-160- 12 | 12 | 160mm | 15-20 | Three phase-220V-4kw | Vehicle mounted | Steel screw blade inside | 3-4m |
HYL-DCS Series Filling and Bagging machine
HYL-30 Dust Proof Grain Cleaning and Sieving machine
K type Reciprocating coal feeder
TD 250 Movable Bucket Elevator
