auto anti-theft relay /canbus relay/ time delay relay make in China

Product

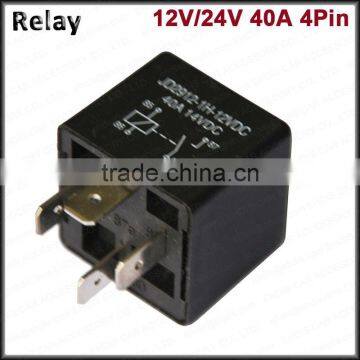

40A relay

Feature

High Capacity, 40A switching capability

1 form A.1form B .1formC.2 form A,contact arrangement

Application

Auto control device

Size

28.0*28.0*25.0mm

Ambient temperature

-40°C~+125°C

Contact Form

1a,1c

Contact Capacity

1a/2a:40A 14VDC

1b:300A 14VDC

1c:40A/30A 14VDC

Coil Voltage

12VDC,24VDC,48VDC

Coil Power

1.8W

Contact Resistance:

≤50mΩ

Initial insulation resistance

≥1,00MΩ

Life

Electrical Life 100,000ops

Mechanical Life 1,000,000ops

Dielectric strength

Between off-contact   500VAC

Between Coil contact  500VAC

Installing form

Tri-clamp connection, socket mount

Environment Temperature

-40°C~+125°C

Weight

32.5g
