Product Details
| Place of Origin | Guangdong, China | Brand Name | EHDIS | |
| Model Number | C03B | Theory | Electromagnetic Relay | |
| Usage | Auto | Size | Miniature | |
| Protect Feature | Sealed | Contact Load | High Power |
Product Description
Product Specification:

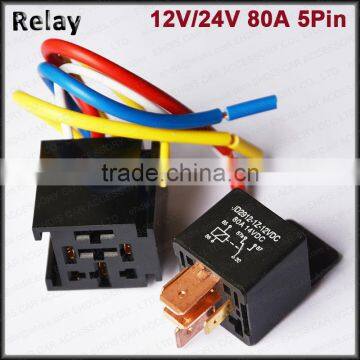

Product | 12V/24V 80A relay |
Feature | high-capacity, 80A switching capability. 1 form A, 1 form B, 1 form C, 2 form A contact arrangement |
Application | Auto control device |
Size | 28.0*28.0*25.0mm |
Ambient temperature | -40°C~+125°C |
Contact Form | 1a,1b,1c |
Contact Capacity | 1a:80A 14VDC 1b:60A 14VDC 1c:80A/60A 14VDC |
Coil Voltage | 12VDC,24VDC,48VDC |
Coil Power | 1.8W |
Contact Resistance | ≤50mΩ |
Initial insulation resistance | ≥1,00MΩ |
Life | Electrical Life 100,000ops Mechanical Life 1,000,000ops |
Dielectric strength | Between off-contact 500VAC Between Coil contact 500VAC |
| Tri-clamp connection, socket mount |
Environment Temperature | -40°C~+125°C |
Weight | 32.5g |
|
