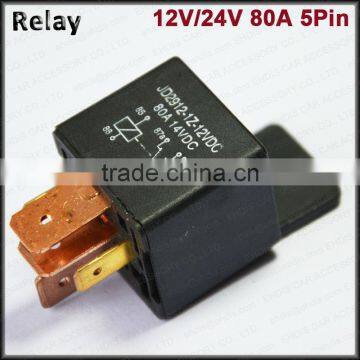

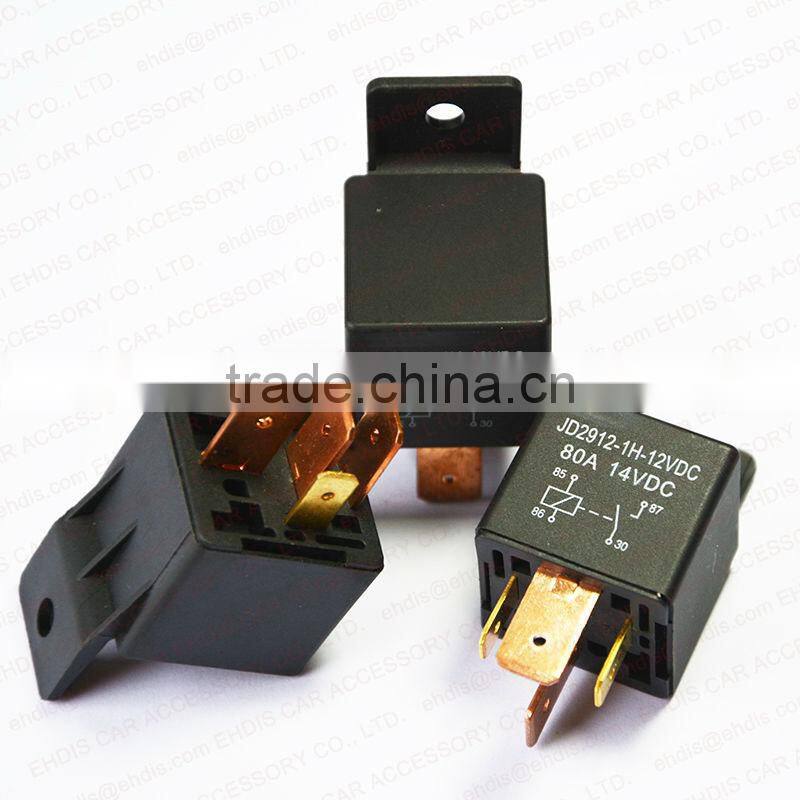

12V 24V Relay 80a 5 Pin Relay

Name: 12V 24V Relay 80a 5 Pin Relay
Brand: EHDIS
SKU: 143777866
Availability: InStock

Dongguan Ehdis Car Accessory Co., Ltd.

US$ 0.1 - 1 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

EHDIS

Model Number:

C04B

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen/guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name EHDIS

Model Number C04B

Theory Electromagnetic Relay

Usage Auto

Size Miniature

Protect Feature Sealed

Contact Load High Power

Specifications

high-capacity
80A switching capability.
used on auto control system

Product Specification:

Product	12V/24V 80A relay
Feature	high-capacity, 80A switching capability. 1 form A, 1 form B, 1 form C, 2 form A contact arrangement
Application	Auto control device
Size	*28.028.025.0mm*
Ambient temperature	-40°C~+125°C
Contact Form	1a,1b,1c
Contact Capacity	1a:80A 14VDC 1b:60A 14VDC 1c:80A/60A 14VDC
Coil Voltage	12VDC,24VDC,48VDC
Coil Power	1.8W
Contact Resistance	≤50mΩ
Initial insulation resistance	≥1,00MΩ
Life	Electrical Life 100,000ops Mechanical Life 1,000,000ops
Dielectric strength	Between off-contact 500VAC Between Coil contact 500VAC
Installing form	Tri-clamp connection, socket mount
Environment Temperature	-40°C~+125°C
Weight	32.5g
