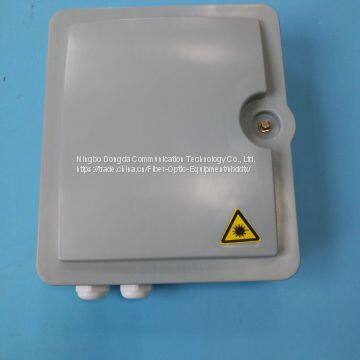

12 core fiber box

FTTH, ONU fiber optic fiber distribution box, optical fiber cable distribution box, optical cable transfer box, corridor junction box, broadband junction box

1., the use of a variety of scenes: indoor and outdoor, hanging wall, hanging pole, new and old projects.

2. molding box, installation backplane design, handsome appearance, small, easy to install, fast, easy to large-scale construction.

The 3. splitter module port is inclined to 15 degrees, and the routing is smooth.

4. series of insert integrable wood combination, convenient expansion, investment saving.

5. indoor cable with special card slot design with movable joint into the box, reliable fixation, high efficiency simple cloth.

6. factory scale line pigtail, realize high quality and low cost rapid deployment.

Wiring optical cable welding

A. for the convenience of welding, the box can be removed from the operation, or can separate the welding disc removed;

B. takes the splitter module rotating frame upwards and takes out the box, and takes off the fiber optic threading slider, so that it can be properly placed;

C. stripping cable length of about 1.5m, stripping at several times around the cable insulation tape, and fastening clamps;

The D. weld line optical cable is shown in Figure 4, and when the operation is complete, insert the module rotating frame into the hinge rotation shaft;

E. welding after SC pigtail connector into the input port of the splitter, such as temporarily opened the "parked in the parking area";

F. fiber reinforced core grounding, the ground wire from the fiber optic cable leads to the ground;

G. fixed the fiber optic threading slider and installed the box on the back of the wall.

I. product profiles:

Ningbo Dongda communication 12 core, 24 core, 48 core fiber box, suitable for FTTH network, telecom network, data communication network, LAN, the product is made of high quality engineering plastic injection molding, can accommodate the largest installed 36 core rubber insulated wire cable, with anti ultraviolet impact and waterproof function, there are 2 cables and 2 entrance cable outlet, wall hanging and pole mounting. Hoop type conditions are used.

Two features and construction instructions:

1: box is made of PC/ABS diameter material, and the service life is over 20 years

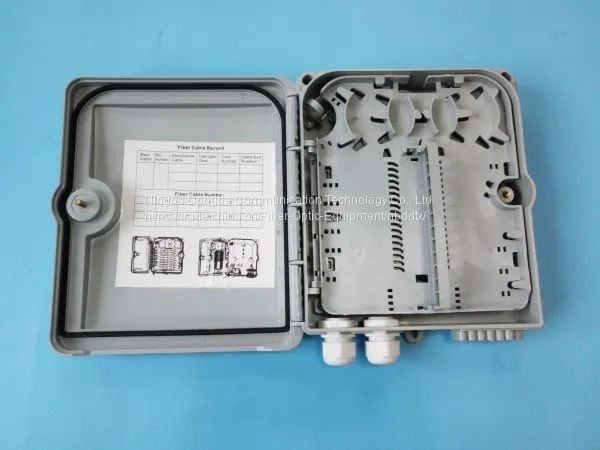

2: double layer structure design, the upper layer is the optical splitter wiring layer, the lower layer is the optical fiber welding layer

The 3: optical splitter module adopts drawer type modular design, and has strong interchangeability and versatility

Three: the main technical parameters (in line with the YD/T988-2007 communication cable box requirements)

1: working environment temperature: -40 degrees C~+60 degrees C

2:: environmental humidity: less than or equal to 95% (+40 ~ C)

3: atmospheric pressure: 70Kpa~106Kpa

4: optical cable access quantity: 1X2 root (lower cable)

5: skin fiber entry quantity: 1X2 root (lower fiber)

6: box door opening angle: 180 degrees

7: adapter optional SC\FC\LC

8: grounding voltage level is not less than 3000V (DC) /1min, no breakdown, no arc.

9: insulation resistance: more than 2X1000M Omega /500V

10: size: size: 380*300*100 (mm)

11: heavy: 5.5KG
