Handness:650-1000Mpa/mm2
MOQ:5 MetricTons
Delivery time:10 days
Environmental passed SGS test
Product Name: Black painted and waxed steel strapping

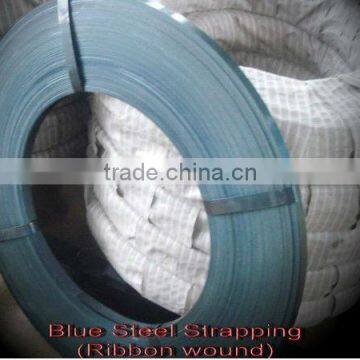

Wound Way: Ribbon wound and Oscillated wound
Matercial: Q195, Q215, Q215B, Q235, Q235B, Q345, 20MnSi steel.
Technical Parameters: |
Ordinary steel strapping |
σb≥65-75kg/mm2(650-750Mpa), elongation:δ5≥3%-5% |
Ordinary steel strapping |
σb≥75-85kg/mm2(750-850Mpa), elongation:δ5≥4%-6% |
|
High quality steel strapping |
σb≥85-1000kg/mm2(8501000Mpa), elongation:δ5≥5-8% |
Specification |
Thickness |
Width |
|
0.36mm
BWG28 |
9.5mm, 12.7mm, 16mm
3/8″ 1/2″ 5/8″ |
|
|
0.40mm
BWG27 |
9.5mm, 12.7mm, 16mm
3/8″ 1/2″ 5/8″ |
|
|
0.45mm
BWG26 |
12.7mm, 16mm, 19mm
1/2″ 5/8″ 3/4″ |
|
|
0.50mm
BWG25 |
12.7mm, 16mm, 19mm
1/2″ 5/8″ 3/4″ |
|
|
0.55mm
BWG24 |
12.7mm, 16mm, 19mm
1/2″ 5/8″ 3/4″ |
|
|
0.60mm
BWG23 |
12.7mm, 16mm, 19mm
1/2″ 5/8″ 3/4″ |
|
|
0.70mm
BWG22 |
19mm, 25.4mm 32mm
3/4″ 1″ 5/4″ |
|
|
0.80
BWG21 |
19mm, 25.4mm 32mm
3/4″ 1″ 5/4″ |
|
|
0.90
BWG20 |
19mm, 25.4mm 32mm
3/4″ 1″ 5/4″ |
|
|
1.0mm
BWG19 |
19mm, 25.4mm 32mm
3/4″ 1″ 5/4″ |
|
|
Inner Diameter: Ribbon wound=200mm/300mm/406mm; Oscillated wound=406mm. We can produce special specification as per customer request, and we can make the edge smoother of the steel packing strips. | ||
Tolerances |
Width |
≤31.75mm |
±0.10mm |
>31.75mm |
±0.13mm |
||
Thickness |
≤0.40mm |
±0.015mm |
|
>0.40—0.70mm |
±0.020mm |
||
>0.70—1.30mm |
±0.025mm |
||
Note: the thickness of the steel strip does not include the coating or the thickness of the wax | |||
Hope have good cooperation in the future.
