Specifications
Sand Screener Manufacturer:1. moves on a circular motion
2. a multi-layer and high efficiency vibrating screen
2013 Sand Screener Manufacturer
Introduction of Sand Screener

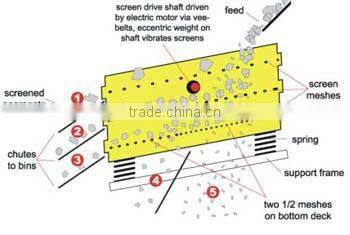

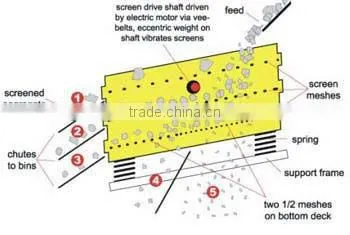

This machine moves on a circular motion. It is a multi-layer and high efficiency vibrating screen.
Cirular vibrating screen, vibration sieve, has the advantages of stable structure, strong exciting force,
high efficiency, little noise pollution, handy maintenance and safety;
Circular vibrating screen, vibration sieve, has been widely used in mine,
construction, transportation,
energy and chemical industries
Specification of Sand Screener
| Model | Sieve Layer | Mesh Size(mm) | Max. Feeding Size(mm) | Capacity (m³/h) | Motor Power (kw) | Weight (kg) |
| 2YK1225 | 2 | 4-50 | 400 | 8-60 | 5.5 | 2500 |
| 3YK1225 | 3 | 4-50 | 400 | 10-70 | 5.5 | 2850 |
| 2YK1230 | 2 | 4-50 | 400 | 12-78 | 7.5 | 3000 |
| 3YK1230 | 3 | 4-50 | 400 | 13-80 | 7.5 | 3600 |
| 2YK1237 | 2 | 4-50 | 400 | 15-86 | 7.5 | 3600 |
| 3YK1237 | 3 | 4-50 | 400 | 16-90 | 7.5 | 4200 |
| 2YK1535 | 2 | 5-50 | 400 | 20-125 | 11 | 4890 |
| 3YK1535 | 3 | 5-50 | 400 | 21-125 | 11 | 5700 |
| 2YK1545 | 2 | 5-50 | 400 | 22-150 | 15 | 5330 |
| 3YK1545 | 3 | 5-50 | 400 | 22-150 | 15 | 5800 |
| 2YK1548 | 2 | 5-50 | 400 | 22.5-162 | 15 | 5980 |
| 3YK1548 | 3 | 5-50 | 400 | 22.5-162 | 15 | 6600 |
| 2YK1848 | 2 | 5-80 | 400 | 25-206 | 15 | 7080 |
| 3YK1848 | 3 | 5-80 | 400 | 32-276 | 18.5 | 7600 |
| 2YK1854 | 2 | 5-80 | 400 | 32-312 | 18.5 | 8150 |
| 3YK1854 | 3 | 5-80 | 400 | 32-312 | 22 | 8840 |
| 2YK2160 | 2 | 5-100 | 400 | 50-475 | 30 | 9780 |
| 3YK2160 | 3 | 5-100 | 400 | 50-475 | 30 | 10800 |
| 2YK2460 | 2 | 5-100 | 400 | 65-550 | 37 | 13600 |
| 3YK2460 | 3 | 5-100 | 400 | 70-620 | 37 | 15600 |
| 2YK3060 | 2 | 5-100 | 500 | 200-900 | 45 |
|
| 3YK3060 | 3 | 5-100 | 500 | 200-900 | 45 | |
| 4YK3060 | 4 | 5-100 | 500 | 200-900 | 45 |
OUR PRODUCT SCOPE:
Mobile Crusher: portable jaw crusher, portable impact crusher, portable cone crusher, portable construction waste crushing plant
Stone Crusher: jaw crusher, impact crusher, Symons cone crusher, spring cone crusher, sand making machine, hammer crusher, ball mill etc.
Auxiliary equipment: vibrating feeder, vibrating screen, belt conveyor, crawler rock drill
More information about our Sand Screener or other machine, please feel free to contact with us by phone or e-mail at any time, we will try our best to cooperate with you!
