Home > Manufacturing & Processing Machinery > Mining Machinery > Mining Crusher > PSGB/PSGD Series Symons Cone Crusher

PSGB/PSGD Series Symons Cone Crusher

Zhengzhou Unique Industrial Equipment Co., Ltd.
PSGB/PSGD Series Symons Cone Crusher thumbnail-1
PSGB/PSGD Series Symons Cone Crusher thumbnail-2
PSGB/PSGD Series Symons Cone Crusher photo-1
PSGB/PSGD Series Symons Cone Crusher photo-2
US$ 2,666 - 99,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Cone Crusher
Application:
Granite, Gravel, Marble, Copper Ore, Quarry, Granite, Aggregate, Marble,Quartz, Sand
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao; Shanghai; Tianjin etc.
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Cone Crusher
Application Granite, Gravel, Marble, Copper Ore, Quarry, Granite, Aggregate, Marble,Quartz, Sand
Motor Type AC Motor
Power(W) 75kw
Capacity(t/h) 45-91t/h
Place of Origin Henan, China
Brand Name UNIQUE
Model Number PSGB/PSGD
Dimension(L*W*H) 2656x1636x2241
Weight 9980kg
Certification CE,ISO9001:2000
Warranty 15Months
After-sales Service Provided Engineers available to service machinery overseas

 Hot Selling Symons Cone Crusher / Mining Simons Cone Crusher

Product Description

 Advantages of Symons Cone Crusher

1. high crushing ratio, high efficiency, high capacity, low operating cost, easy adjustment and economical operation.

2. Our symons cone crusher has exported to many countries, such as Chile, Oman, Philippines, Tanzania etc.

3. It is made of high quality raw material and has reasonable structure design. So it has longer running performance and even granularity.

4. The middle and large size symons cone crusher adopts hydraulic clear chamber. That  reduces its down time.

PSGB/PSGD Series Symons Cone CrusherApplication of Symons Cone Crusher for Sale

It is widely used in the industries of metallurgy, building material, road construction, chemical engineering and silicate. Symons cone crusher is suitable for crushing all kinds of ores and rocks with hardness of medium or above.



Type of  Symons Cone Crusher for Sale



1. This machine has two types: the standard type and the short head type.



2. Standard type has larger discharge opening, and produce coarser crushed product. It is generally used for   medium and coarse material,



3. Short head type has steep crushing cone, which can influence the discharge size, and it is mainly used for produce fine crushed products. PSGB/PSGD Series Symons Cone Crusher

Parameters of Symons Cone Crusher

specificationsstylechamber typebroken cone main diameter(mm)Adjustable Range of Output Size(mm)mouth edge feeding size in the min recommended discharging port(mm)max feeding size(mm)capacity(t/h)motor power(kw)weight(kg)overall dimension(L×W×H)(mm)
900PSGB-0910standard thin9149-221028545-917599802656×1636×2241
PSGB-0917standard thick13-38177515059-163
PSGB-0918standard thicker25-38178150118-163
PSGB-0904Short head thin3-13413527-9010530
PSGB-0906Short head medium3-16766527-100
PSGB-0907Short head thick6-191028559-129
1300PSGB-1313standard thin129513-31137115109-181160224602983×1866×3156
PSGB-1321Standard medium16-38210178132-253
PSGB-1324standard thick19-51241205172-349
PSGB-1325standard thicker25-51259220236-358
PSGD-1306Short head thin3-16645436-16322590
PSGD-1308Short head medium6-16897682-163
PSGD-1310Short head thick8-2510589109-227
PSGD-1313Short head thicker16-25133113209-236
1600PSGB-1620standard thin167616-38209178181-327220432703941×2954×3771
PSGB-1624Standard medium22-51241205258-417
PSGB-1626standard thick25-64269228299-635
PSGB-1636standard thicker38-64368313431-630
PSGD-1607Short head thin5-13706090-20943870
PSGD-1608Short head medium6-198976136-281
PSGD-1613Short head thick10-25133113190-336
PSGD-1614Short head thicker13-25133113253-336







Our Services

 Pre-sale support

Select equipment model;
Design and manufacture products according to clients' special requirement;
Train technical personnel for clients.

Services during the sale
Pre-check and accept products ahead of delivery;
help clients to draft solving plans.

After-sales service support
After we signed the purchase contract and have a certain reputation guarantee, we will contact the professional group that responsible for ship bookings, commodity inspection, commercial invoices, packing list, insurance policy and so on, in order to provide you the perfect goods trading services, until the product you purchased properly to your hands.
We will send a professional and high levels installation engineer team at the same time the product properly to the destination, in order to supply you a full range of products installation services. For some typical problems, our rigorous installed engineers also will do some certain installation debugging training, etc.

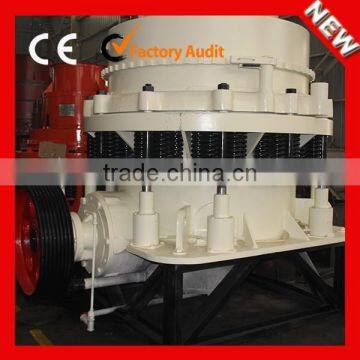

 Photos of simons cone crusher

PSGB/PSGD Series Symons Cone CrusherPSGB/PSGD Series Symons Cone Crusher


Zhengzhou Unique Industrial Equipment Co., Ltd,a reliable and professional supplier of Symons Cone Crusher for Sale
