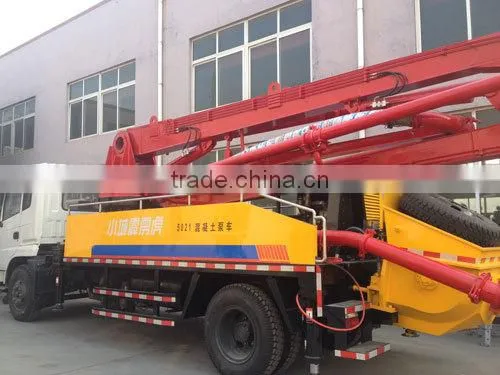

Hot Sale JH50-21 Concrete Pump Truck With Boom

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Power Type	Diesel
Place of Origin	Henan, China	Brand Name	UNIQUE
Model Number	JH50-21	Power(W)	132kw
Weight	15500kg	Dimension(LWH)	945025003500mm
Certification	ISO	Warranty	More than one year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

Hot Sale JH50-21 Concrete Pump Truck With Boom:
1.Easier conservation
2.More stable and more secure
3.Cost-effective

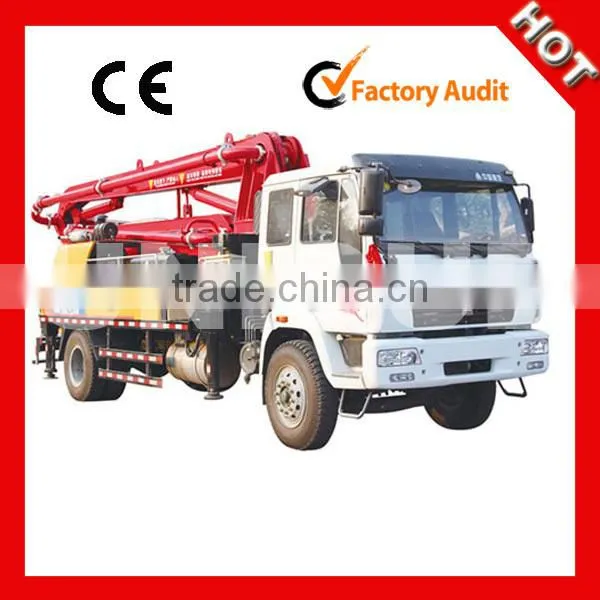

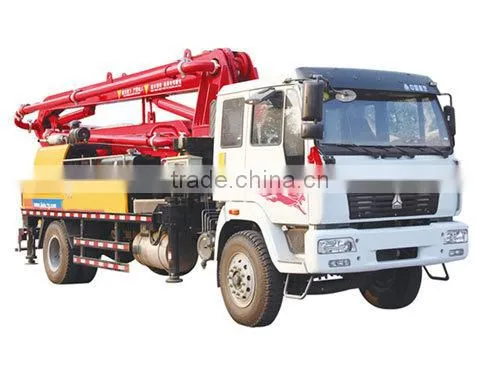

Hot JH50-21 Concrete Pump Truck With Boom

Description of Concrete Pump Truck With Boom :

The small concrete pump truck combines high reliability, economy, safety and durability in one, reasonable matching chassis, power, electronically control and hydraulic pumping system. There are flexible and efficient telescopic booms, small outrigger footprint, easy to move the vehicle. Automatic high and low pressure switch, outlet pressure is high, can meet the demanding requirements of high standard long-distance transport of concrete. Especially for overseas construction projects, low-rise buildings, ports, ideal for interior construction and other construction equipment occasions.

Features of Concrete Pump Truck With Boom :

1. Automatic withdrawal piston pumping system easier conservation

2. Lightweight 18-25 m boom, flexible

3. X-type legs designed to make the operation more stable and more secure

4. Cost-effective

Parameters of Concrete Pump Truck With Boom :

Model	JH	Units	JH50-18m	JH50-21m	JH53-24m	JH50-25m
Pumping system	Max concrete discharging pressure	Mpa	13/7.6	13/7.6	13/7.6	13/7.6
	Rated working pressure	Mpa	31.5	31.5	31.5	31.5
	Pumping frequency	min-1	14/23	14/23	14/23	14/23
	Hopper capacity	m³	0.65	0.65	0.65	0.65
	Filling height	mm	1500	1500	1500	1500
	Hydraulic system form		Open	Open	Open	Open
	Distribution valve model		S tube valve	S tube valve	S tube valve	S tube valve
	Oil tank diameter	mm	φ125	φ125	φ125	φ125
	Concrete cylinder diameter	mm	φ200	φ200	φ200	φ200
	Hydraulic oil cooling		Air cool	Air cool	Air cool	Air cool
Placing boom	Max winding height	m	21	21	24	21
	Turning angle	°	365	365	365	365
	Arm angle	°	90°/180°/365°	90°/180°/365°	90°/180°/365°	90°/180°/365°/540°
	Arm number	section	3	3	4	4
Chassis &Vehicle	Chassis model		DFL1120B	DFL1120B	DFL1120B	DFL1120B
	Chassis model		ZZ1164G	ZZ1164G	ZZ1164G	ZZ1164G
	Wheelbase	mm	4500/4700	4700/5000	4700/5000	4700/5000/5200
	Max motor power	kw/rpm	132/2200 147/2200	132/2200 147/2200	132/2200 147/2200	132/2200 147/2200
	Effluent standard		China IV	EUIII	EUIII	China IV
	Total weight	kg	13500/14000	15500	16500	15500
	Diameter(LWH)	mm	9350×2500×3500	9450×2500×3500	9650×2500×3500	9650×2500×3500
Other	Hydraulic oil tank volume	L	300	300	300	300
	Water tank capacity	L	300	300	300	300
	Lubricating system		Centralized automatic lubrication	Centralized automatic lubrication	Centralized automatic lubrication	Centralized automatic lubrication
	Control system		Manual + Remote	Manual + Remote	Manual + Remote	Manual + Remote
