Well Known HZS75 Fixed Ready Mix Concrete Plant

Specifications

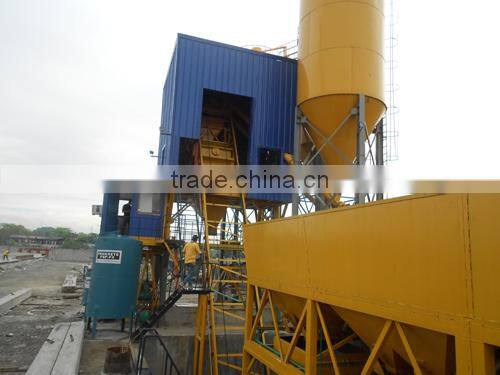

HZS75 Fixed Ready Mix Concrete Plant

Descriptions of Fixed Ready Mix Concrete Plant :

HZS series concrete mixing plant designed by Zhengzhou Unique Industrial Equipment Co., Ltd has advanced technology in the world. It is suitable for the commodity concrete and concrete construction in each kind of architectural project, including the water conservancy , the electric power , the railroad, the road , the tunnel, the arch of bridge , the harbor-wharf and the national defense-project and so on, the applicable scope is extremely wide spread. It can mix the hard concrete, plastic concrete, liquid concrete, and various other lightweight aggregate concrete. The plant has various operational modes as fully automatic, semi-automatic and manual and so, a high degree of automation.

Technical Parameters of HZS75  Fixed Ready Mix Concrete Plant :

Capacity: 75 m³/h
Mixing Time: 60 S
Max Aggregate Size: 60/80 mm
Discharging Height: 3800 mm
Total Power: 90 KW
Total Weight: 54 Ton
Total Dimensions: 18200×10000×19400 mm

1. MIXING SYSTEM

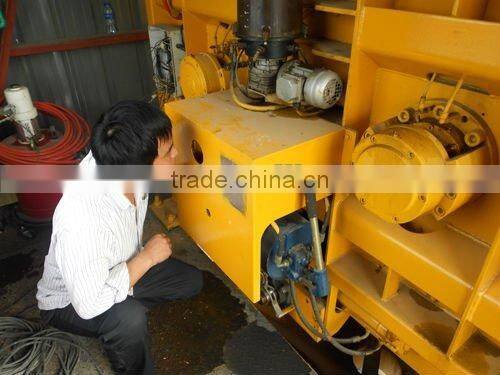

Twin Shaft Concrete Mixer: JS1500

Volume: 2400L

Capacity: 1500L

Mixing blade: 2×9 pcs

Mixing Speed: 23 r/min

Mixer Motor: 35kw

Aggregate Size: 60/80 mm

Weight: 10960kg

Dimensions: 12916×2000×3200mm

2. AGGREGATE SYSTEM

2.1 Aggregate batcher: PLD2400

Volume: 4×12m³

Capacity: 144m³/h

Power: 11kw

Weight: 7610 kg

Dimension:12916×2000×3200mm

2.2 Lift hopper: 1 unit

Lifting Speed: 0.67m/s

Power of Motor: 22kw
3. CEMENT SYSTEM (OPTIONAL)

3.1 Cement silo: 3 units

Capacity: 100t×3=300t

Silo Diameter: Φ3000

3.2 Cement Screw Feeder: 3 units

Diameter: Φ219mm

Length: 9m

4. ADDITIVE SYSTEM (OPTIONAL)

Additive silo Capacity: 1m³

Pneumatic Valve: Φ50 mm

Pump: 3kw

5. WATER SYSTEM

Motor Power: 3kw

Butterfly Valve: Φ150 mm

Capacity: 150m³/h

6. AIR SYSTEM

Air Compressor: 1unit

Power: 1.5 kw

Pressure: 1.0 Mpa

Air flew: 1.2m³/min

7. WEIGHING SYSTEM

7.1 Aggregate Weighing: 1unit

Weighing Capacity: 4000kg

Precision: ±1%

7.2 Cement Weighing: 1 unit

Weighing Capacity: 1000kg

Precision: ±1%

7.3 Water Weighing: 1unit

Weighing Capacity: 400 kg

Precision: ±1%

7.4 Additive Weighing: 1unit

Weighing Capacity: 50 kg

Precision: ±1%

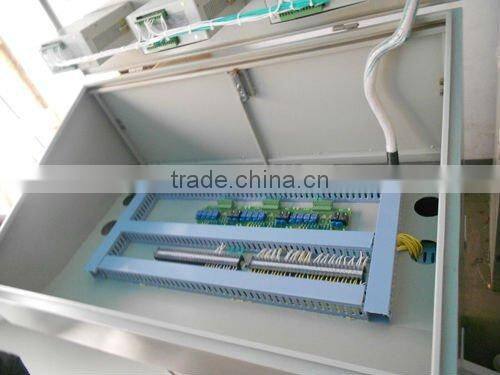

8. CONTROL SYSTEM
PLC command and control operation.

Main electrical components: SCHNEIDER or SIMENSE

17’’ colorful computer

Manuel and Auto Control is freely changeable.
