Specifications
HZS75 Concrete Mixing Plant1.Advanced Electric Control
2.Accurate Weighing System
3.Perfect Maintance System

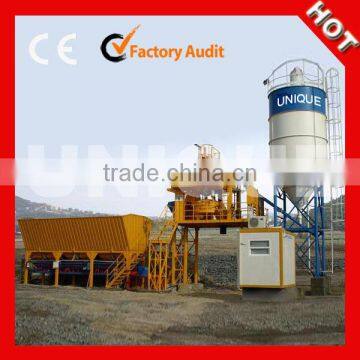

HZS75 Complete Production Line Concrete Mixing Plant
Descriptions of Complete Production Line Concrete Mixing Plant :
HZS series concrete mixing plant designed by Zhengzhou Unique Industrial Equipment Co., Ltd has advanced technology in the world. It is suitable for the commodity concrete and concrete construction in each kind of architectural project, including the water conservancy , the electric power , the railroad, the road , the tunnel, the arch of bridge , the harbor-wharf and the national defense-project and so on, the applicable scope is extremely wide spread. It can mix the hard concrete, plastic concrete, liquid concrete, and various other lightweight aggregate concrete. The plant has various operational modes as fully automatic, semi-automatic and manual and so, a high degree of automation.
Technical Parameters of HZS75 Complete Production Line Concrete Mixing Plant :
Capacity: 75 m3/h
Mixing Time: 60 S
Max Aggregate Size: 60/80 mm
Discharging Height: 3800 mm
Total Power: 90 KW
Total Weight: 54 Ton
Total Dimensions: 18200×10000×19400 mm
1. MIXING SYSTEM
Twin Shaft Concrete Mixer: JS1500
Volume: 2400L
Capacity: 1500L
Mixing blade: 2×9 pcs
Mixing Speed: 23 r/min
Mixer Motor: 35kw
Aggregate Size: 60/80 mm
Weight: 10960kg
Dimensions: 12916×2000×3200mm
2. AGGREGATE SYSTEM
2.1 Aggregate batcher: PLD2400
Volume: 4×12m3
Capacity: 144m3/h
Power: 11kw
Weight: 7610 kg
Dimension:12916×2000×3200mm
2.2 Lift hopper: 1 unit
Lifting Speed: 0.67m/s
Power of Motor: 22kw
3. CEMENT SYSTEM (OPTIONAL)
3.1 Cement silo: 3 units
Capacity: 100t×3=300t
Silo Diameter: Φ3000
3.2 Cement Screw Feeder: 3 units
Diameter: Φ219mm
Length: 9m
4. ADDITIVE SYSTEM (OPTIONAL)
Additive silo Capacity: 1m3
Pneumatic Valve: Φ50 mm
Pump: 3kw
5. WATER SYSTEM
Motor Power: 3kw
Butterfly Valve: Φ150 mm
Capacity: 150m3/h
6. AIR SYSTEM
Air Compressor: 1unit
Power: 1.5 kw
Pressure: 1.0 Mpa
Air flew: 1.2m3/min
7. WEIGHING SYSTEM
7.1 Aggregate Weighing: 1unit
Weighing Capacity: 4000kg
Precision: ±1%
7.2 Cement Weighing: 1 unit
Weighing Capacity: 1000kg
Precision: ±1%
7.3 Water Weighing: 1unit
Weighing Capacity: 400 kg
Precision: ±1%
7.4 Additive Weighing: 1unit
Weighing Capacity: 50 kg
Precision: ±1%
8. CONTROL SYSTEM
PLC command and control operation.
Main electrical components: SCHNEIDER or SIMENSE
17’’ colorful computer
Manuel and Auto Control is freely changeable.
