Specifications
portable pneumatic rock drill:1.Stable travelling system
2.New drilling boom
3.For blast hole
4.Cummins engine

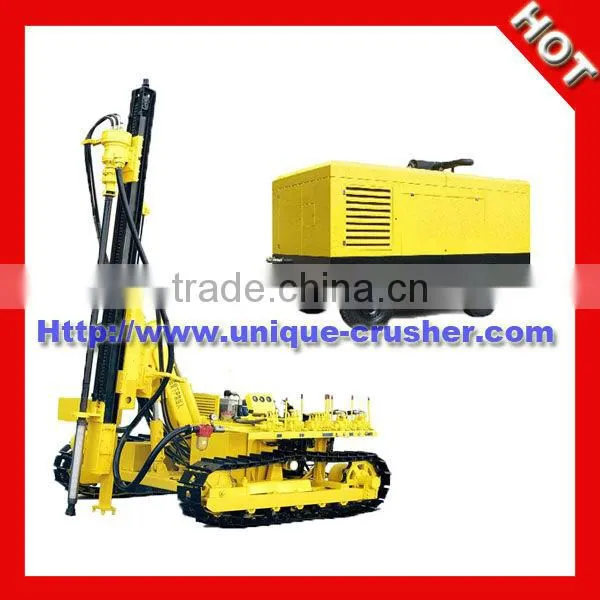

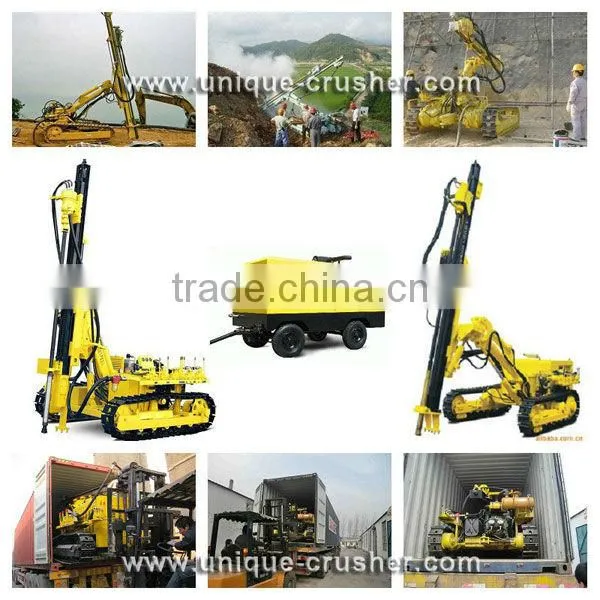

New Type KG930 portable pneumatic rock drill
High Wind Pressure Open-Air crawler drilling rig, a type of portable pneumatic rock drill .
It is maily used for drilling blast hole on rock in the stone quarry plant.
Advantages of KG930 Crawler Driling Rig for portable pneumatic rock drill
1. Safe and Stable Travelling System of KG930 portable pneumatic rock drill
This machine has low gravity center and big ground clearance, and can easily travel on bumpy road. It is driven by special wheel motor. That brings it strong grade-ability and low failure rate.
Equipped with advanced auto-balance and brake system, makes the crawler rock drill travel stably and also greatly reduce its impact force to ensure the drive safety.
Special anti-lock device greatly improves the crawler drilling rig’s reliability.
Vehicle-mounted diesel engine provides strong power, so the crawler rock drill can freely travel without air compressor.
2. Powerful and reliable engine of KG930 portable pneumatic rock drill
Adopt famous 4-cylinder diesel engine as driving force which has advantages of large power, small volume, small vibration and reliable operation.
Adopt patent diesel engine air inlet regulating device (Patent No. : 200820087606.3) and desert air filter three-stage filter. That strengthens the crawler rock drill’s adaptability to severe environment and lengthened the diesel engine’s service life.
3. New Drilling Boom of KG930 portable pneumatic rock drill
Optimally designed luffing mechanism and round drilling boom with the advantages of neoteric structure and easy maintenance greatly improves the drilling hole’s coverage area. That also makes low-order horizontal hole drilling available.
4. Powerful feed mechanism and rotating system of KG930 portable pneumatic rock drill
The new rotating system is composed of orbit hydraulic motor and planetary gearbox. That provides the crawler rock drill, a type of wagon drill, with strong torque reserve and reduce the sticking drilling rate.
The feed mechanism driven by high power hydraulic motor can generate 20 KN lifting power. Adjust the pressure regulating valve on the control valve can got the favorable driving power which is required by the working condition.
Specification of KG930 portable pneumatic rock drill
Specification |
KG930 |
Improved by |
KY130 |
Rock hardness |
F=6-20 |
Hole diameter (mm) |
105-140 |
Drill depth (m) |
25 |
Pressure (Mpa) |
1.0-2.4 |
Air consumption (M3/min) |
≥15 |
Rotating speed (Km/h) |
0-70 |
Lifting capacity (KN) |
18 |
Drill rod specification (mm) |
76×3000/89×3000 |
Gradeability |
30° |
Ground clearance (mm) |
320 |
Walking speed (km/h) |
2.0 |
Drill arm rising angles (°) |
-15~+50 |
Drill arm swing angle (°) |
±45 |
Carriage swing angle(°) |
±50 |
Carriage pitch angle (°) |
180 |
Carriage Compensation (mm) |
1200 |
Overall Dimension (L*W*H)(mm) |
5600×2340×2550 |
Total Weight (Kg) |
5500 |
Note: |
Pneumatic-hydraulic |
|
| |
Comparison between KY130 and KG930 Crawler Drilling Rig
|
KY130 |
KG 930 |
Advantages |
Drill boom |
|
New type drills boom |
Simultaneously drill horizontal hole and vertical hole |
Hydraulic system |
19.2 pump |
30pump, big diameters, new type valve groups, new type joint. |
Flow is increased, resistance is reduced. |
Carriage parts |
Channel Steel Carriage |
thick plate reinforced carriage, pressing plate |
Rigidity is increased, Abrasion is reduced |
Air control system |
Ball valve |
side valve type concussion relief valve |
Easy operation |
Oil pump |
28.2 |
32 |
Flow is increased |
Rotation speed |
60 r/min(1700) |
90 r/min (diesel engine 1700r/min) 120 r/min(diesel engine 2200 r/min) |
Improved by 50% |
Advance speed |
530mm/s |
580mm/s |
Improved by 10% |

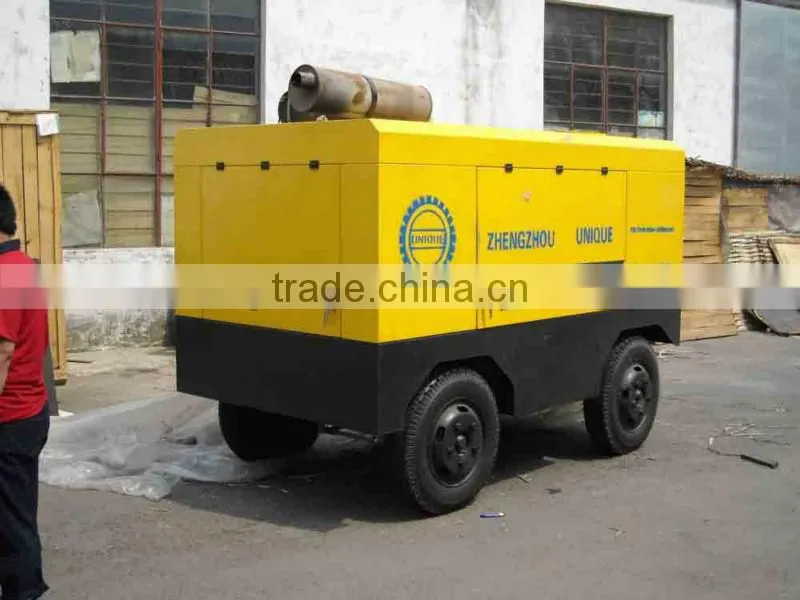

Mobile Screw Air Compressor
Model |
Work pressure |
Capacity |
Diesel engine (hp) |
Weight |
Dimension |
LGCY-15/13 |
1.5 |
15 |
YuChai |
3500 |
3600*1900*2200 |
LGCY-18/17 |
1.7 |
17 |
Cummins |
3500 |
3600*1900*2200 |
We can also supply Crawler Drilling Rig of :
1. low wind pressure: KG910B(KY125) and KG920A(KY120)
2. Medium wind pressure: KG920B(KY125)
3. High Wind Pressure: KG940(KY140)
OUR PRODUCT SCOPE:
Mobile Crusher: portable jaw crusher, portable impact crusher, portable cone crusher, portable construction waste crushing plant
Stone Crusher: jaw crusher, impact crusher, Symons cone crusher, spring cone crusher, sand making machine, hammer crusher, ball mill etc.
Auxiliary equipment: vibrating feeder, vibrating screen, belt conveyor, crawler rock drill
More information about our portable pneumatic rock drill or other machine, please feel free to contact with us by phone or e-mail at any time, we will try our best to cooperate with you!
