Water Well Drill, Water Well Drilling Rig, Crawler Water Well Drill, Tracked Drilling Rig for Water Well

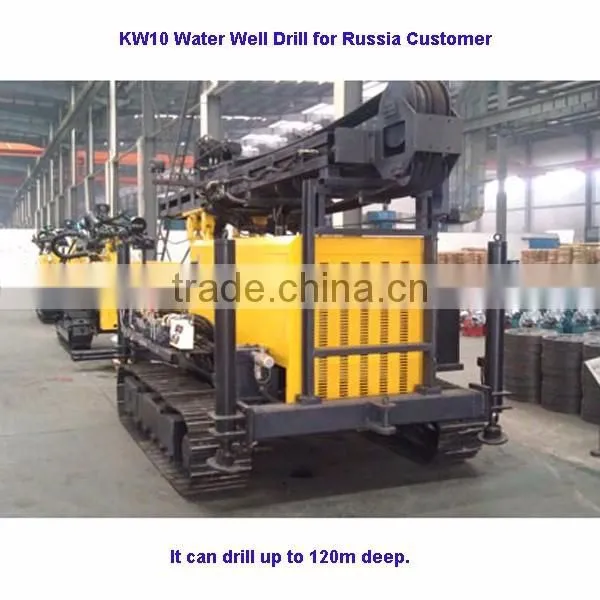

KW10 Multifunction Water Well Drill is an efficient and versatile drilling equipment, which is mainly applied to well drilling, agricultural irrigation wells, borehole ground source heat pump wells and other uses, especially for water projects in the mountains and rock formations.
The rig can work on different formations, hole depth 120m. The rig using new hydraulic technology, supporting high torque hydraulic motor rotation and large bore hydraulic cylinders propel, with famous brand engine powers hydraulic system, two-stage compressor intake air filter and hydraulic systems designed to extend the life of diesel engines. The unique pump design and easy maintenance reduce maintenance costs. Centralized control of the hydraulic console is easy to operate.
The rig adopts construction machinery crawler chassis, strong off-road performance. Independent modular design allows the rig to be put on the truck to increase their mobility. Combined locator, can be adjusted to replace the positioning plate, positioning the centering ensure accurate and reliable based on different types of drill pipe and impactor
Features
Ø Double-motor powerful rotating system
Ø High torque large aperture
Ø Centralized operating system
Ø Double oil-cylinder push system
Ø Safe and stable travelling system
Specifications of KW10 Water Well Drill
Diameter of hole Φ 115-180 mm
Drilling Depth 120 m
Air Consumption 16-30 m3/min.
Working Pressure 10.5-24.6 bar
Ground Clearance 245 mm
Support Cylinder Stroke 460 mm
Feed Cylinder Stroke 1750 mm
Feed Power 30000 N
Lift Power 70000 N
Speed of Rotator 50-100 rpm
Rotation Torque 3200 N . m
Climb Capacity 15 °
Traveling Speed 0-2.5 km/h
Diesel Engine Model YC4D08
Power 58 Kw/80 HP (2400 rpm)
Weight 6500 kg
Dimension 6000×2300×2500 mm
