Mandrel Press, Hydraulic Press, Four Column Press
You May Like
Product Details
| Condition | New | CNC or Not | Normal | |
| Certification | CE ISO |
Product Description

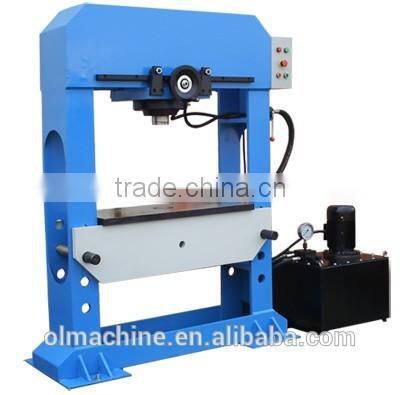

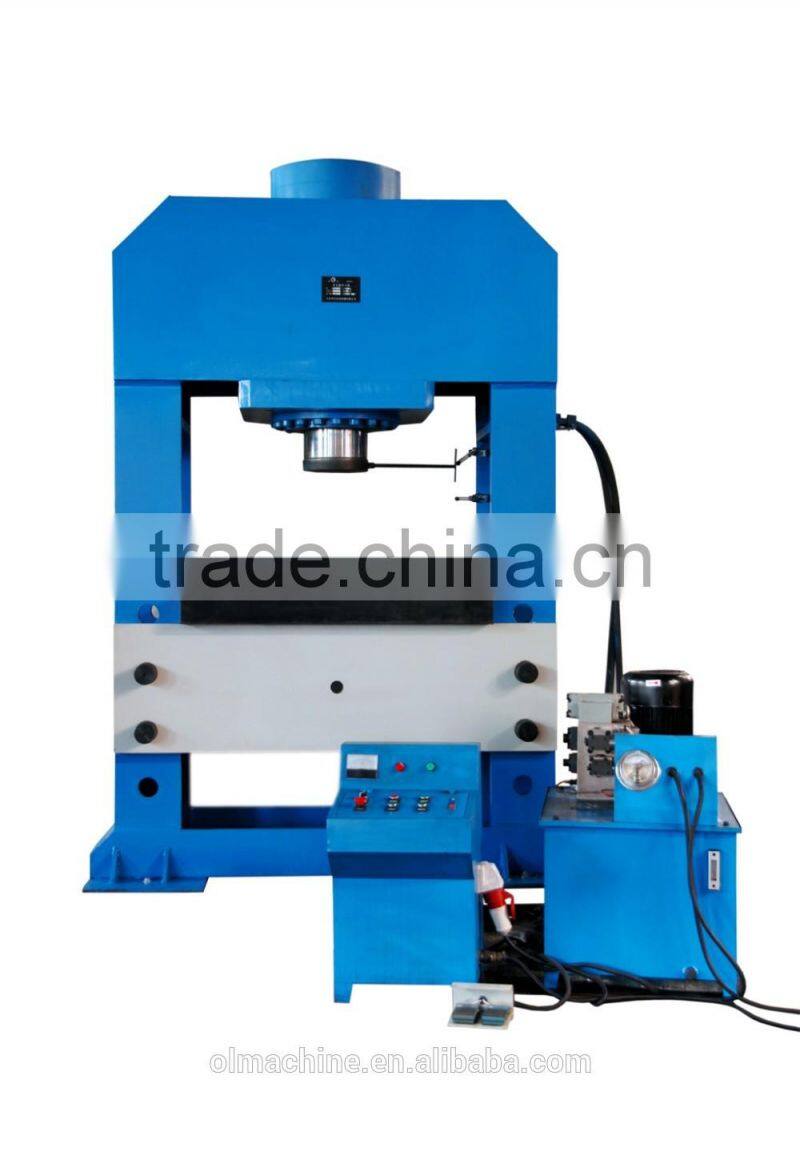

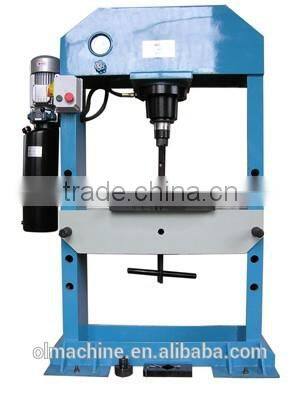

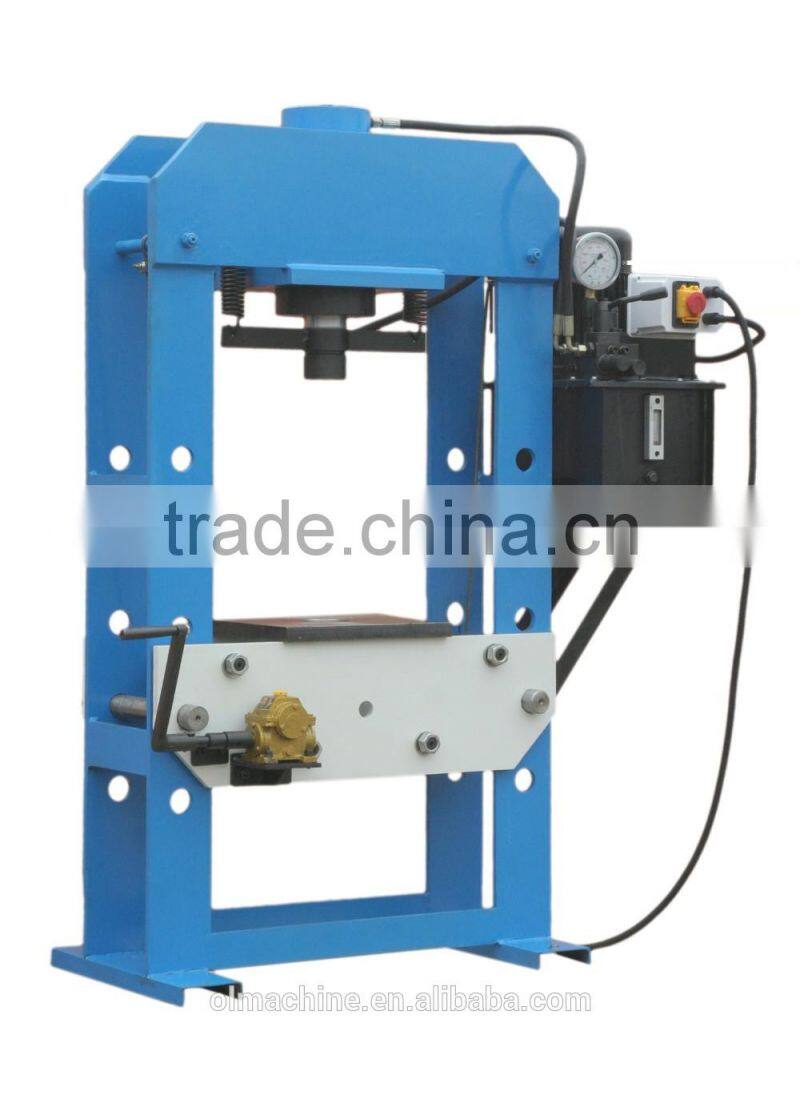

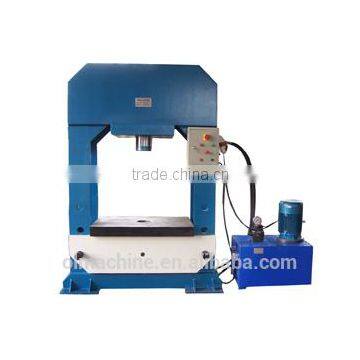

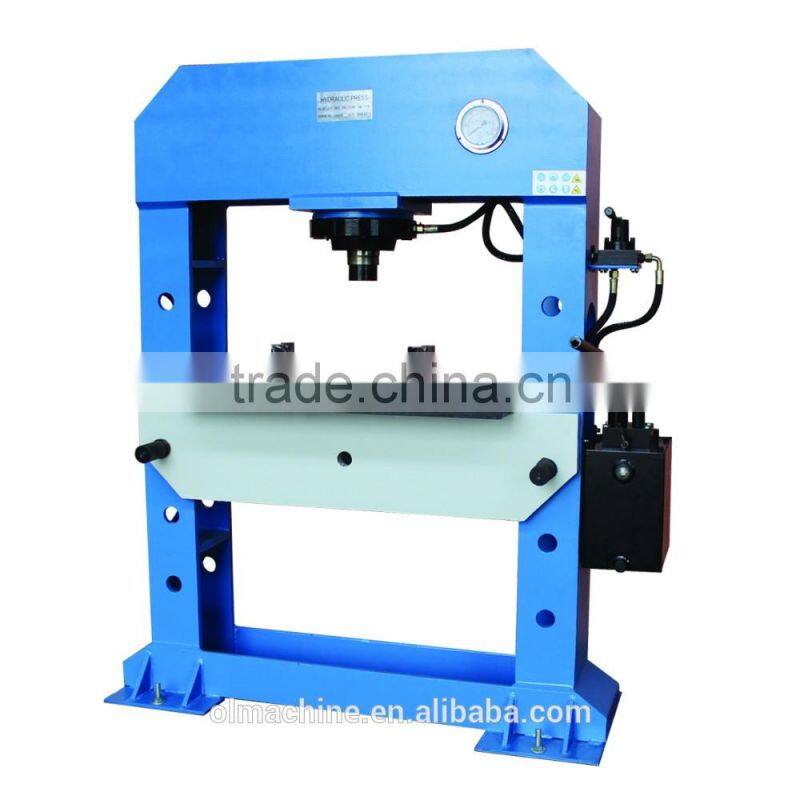

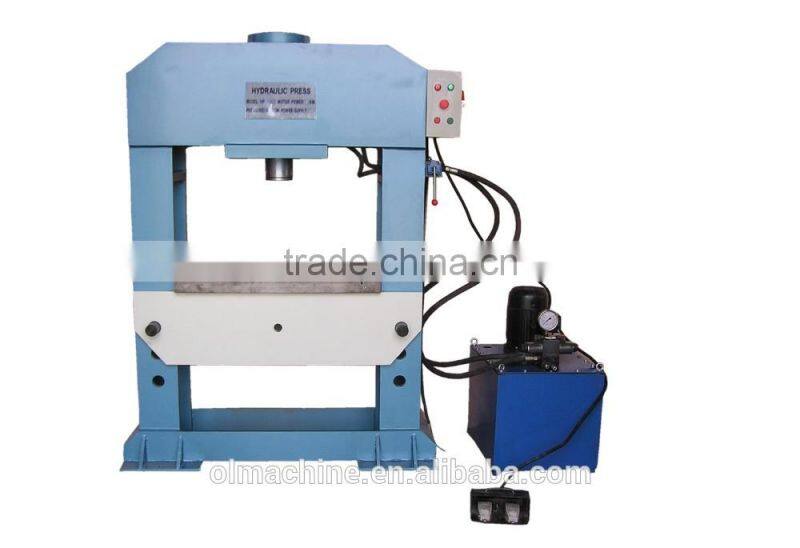

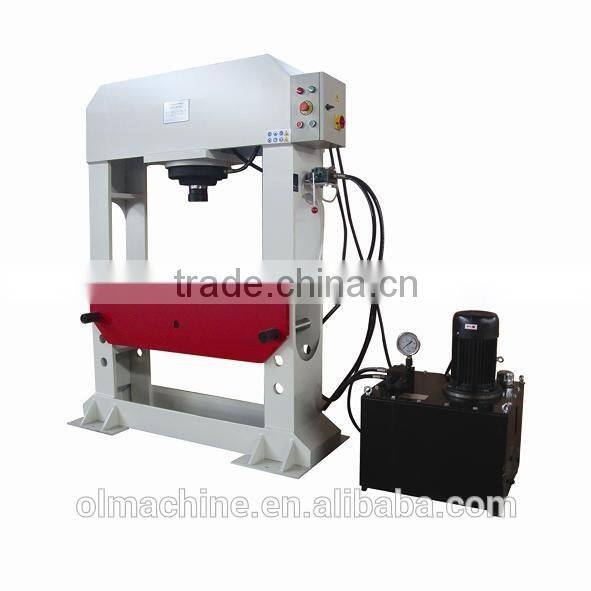

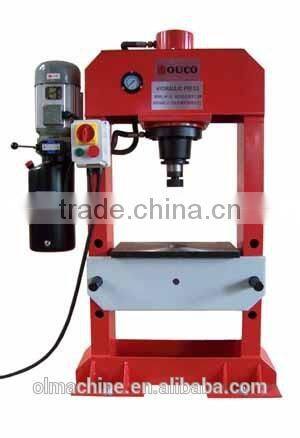

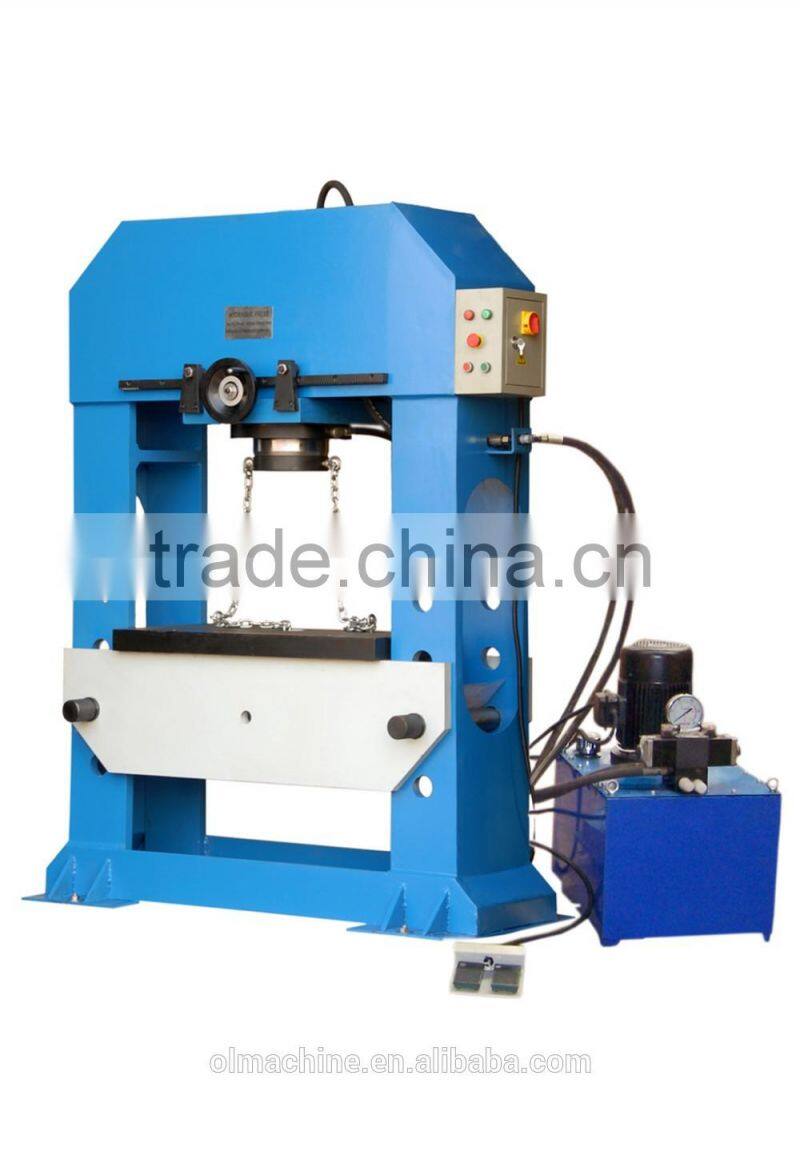

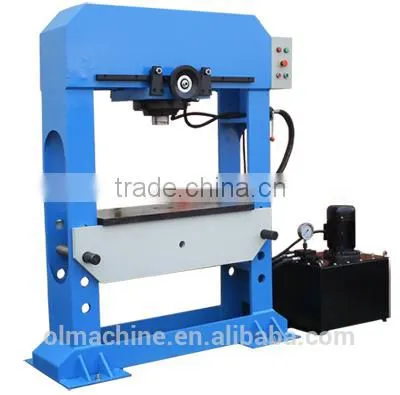

Hydraulic Press (HP model), Hydraulic Press with bending function (HPB model)
MODEL | HP-30 HPB-30 | HP-50 HPB-50 | HP-63 HPB-63 | HP-100 HPB-100 | HP-150 HPB-150 |
CAPACITY(KN) | 300 | 500 | 630 | 1000 | 1500 |
PRESSURE(MPa) | 25 | 25 | 30 | 30 | 42 |
TRAVEL (mm) | 300+270 | 220+405 | 220+405 | 250+405 | 250+405 |
TALE SIZE( mm) | 300*400 | 400*800 | 400*800 | 460*980 | 460*980 |
DIMENSION(mm) | 1160*550*1600 | 1500*650*1950 | 1500*650*1950 | 1840*750*2250 | 1840*750*2250 |
|
|
|
| 730*630*960 | 730*630*960 |
WEITHT (KG) | 420/650 | 980/1100 | 1020/1500 | 1220/1420 | 1350/1750 |
MODEL | HP-200 HPB-200 | HP-300 HPB-300 | HP-400 HPB-400 | HP-500 HPB-500 | HP-250 HPB-250 |
CAPACITY(KN) | 2000 | 3000 | 4000 | 5000 | 2500 |
PRESSURE(MPa) | 40 | 42 | 42 | 45 | 40 |
TRAVEL (mm) | 300+405 | 300+405 | 300+405 | 300+405 | 300+405 |
TALE SIZE( mm) | 500*1000 | 700*1200 | 900*1200 | 900*1200 | 1000*600 |
DIMENSION(mm) | 1940*950*2350 | 2100*950*2700 | 2300*1000*2900 | 2300*1000*2900 | 1950*950*2400 |
| 900*800*1060 | 1100*1200*1350 | 1100*1200*1350 | 1100*1200*1350 | 900*800*1060 |
WEITHT (KG) | 2200/2400 | 4200 | 5500 | 6500 | 3200 |
Mandrel Press
MODEL | HP-10S | HP-20S | HP-30S | HP-50S | HP-63S | HP-100S |
CAPACITY(KN) | 100 | 200 | 300 | 500 | 630 | 1000 |
PRESSURE(MPa) | 40 | 40 | 40 | 40 | 40 | 45 |
TRAVEL (mm) | 180+450 | 200+450 | 200+450 | 200+450 | 250+450 | 250+450 |
TALE SIZE( mm) | 200*300 | 200*300 | 300*400 | 360*500 | 360*600 | 600*400 |
DIMENSION(mm) | 700*450*1300 | 700*450*1300 | 750*500*1500 | 1200*650*1900 | 1200*650*1950 | 1600*620*2000 |
WEITHT (KG) | 180/230 | 220/270 | 260/310 | 320/370 | 460/510 | 620/720 |
Four Column Press
MODEL | HP-50F | HP-63F | HP-100F | HP-150F | HP-200F |
CAPACITY(KN) | 500 | 630 | 1000 | 1500 | 2000 |
PRESSURE(MPa) | 30 | 30 | 30 | 30 | 30 |
TRAVEL (mm) | 260 | 260 | 280 | 280 | 300 |
TALE SIZE( mm) | 500*600 | 500*600 | 500*700 | 550*850 | 550*850 |
DIMENSION(mm) | 800*800*2100 | 800*800*2100 | 980*850*2200 | 1100*950*2200 | 1200*1100*2250 |
| 700*600*1300 | 700*600*1300 | 700*600*1300 | 700*600*1300 | 800*700*1300 |
WEITHT (KG) | 780/980 | 960/1020 | 1060/1200 | 1120/1400 | 1960/2200 |
MODEL | HP-100F1 | HP-150F1 | HP-200F1 | HP-250F1 | HP-315F1 | HP-500F |
CAPACITY(KN) | 1000 | 1500 | 2000 | 2500 | 3150 | 5000 |
PRESSURE(MPa) | 31.5 | 31.5 | 31.5 | 31.5 | 32 | 32 |
TRAVEL (mm) | 300 | 300 | 300 | 300 | 400 | 500 |
TALE SIZE( mm) | 860*560 630*560 | 870*670 670*650 | 970*700 700*700 | 1090*800 800*800 | 1090*800 800*800 | 1640*1200 1200*1400 |
DIMENSION(mm) | 700*1000*1900 1100*700*1150 | 800*1000*2100 1100*700*1200 | 800*1000*2200 1100*700*1200 | 1300*1000*2200 1100*700*1300 | 1300*1000*2200 1100*800*1500 | 1600*1450*2950 1400*800*1500 |
WEITHT (KG) | 1600 | 2200 | 2600 | 3100 | 4600 | 9600 |
C type Press
MODEL | HP-20C | HP-30C | HP-50C | HP-63C | HP-100C |
CAPACITY(KN) | 200 | 300 | 500 | 630 | 1000 |
PRESSURE(MPa) | 25 | 25 | 31.5 | 31.5 | 31.5 |
TRAVEL (mm) | 300 | 300 | 300 | 300 | 400 |
TALE SIZE( mm) | 400*300 | 400*300 | 400*600 | 400*700 | 500*800 |
DIMENSION(mm) | 800*600*1500 | 900*600*1500 | 800*1200*1900 | 800*1300*1800 | 1000*1700*2300 |
WEITHT (KG) | 860 | 1100 | 1380 | 1750 | 2850 |
