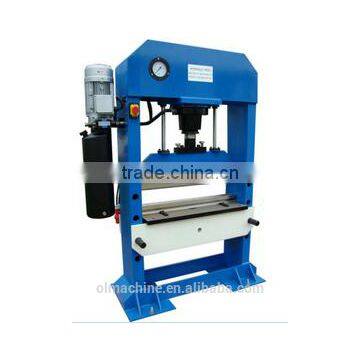

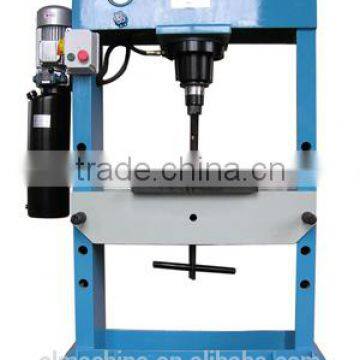

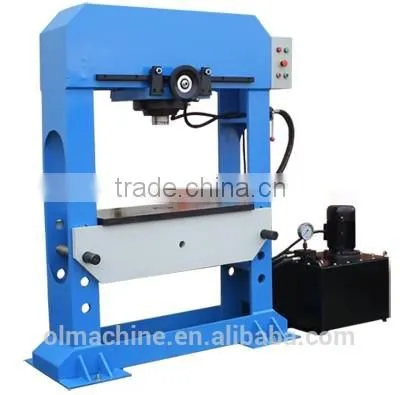

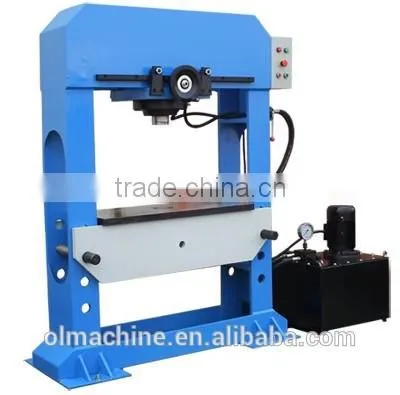

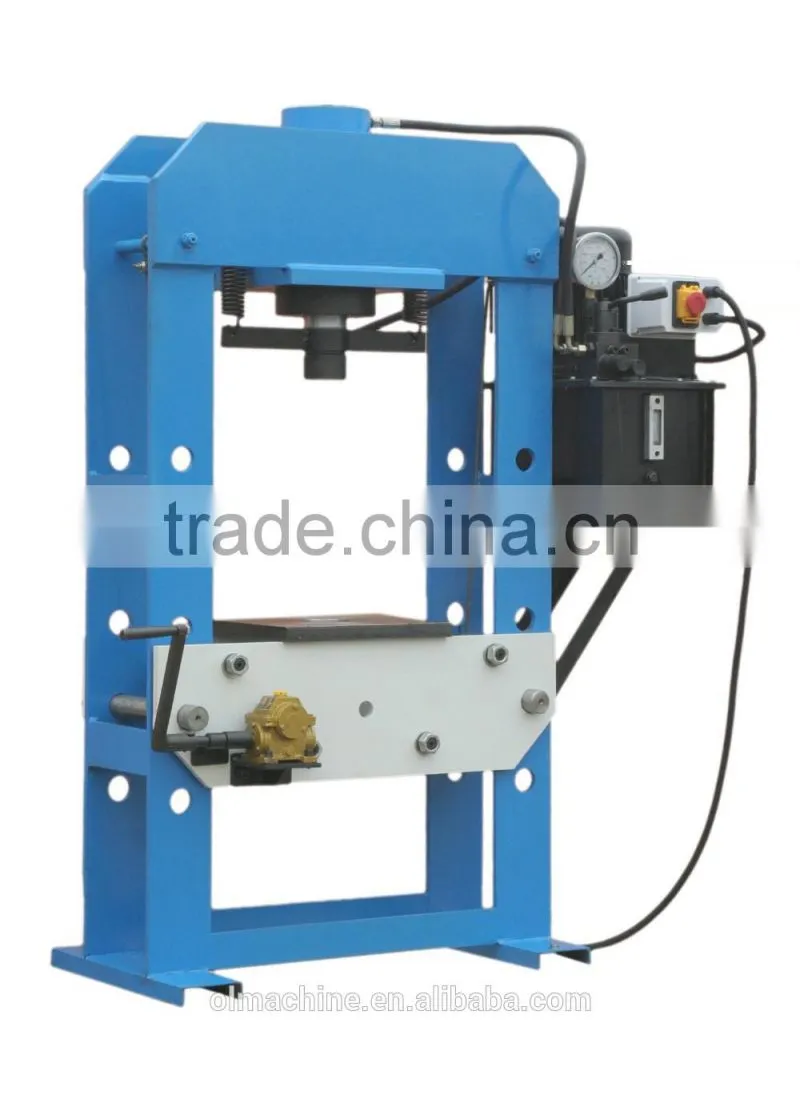

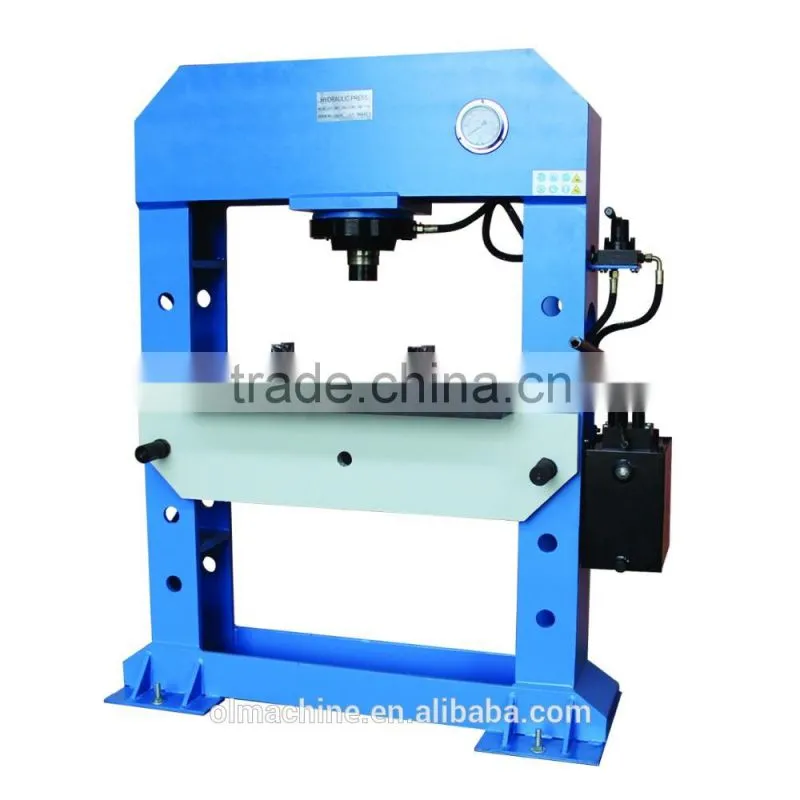

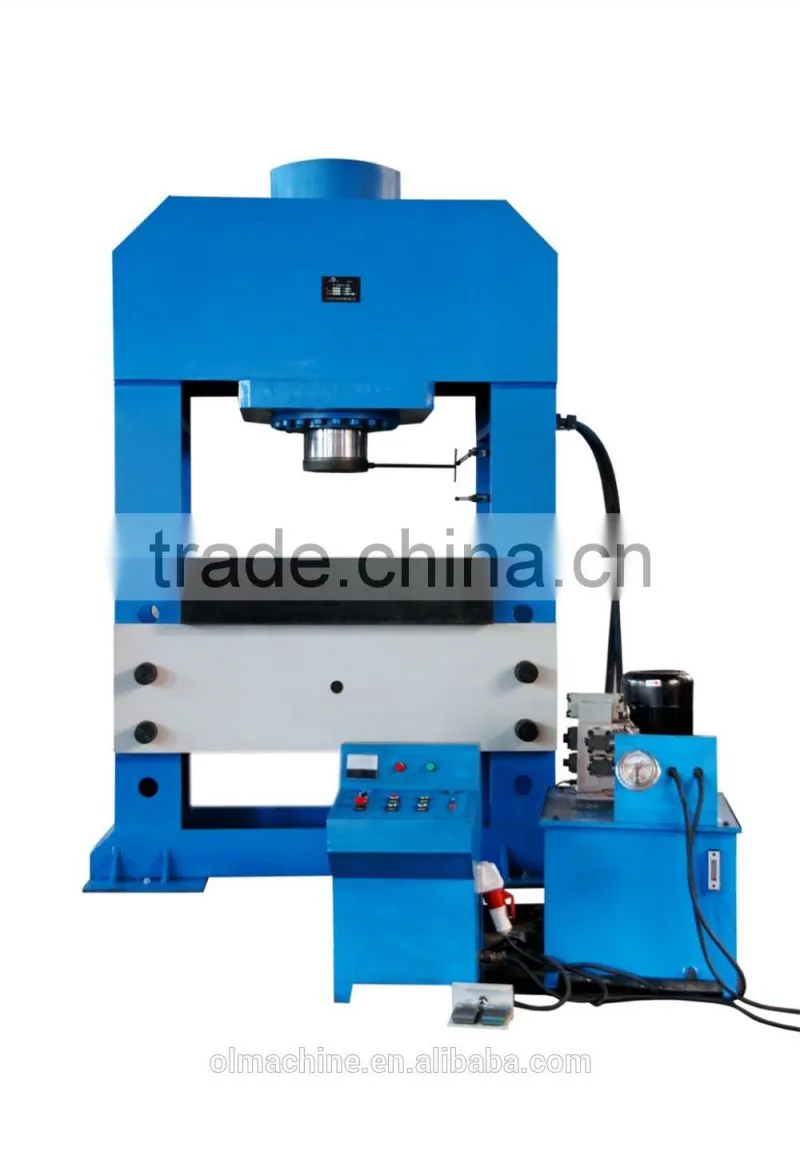

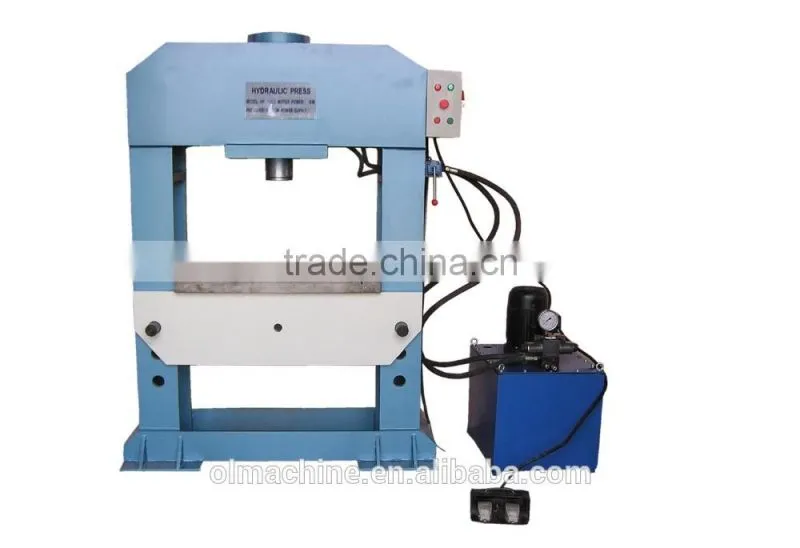

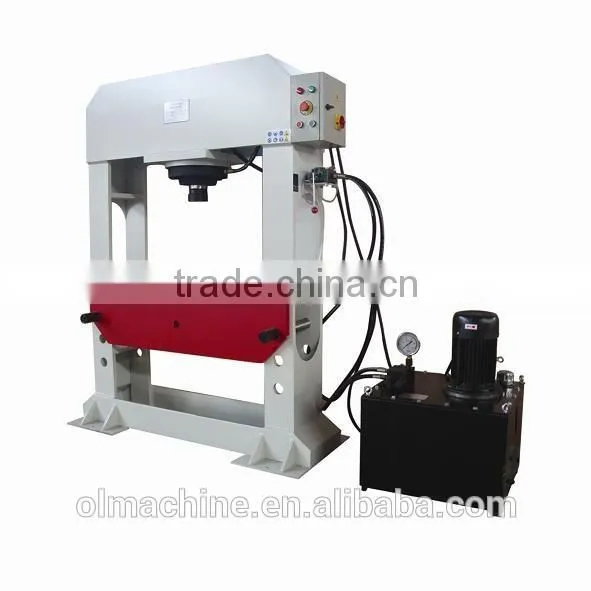

Hydraulic press 30 50 63 100 150 200 250 300 400 500t
- 0 per Month
You May Like
Product Details
| Condition | New | CNC or Not | Normal | |
| Certification | CE ISO |
Product Description

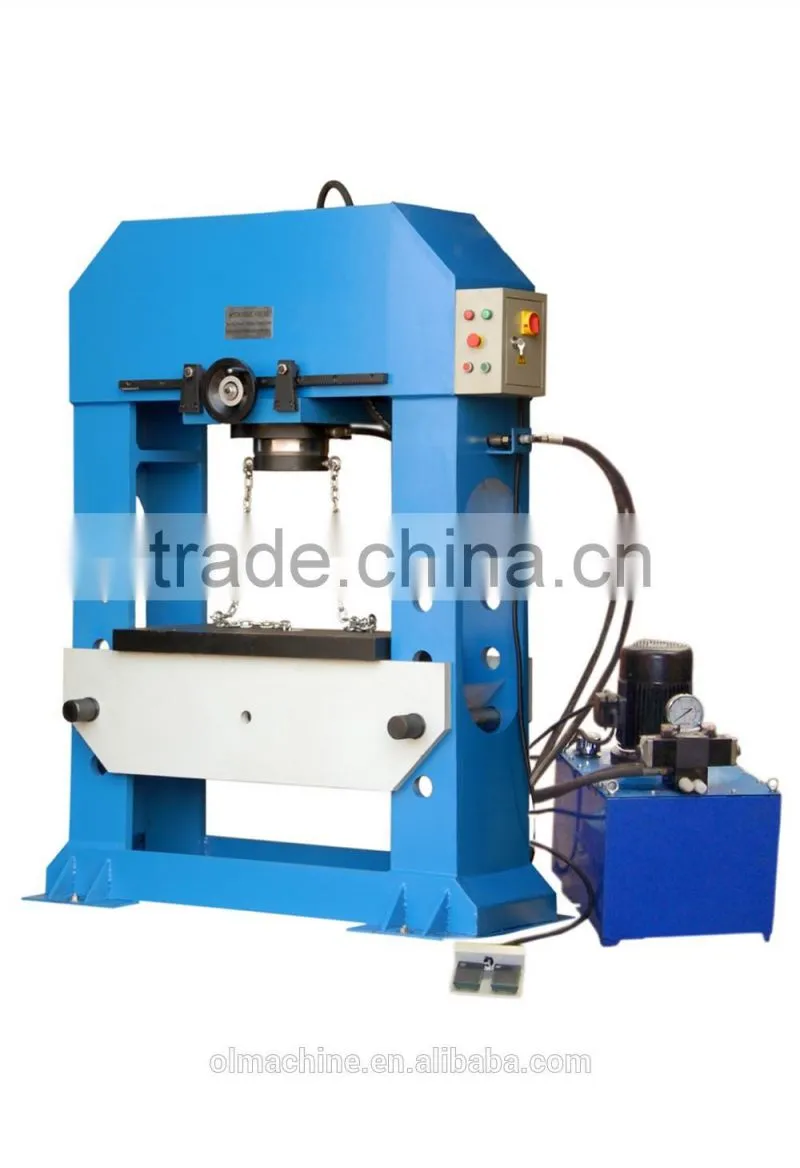

Hydraulic Press (HP model), Hydraulic Press with bending function (HPB model)
MODEL | HP-30 HPB-30 | HP-50 HPB-50 | HP-63 HPB-63 | HP-100 HPB-100 | HP-150 HPB-150 |
CAPACITY(KN) | 300 | 500 | 630 | 1000 | 1500 |
PRESSURE(MPa) | 25 | 25 | 30 | 30 | 42 |
TRAVEL (mm) | 300+270 | 220+405 | 220+405 | 250+405 | 250+405 |
TALE SIZE( mm) | 300*400 | 400*800 | 400*800 | 460*980 | 460*980 |
DIMENSION(mm) | 1160*550*1600 | 1500*650*1950 | 1500*650*1950 | 1840*750*2250 | 1840*750*2250 |
|
|
|
| 730*630*960 | 730*630*960 |
WEITHT (KG) | 420/650 | 980/1100 | 1020/1500 | 1220/1420 | 1350/1750 |
MODEL | HP-200 HPB-200 | HP-300 HPB-300 | HP-400 HPB-400 | HP-500 HPB-500 | HP-250 HPB-250 |
CAPACITY(KN) | 2000 | 3000 | 4000 | 5000 | 2500 |
PRESSURE(MPa) | 40 | 42 | 42 | 45 | 40 |
TRAVEL (mm) | 300+405 | 300+405 | 300+405 | 300+405 | 300+405 |
TALE SIZE( mm) | 500*1000 | 700*1200 | 900*1200 | 900*1200 | 1000*600 |
DIMENSION(mm) | 1940*950*2350 | 2100*950*2700 | 2300*1000*2900 | 2300*1000*2900 | 1950*950*2400 |
| 900*800*1060 | 1100*1200*1350 | 1100*1200*1350 | 1100*1200*1350 | 900*800*1060 |
WEITHT (KG) | 2200/2400 | 4200 | 5500 | 6500 | 3200 |
