Drilling and Milling Machine, Table 1120x260 1120X280mm, Drilling Dia 50mm, Vertical Milling Dia 25mm
You May Like
-
Universal Drilling and Milling Machine, Table 1120x260 1270X320mm, Drill Dia 50mm, Vertical Mill Dia 25mm, End Mill Width 125mm
-
Drilling and Milling Machine XZ5150, Table 1220x360mm, Drilling Dia 50mm, Vertical Milling Dia 32mm, End Milling Width 125mm
-
Drilling and Milling Machine ZAY Sery, With Dia 20 25 32 40 45 50mm
-
Vertical Drilling Machine Z Sery, With Dia. 32 40 45mm
-
ZN Sery Bench Drilling Machine and Column Type Vertical Drilling Machine, With Dia. 25 30 32 35 40 50mm
-
ZY Column Type Vertical Drilling and Milling Machine, With Dia. 30 35 40 50mm
Product Details
| Condition | New | CNC or Not | Normal | |
| Model Number | XZ6350A XZ6350Z XZ6350ZB XZX6350C | Certification | CE ISO |
Product Description

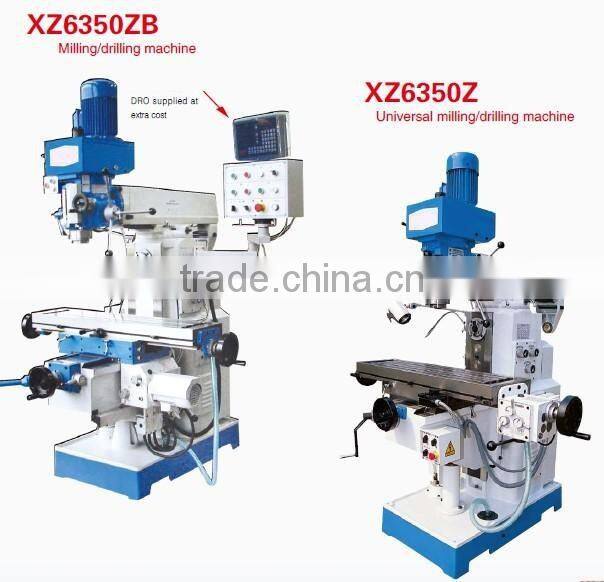

Specifications | Units | XZ6350Z | XZ6350ZB |
Table size | mm | 1120×260 | 1120×260 |
Table travel | mm | 600×300 | 600×270 |
Spindle taper |
| ISO40 | ISO40 |
Max. drilling dia. | mm | 50 | 50 |
Automatic drilling dia. | mm | 14( cast iron) | 14 |
Max. vertical milling dia. | rpm | 25 | 25 |
Distance between spindle nose and table surface | mm | 100-400 | 100-400 |
Spindle speed range | rpm | 90-2000(V)/38-1310(H) | 90-2000(V)/38-1310(H) |
Spindle travel | mm | 120 | 120 |
Overall dimension | mm | 1520×1285×2150 | 1520×1290×2150 |
Spindle motor power | kW | 2.2 | 2.2 |
Machine weight | kg | 1350 | 1400 |

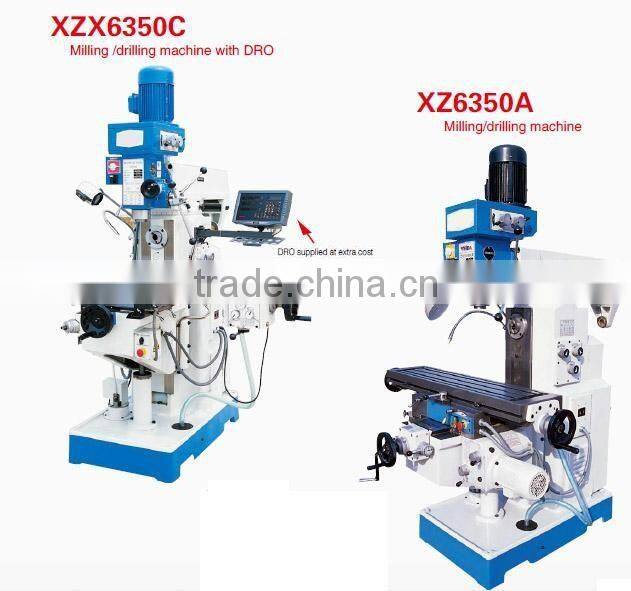

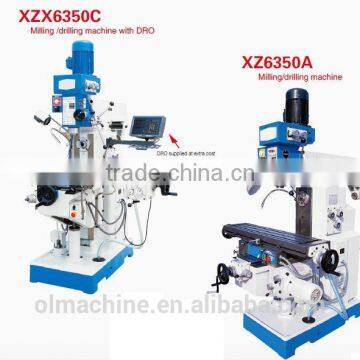

Specifications | Units | XZX6350C | XZ6350A |
Table size | mm | 1120×280 | 1120×260 |
Table travel | mm | 600×230 | 600×270 |
Distance from spindle nose to table surface | mm | 110-470 | 100-400 |
Max. drilling dia. | mm | 50 | 50 |
Max. end milling width | mm | 100 | 100 |
Max. vertical milling dia. | mm | 25 | 25 |
Max. tapping dia. | mm | M16 | M16 |
Spindle speed range | rpm | 115-1750(V)/38-1310(H) | 115-1750(V)/38-1310(H) |
Spindle travel | mm | 120 | 120 |
Overall dimension | mm | 1580×1330×2250 | 1655×1450×2150 |
Spindle motor power | kW | 0.85/1.5(V)/2.2(H) | 0.85/1.5V 2.2H |
Machine weight | kg | 1350 | 1500 |
