Professional CCTV Keyboard Multi function Controller RS485 PTZ Camera LCD Display CCTV Controller

FOB Price

USD $125 - $128 / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	OEM
Model Number	ET-781CL

Professional CCTV Keyboard Multi function Controller RS485 PTZ Camera LCD Display CCTV Controller

RS485 Bus Line, and a keyboard can connect 31 domes at most in the,direct control mode

Can be compatible with all kinds of protocols

Can control the Iris Focus and Zoom

Can set and call the preset, run the scanning the pattern and the tour

Can control the matrix and through which can control the dome indirectly

Equipped with the 3D Joystick and a LCD screen

Model: ET-781CL

Communication Mode: RS485×1,RS422×1,IR function

Communication Frequence: 2400,4800,9600,19200bps

Communication Interface: RS485,RS442 function1.2Km

Protocol: Pelco-P/Pelco-D/HCDVR/DH

Screen: 3.5" Digital LCD Monitor

Operation Temperature: -10℃~+50℃

Humidities: <90%

Operation Voltage: DC 12V ±10%

Operation Consumption: 250mA

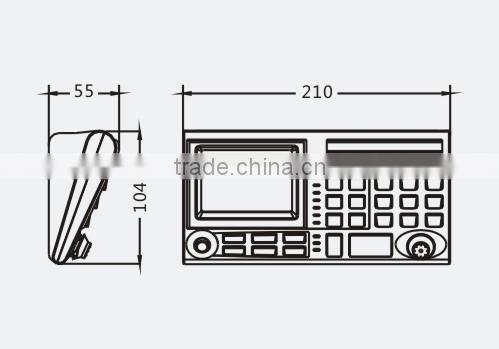

Measure: L210*W104*H55(mm)

Weight: 365g

Material: ABS Plastic Cover
