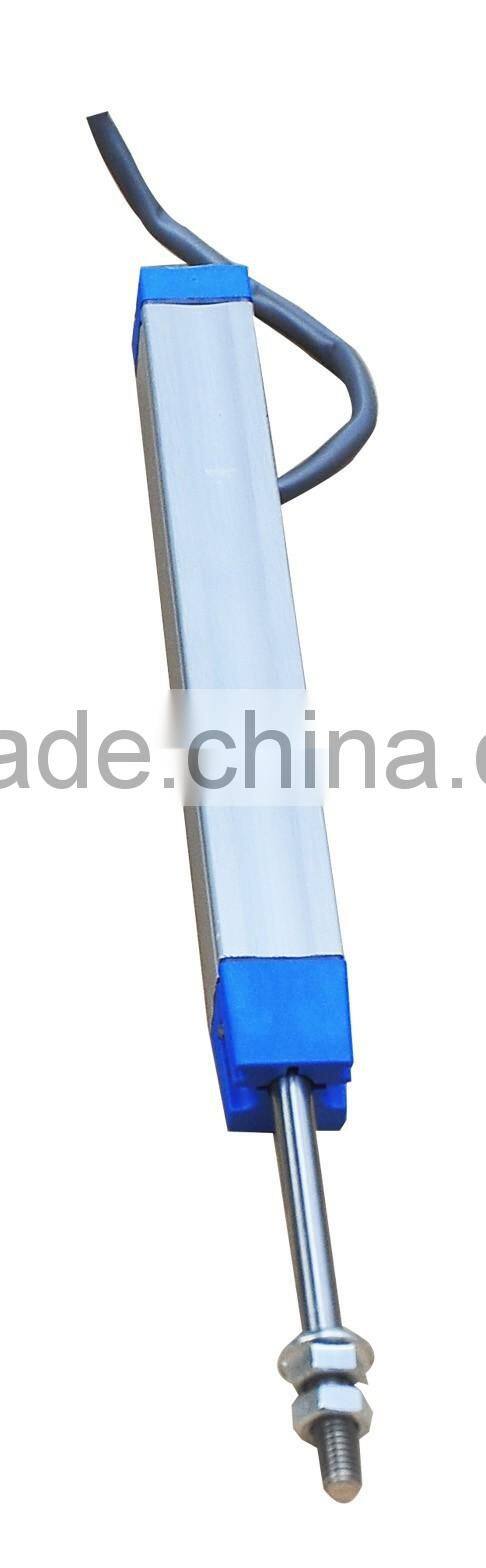

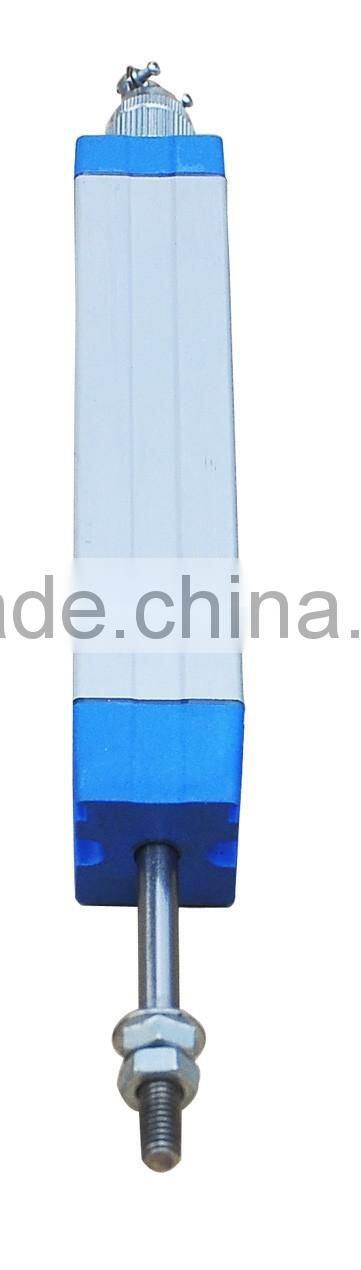

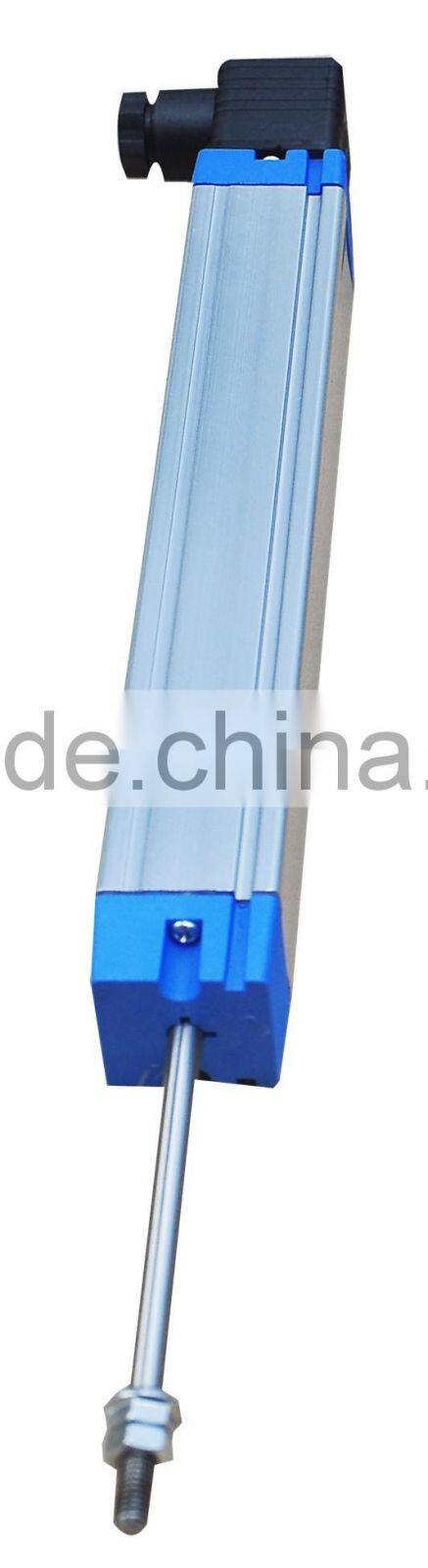

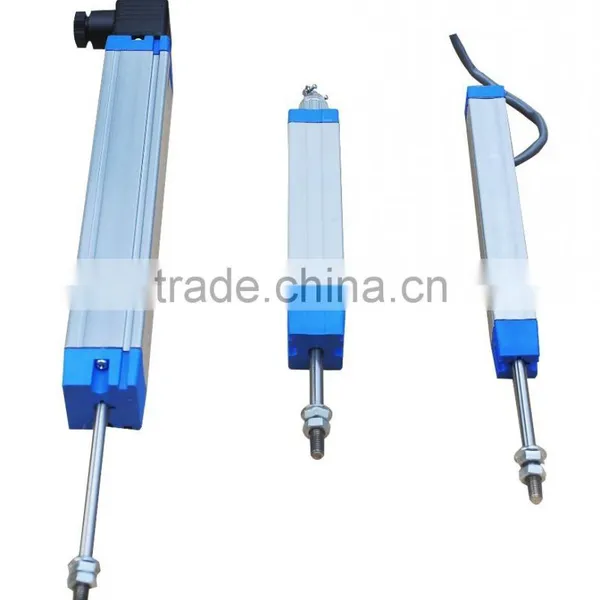

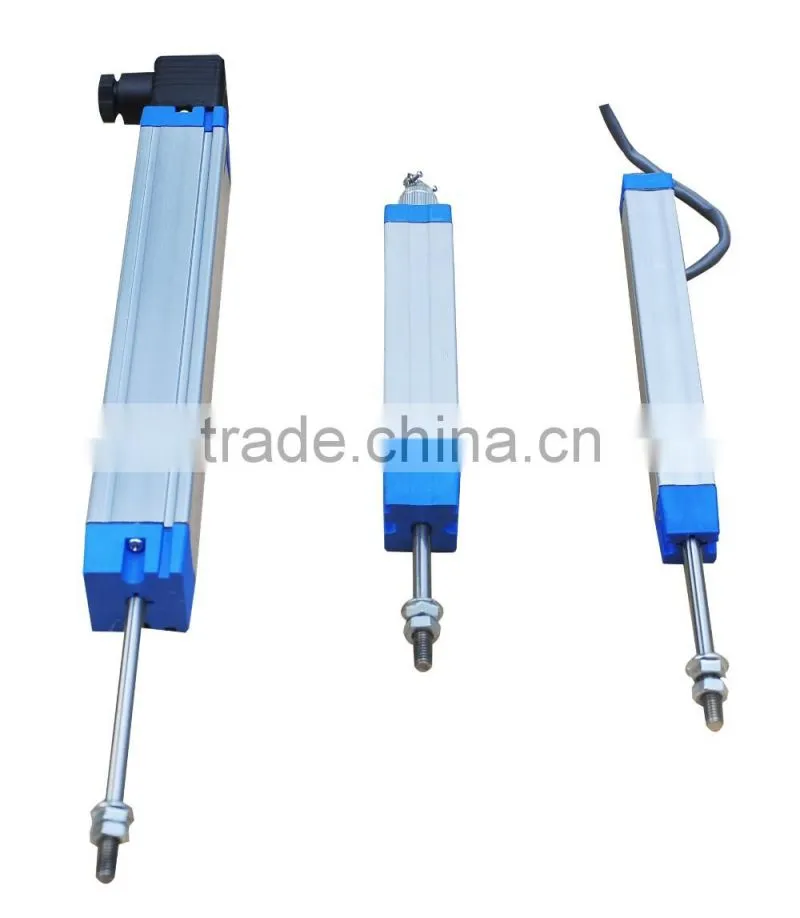

Linear Potentiometric
WDC Linear sensors are the devices capable of high-resolution measurement of the position or change of position of any conductive target. they are used in a wide variety of applications including semiconductor processing, assembly of precision equipment such as disk drives, precision thickness measurements, machine tool metrology and assembly line testing. These types of sensors can be found in machining and manufacturing facilities around the world.
FEATURES:
- Stocked from 25 - 1500mm
- Theoretical infinite Resolution
- 1 X 106 movements
- Careful selection of the materials and high-quality components used in WDC series ensure consistent measurement reliable operation
TECHNICAL DATA
Useful electrical stroke: | 25 - 1500mm |
Theoretical electrical stroke: | 10 - 1520mm |
Mechanical stroke: | TES+8 +/-2 |
Available resistance values: | 1, 2, 3, 5, 10 KΩ |
Independent linearity: | ± 0.02% - 0.20% |
Resolution: | Theoretical infinite |
Repeatibility: | 0.05 mm |
Tolerance on resistance: | +/-15% |
Displacement force: | < 5 N |
Rated power: | <3 W |
Temperature Coefficient | <+/-400 ppm/0C |
Insulation resistance: | >500 MΩ |
Dielectric strength: | >500V (AC RMS) 1 min |
Working Temperature: | -55 - +1000 |
Life: | 1 X 106 |
Mounting method: | Brackets with variable longitudinal axis with M6 screw |
Please contact us for the products details, thanks.
