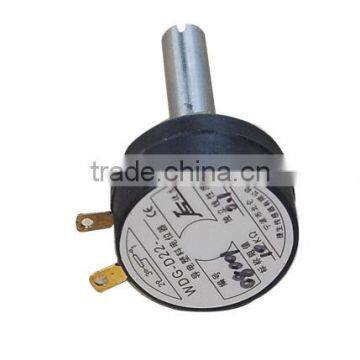

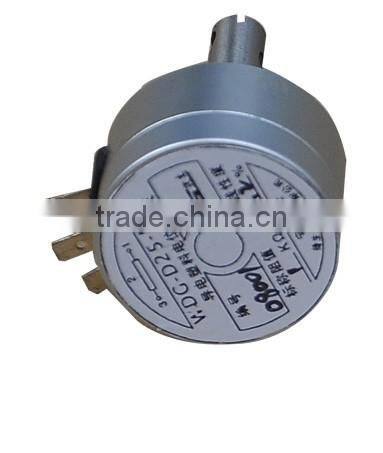

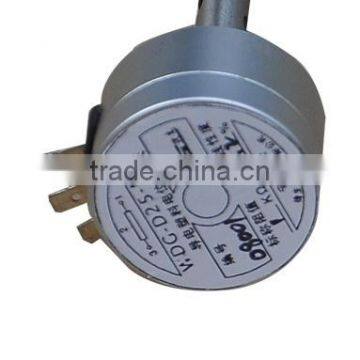

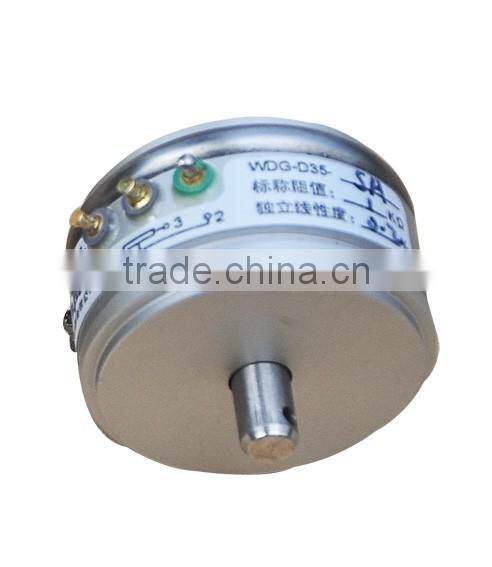

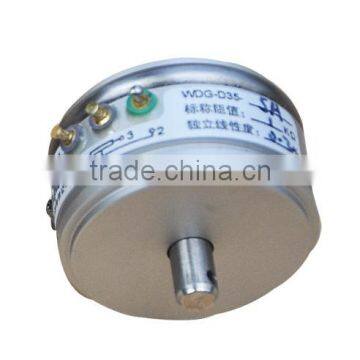

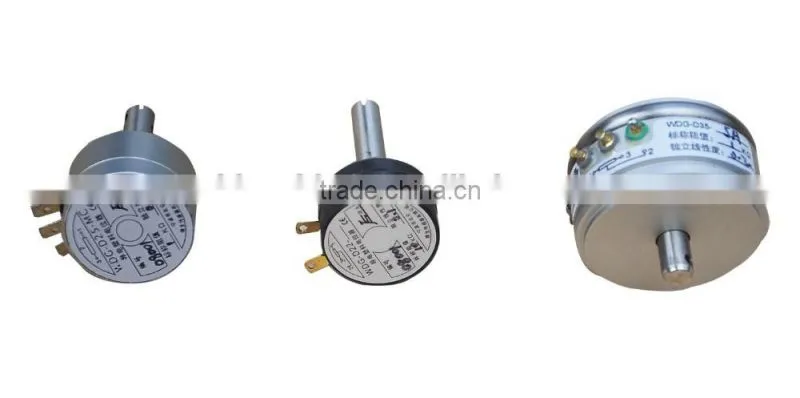

Displacement Sensors
Rotary Potentiometic
WDG series rotary Sensors are electro-mechanical devices that convert the angular position a shaft to an analog or digital code, they are used for feedback on angle, and used in many applications that require precise shaft unlimited rotation including industrial controls, robotics, special purpose photographic lenses, computer input devices, controlled stress rheometers, and rotating radar platforms.
FEATURES:
- 345o measurement
- Rotation up to 150 RPM
- Independent linearity to 1%
- Lifetime up to 50 x 106
- SS shaft
TECHNICAL DATA
Useful electrical stroke: | 450, 950, 1200, 1800, 3450 +/-20 | ||
Theoretical electrical stroke: | UES + 30 | ||
Available resistance values: | 0.25, 0.50,1, 2, 3, 5, 10 KΩ | ||
Independent linearity: | <1% | ||
Resolution: | Theoretical infinite | ||
Vibrations: | 10-2000Hz, Amax =1.52 mm amax. = 15 g | ||
Tolerance on resistance: | +/-15% | ||
Maximum cursor current: | 2mA | ||
Rated power: | <2 W | ||
Insulation resistance: | >1000 MΩ | ||
Dielectric strength: | >500V (AC RMS) 1 min | ||
Working Temperature: | -55 - +1000 | ||
Life: | 10 X 100 |
|
|
Case material: | Aluminum anodized, |
|
|
Shaft material: | Sstainless steel |
|
|
Bearings: | Stainless steel ball bearings |
| |
