12V or 24V Solar Powered Flashing LED Light Traffic Road Arrow Sign Traffic Warning Arrow Board Trailer

Product Description

Arrow boards direct traffic by flashing a brightly lit arrow pattern on a large, highly visible display panel. Truck-Mount Arrow Boards provide an obvious solution for convoys, crash-cushion (TMA) trucks and emergency repair crews. Installed over the cab or in a truck bed, power is provided by the truck's power system. Arrows and other patterns are selected by the user using the arrow board controls inside the truck cab.

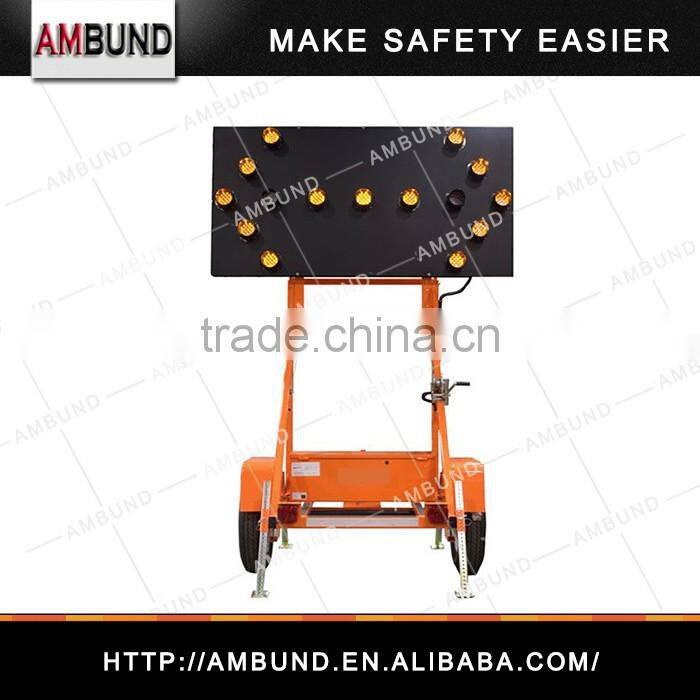

TRAILER FOR ARROW BOARD

INTRODUCTION OF TRAILER

•Trailer is wind- loading approved,and heavy duty standard couplings allows it to be towed by most vehicles.

•Width 1. 65 meters. Available for Austrian standard SIZE A and MUTCD standard TYPE B & TYPE C.

•Lifting system allows one person to easily raise / lower the board by 1200LBS Hand Winch from 260CM to 350CM.

•Solar panels rotates 180 degrees for optimal positioning to be recharged.

•Display board rotates 360 degrees for positioning without moving trailer.

•Hot- galvanized steel structure, anti- corrosion for 20+ years.

•Transportation : STARS PLASTIC sends all separated parts and accessories of the trailer.

  It's easily assembled by customer

MUTCD STANDARD TYPES

Following 4 different sizes are optional, meet MUTCD standard, suitable for market of American, Canada, etc.

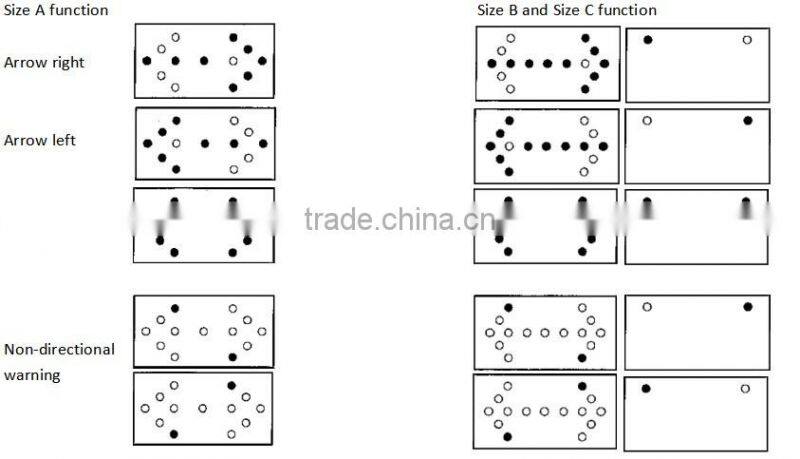

All arrow board can display any of <A,B,C,D> 5 patterns; 15- and 25-elements sign can display <E> 2 patterns;

25- elements arrow boards can display <F,G,H> 5 patterns

Following 3 different sizes are optional, meet AS 4192-2006 standard, suitable for market of Australian market.

  Flashing modes
