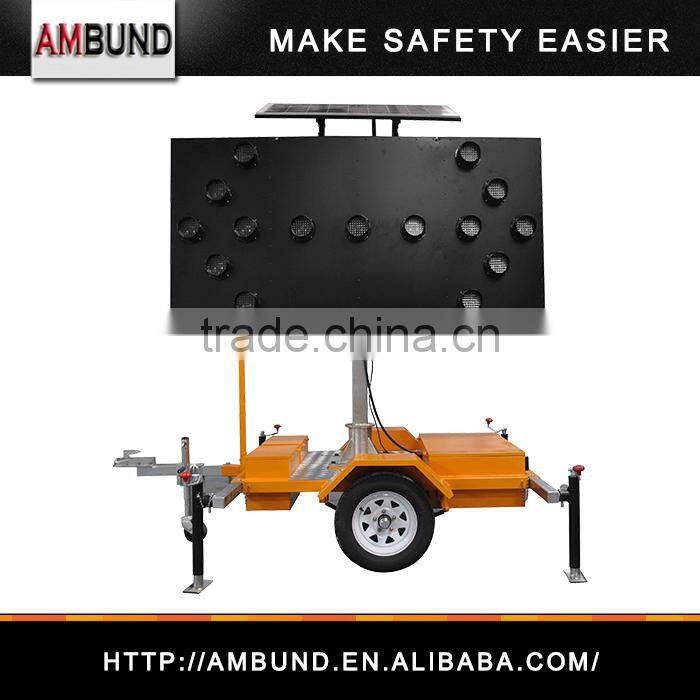

Solar LED Trailer Mounted Arrow Boards by Manufacture

Name: Solar LED Trailer Mounted Arrow Boards by Manufacture
Brand: AMBUND
SKU: 143640290
Availability: InStock

US$ 400 - 2,400 MOQ: 1 Piece

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

AMBUND

Model Number:

HL-TR-S

Taizhou Ambund Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name AMBUND

Model Number HL-TR-S

Solar LED Trailer Mounted Arrow Boards by manufacture

Product Specificatio

DESCRIPTION

Standard	MUTCD standard / AS 4192-2006 standard Single sided Double sided types are available
Arrow board material	Aluminum sheet and welded channels
Coating	Powder-coated and oven-baked, UV Resistance
Lamp	Smaller PAR36 lamp with 50pcs LED / Larger PAR 46 lamp with 40pcs LED, IP68 sealed waterproof
Visor	High-impact ABS plastic , enhance visibility by shading the lamp and preventing glare
Digital controller	With adjustable pedestal, shows the board’s working mode
Voltage	DC 12V standard ( DC 24V customized)
Auto Dimming	Built- in standard function
Truck mounted	Available for A size and B size: 1. Manual operated is available; 2. Power operated with LINAK actuator is available with Standard frame( Heavy Duty frame is available for MUTCD type B boards)
Trailer mounted	Available for C size: 1.Manual winch trailer is available 2.Hydraulic lift trailer is available
Cable length	1.30ft.(9m) standard for truck mounted type A size and B size; 2.10ft. ( 3m) standard for trailer mounted type C size; 3.Customized length is available.
Connection	Screw-type locking collar secures plug-in cable socket to control box, totally waterproof
Maintainance	All electrical parts are plug mounted, easily to be replace within some minutes
Warranty	One year warranty and two sets of lamp+ visor as replacements for free

Product Specificatio

AUSTRALIAN ARROW BOARD STANDARD TYPES

Following 3 different sizes are optional, meet AS 4192-2006 standard, suitable for market of Australian market.

Type	Minimum Sign size (mm)	Lamp quantity	Lamp type	Viewing distance(m)
A	650x1260	13pcs	PAR36 / PAR46	800
B	770x1500	15pcs	PAR36	1200
C	1200x2400	15pcs	PAT46	1600
*For trailer-mounted signs,2pcs additional elements are located on the rear face of the sign.

Operation

High-output amber LEDs
Selection of arrow and other display patterns
Easy to operate and maintain
Heavy-duty hand-winch with safety brake allows one person to raise board
Single locking device holds arrow board in place while operating and during transport
Controller located safely away from traffic
Weather-resistant control box cover has lockable slam-latch
Control box outputs have short-circuit protection, helping prevent blown transistors
Arrow display has automatic dimming
Stabilizer legs raise tires off the ground to provide stability in high wind
Meets AS4192-2006

Flashing modes

Power system

Energy-efficient operation results in long run times
Solar panels charge batteries automatically without intervention
System disconnects solar charging system from batteries when they are fully charged, preventing over-charging and damage to batteries
Unique system allows battery charging with solar panels or commercial power
Power system includes reverse polarity protection and low-voltage disconnect circuit
Controller has resettable fuses
Solar charging system features solid state voltage regulator with charge indicator

Maintenance

Maintenance-free batteries
Durable powder-coat finish resists the elements
In travel position, unique design supports board without rear braces, reducing possibility of damage during transport or storage
Lamps and visors are easily replaced
Standard trailer tires
Heavy-duty bolt-on steel fenders can be replaced if damaged
